Schneider Electric LV848213 MasterPact MTZ2/3 MCH Motor Mechanism 250-277V Air Circuit Breaker Accessory

% $-487.05

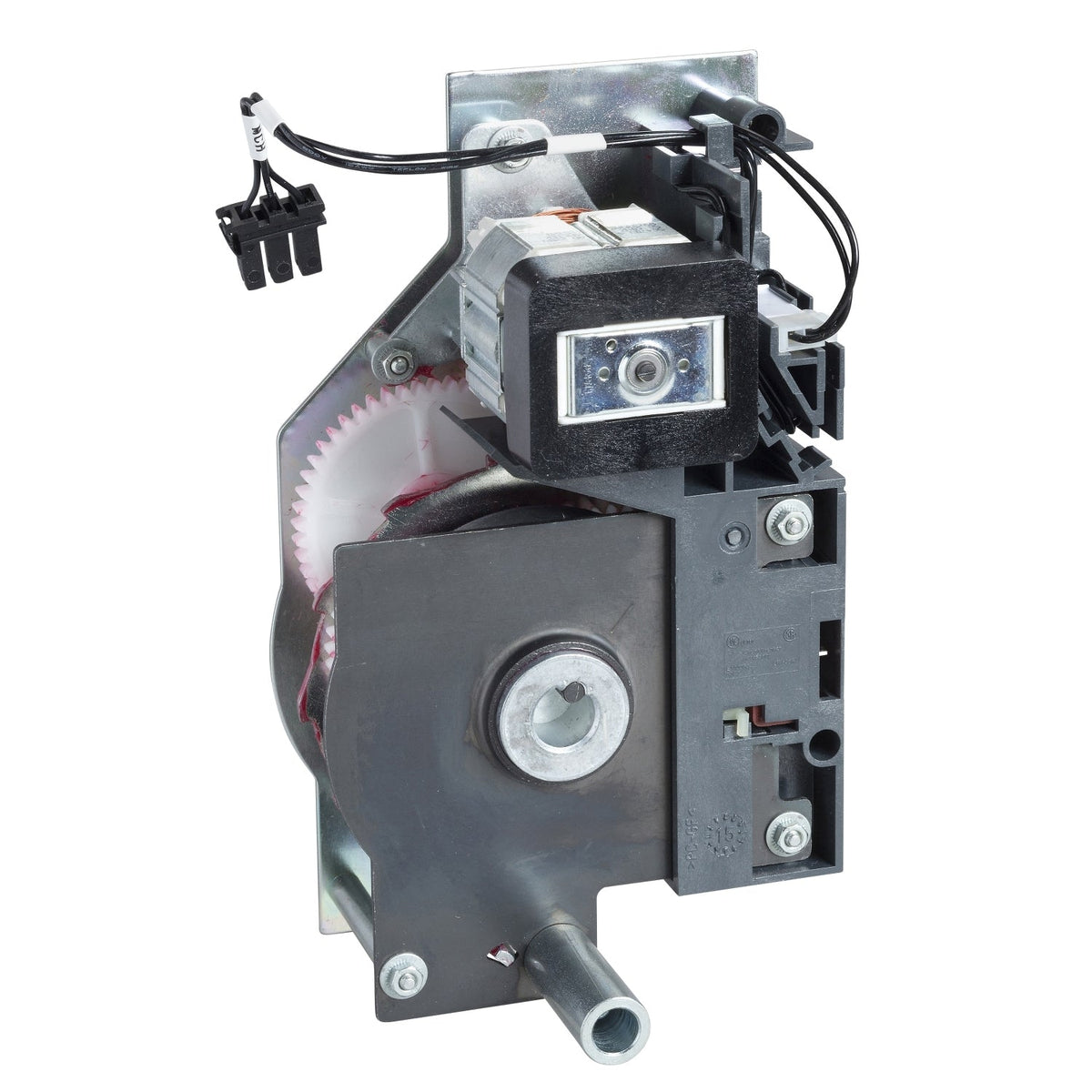

Schneider Electric LV848213 MCH motor mechanism – MTZ2/MTZ3 250-277 V AC
Schneider Electric LV848213 MCH motor mechanism – MTZ2/MTZ3 250-277 V AC

Schneider Electric LV848213 MasterPact MTZ2/3 MCH Motor Mechanism 250-277V Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV848213
Catalog No: LV848213
Tariff Code (HS): 853890
Rated Voltage: 250-277 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$487.05

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV848213 is an MCH electric motor mechanism for fixed MasterPact MTZ2 and MTZ3 air circuit breakers, built for remote operation on a 250-277 V AC 50/60 Hz control supply. It charges the breaker's closing springs in 4 s or less, enabling remote closing without a manual handle.

Technical Specifications

Reference LV848213
Brand Schneider Electric
Range MasterPact
Device short name MCH
Product or Component Type Motor mechanism
Range compatibility MasterPact MTZ2, MTZ3
Control Type / Mounting Mode Standard / Fixed
[Uc] control circuit voltage 250-277 V AC 50/60 Hz
Threshold tripping voltage / Overcurrent protection 0.85-1.1 Un / 2-3 x In, 0.1 s
Maximum power consumption 180 VA
Maximum charging time / operating frequency 4 s / <= 3 cycles per minute
Provided contact Limit switch contact, 240 V, 10 A

Selection Notes

The LV848213 covers the 250-277 V AC control band for new MasterPact MTZ2/MTZ3 builds, the top end of the three factory-fit MCH options alongside the 100-130 V LV848211 and 200-240 V LV848212. It is the new-build equivalent of the LV847895SP spare part. Fixed mounting only, with the same 4 s charging time and 240 V, 10 A limit switch contact as the rest of the family. Overcurrent protection at 2-3 x In within 0.1 s disconnects the motor circuit quickly if it stalls mid-charge. All three voltage options share the same 4 s charging time and mounting footprint.

Technical Details

Short Description
MCH electric motor mechanism, fixed MasterPact MTZ2/MTZ3, 250-277 V AC remote operation.
Rated Voltage (VAC)
250-277 V AC
Mounting Type
Fixed
Catalog No
LV848213
Delivery Date (Days)
30 days
Model Number
MCH
Tariff Code
853890
