Schneider Electric LV947363 MasterPacT MTZ Active MX Opening Release 200-250V Air Circuit Breaker Accessory

% $-121.30
Schneider Electric LV947363 MX opening voltage release – MTZ Active 200-250 V AC/DC
Schneider Electric LV947363 MX opening voltage release – MTZ Active 200-250 V AC/DC

Schneider Electric LV947363 MasterPacT MTZ Active MX Opening Release 200-250V Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV947363
Catalog No: LV947363
Tariff Code (HS): 853890
Rated Voltage: 200-250 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$121.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

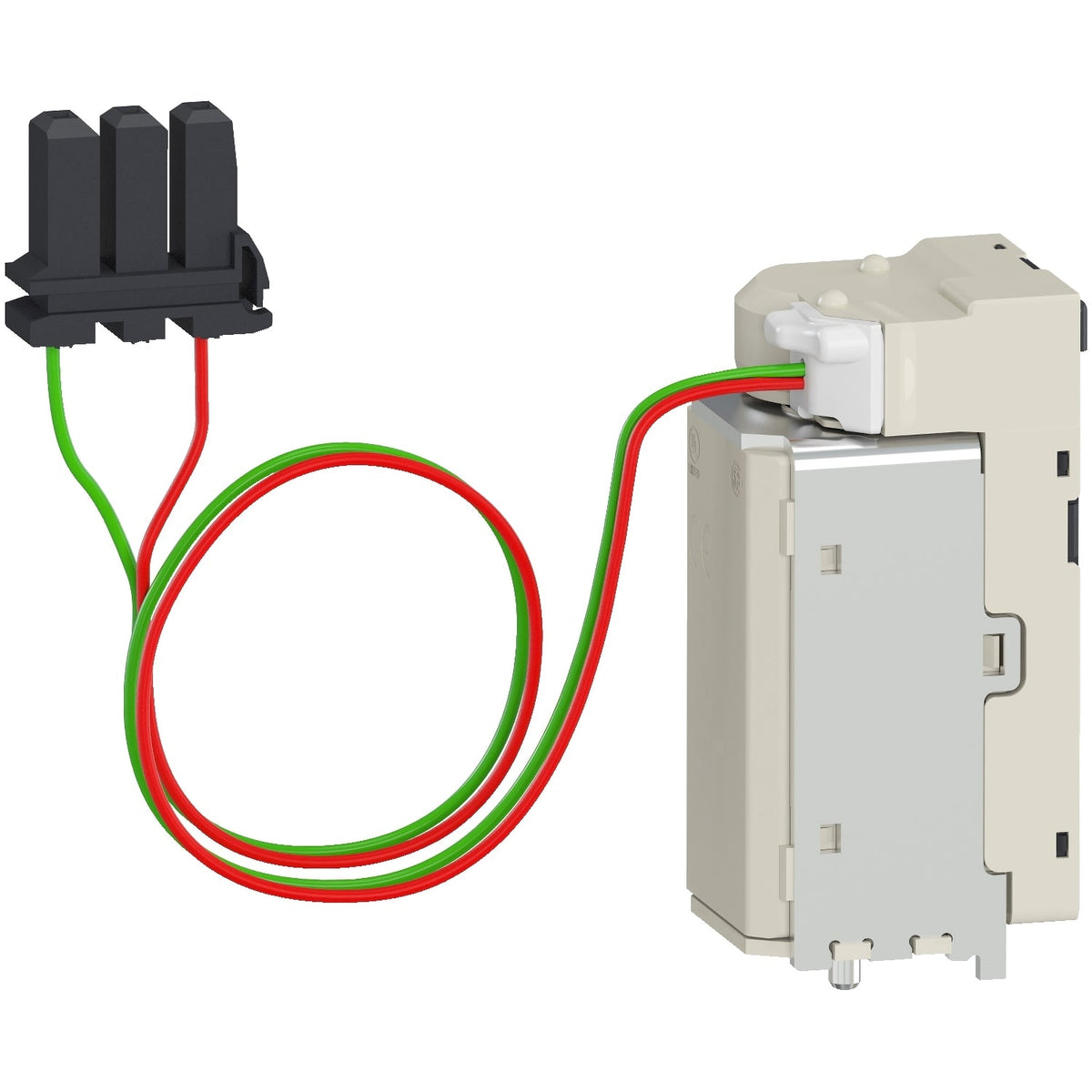

The Schneider Electric LV947363 is an MX opening coil for fixed MasterPacT MTZ1 and MTZ2 Active circuit breakers fitted with the MicroLogic Active control unit, supplied for 200-250 V AC 50/60 Hz or 200-250 V DC. Energizing the coil trips the breaker open within 60 ms once voltage reaches 0.7-1.1 Un.

Technical Specifications

Reference LV947363
Brand Schneider Electric
Range MasterPacT
Device short name MX
Product or Component Type Voltage release
Device Application Control
Range compatibility MasterPacT MTZ1, MTZ2 Active circuit breaker
Voltage release type Opening coil
Control Type Standard
[Un] voltage power supply 200-250 V AC 50/60 Hz, 200-250 V DC
Threshold tripping voltage 0.7-1.1 Un on opening
Holding power consumption 4.5 W
Circuit breaker mounting mode Fixed
Maximum response time 60 ms on MTZ1, MTZ2, and MTZ3 opening
Number of units in package 1

Selection Notes

Specify the LV947363 when the shunt-trip circuit is wired for 200-250 V AC or DC instead of the 100-130 V band covered by the LV947362; both are limited to MTZ1 and MTZ2 Active frames, with no MTZ3 Active variant listed for the MX coil. The 60 ms opening response is the same across the family, so it can be treated as a fixed delay in a protection-relay coordination study regardless of which voltage variant is fitted. It ships one piece per package, matching how the rest of the MasterPacT Active coil family is sold.

Technical Details

Short Description
MX opening voltage release, fixed MasterPacT MTZ1/MTZ2 Active, 200-250 V AC/DC.
Rated Voltage (VAC)
200-250 V AC
Mounting Type
Fixed
Catalog No
LV947363
Delivery Date (Days)
30 days
Model Number
MX
Tariff Code
853890

Downloads

Customers say

Pairs well with

Related products
