Part number
2CDS254001R0804
Model no
S204-C80
$142.67 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

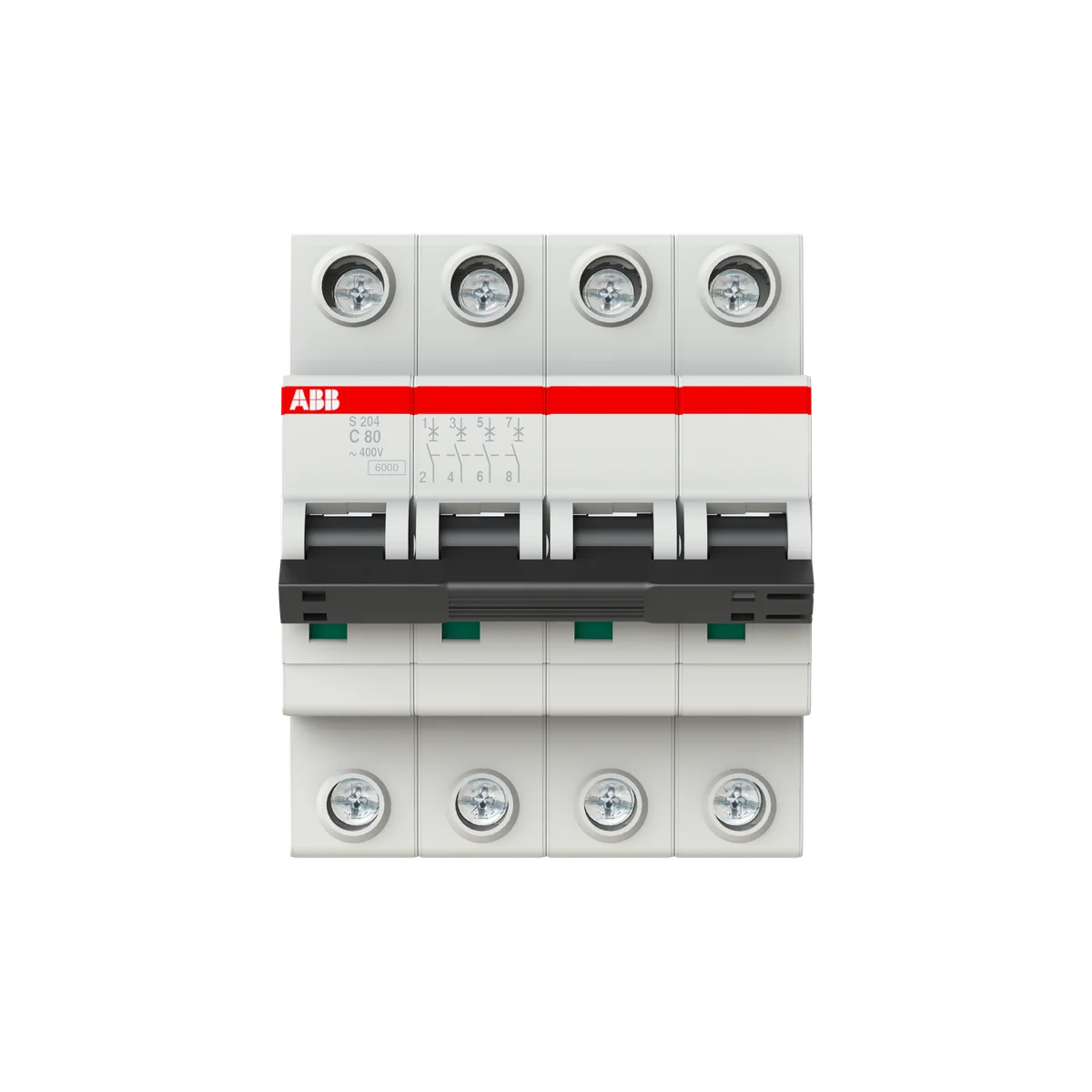

ABB 2CDS254001R0804 S204-C80 4P 80A 6kA Curve-C DIN Rail Miniature Circuit Breaker

Rated current
80 A
Rated operational voltage
400 V AC
Poles
4P
Breaking capacity
(230) 20 kA
EAN
4016779916424
Other ratings in ABB S200 All 15 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
40 2CDS254001R0404 In stock $46.39
50 2CDS254001R0504 In stock $53.50
63 2CDS254001R0634 In stock $60.64
80 2CDS254001R0804This part In stock $142.67
100 2CDS254001R0824 In stock $178.32
Description

About the S204-C80

The ABB S204-C80 miniature circuit breaker (SKU: 2CDS254001R0804) is a 4-pole, 80 A, Curve-C MCB from the S200 series, rated at 400 V AC with a breaking capacity of 6 kA — engineered for reliable overcurrent and short-circuit protection in industrial control panels, commercial distribution boards, and building automation systems. The S204-C80 mounts on standard DIN rail (acc. to DIN 43880) and offers consistent, code-compliant protection across all four poles simultaneously, making it an ideal choice for three-phase plus neutral circuits in demanding electrical installations.

Certifications & Standards

  • IEC 60898-1: Household and similar installations — circuit breakers for overcurrent protection
  • IEC 60947-2: Low-voltage switchgear and controlgear — circuit breakers
  • IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
  • EN 60898-1: European harmonised standard for circuit breakers in household/similar installations
  • IEC/EN 60898-1: Combined IEC/EN certification for miniature circuit breakers
  • IEC/EN 60947-2: Combined IEC/EN certification for low-voltage circuit breakers
  • IEC 60898: General series standard for circuit breakers
  • IEC 60947: General series standard for low-voltage switchgear and controlgear
  • IEC 60068-2: Environmental testing — climatic and mechanical durability
  • IEC 60715: Dimensions of low-voltage switchgear and controlgear — DIN rail mounting
  • EN 60664: Insulation coordination for equipment in low-voltage systems (European standard)
  • EN 60947-2: European standard for low-voltage circuit breakers
  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — meets Great Britain market conformity requirements
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals compliance
  • WEEE: Waste Electrical and Electronic Equipment Directive — responsible end-of-life disposal
Specification

Full specification

76 values · Last verified 30 Oct 2026

Technical 20

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 20 kA, (400 V AC) 6 kA, (400 V) 6 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (400 V AC) 6 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 4
Number of Poles 4P
Tightening Torque 3 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 16/16 mm², Conductor 2.5 ... 50 mm², Flexible 4 ... 35 mm², Rigid 2.5 ... 50 mm², Stranded 2.5 ... 50 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 11

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 400 V AC
Operational Voltage Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC
Rated Current (In) 80 A
Rated Short-Circuit Capacity (AC) 6 kA, (DC) 6 kA, (230 / 400 V AC) 6 kA, (230 V AC) 6 kA, (400 V AC) 6 kA, (400 V) 6 kA
Rated Frequency (f) 50 / 60 Hz
Power Loss 8.1 W, at Rated Operating Conditions per Pole 8.1 W
Overvoltage Category III

Design 1

Housing Material Insulation Group I, RAL 7035
Show all 76 specifications ↓ Show less ↑44 more values in Identification, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS254001R0804
Type designation S204-C80
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779916424
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 1 piece
Package Level 1 Gross Weight 0.58 kg
E-Number (Sweden) 2100287

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 6

Width in Number of Modular Spacings 4
Product Net Width 70 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.48 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC185394_EPLAN

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, IEC/EN 60947-2
Certification Agency EN, IEC
Standardization Body EN, IEC

Logistics 4

Shipping weight 16.0 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS254001R0804

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 15 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
20 A 2CDS254001R0204 S204-C20 In stock $35.66
25 A 2CDS254001R0254 S204-C25 In stock $35.66
32 A 2CDS254001R0324 S204-C32 In stock $44.59
40 A 2CDS254001R0404 S204-C40 In stock $46.39
50 A 2CDS254001R0504 S204-C50 In stock $53.50
63 A 2CDS254001R0634 S204-C63 In stock $60.64
80 A 2CDS254001R0804 This part S204-C80 In stock $142.67
100 A 2CDS254001R0824 S204-C100 In stock $178.32
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • IEC/EN 60947-2
Quick answers

Questions about the S204-C80

What is the rated current of S204-C80?

The rated current of S204-C80 is 80 A.

Which supply voltage is S204-C80 rated for?

The rated operational voltage of S204-C80 is 400 V AC.

What is the HS code of S204-C80 for customs?

The tariff (HS) code on file for S204-C80 is 853620.

What is the EAN of S204-C80?

The EAN (GTIN) of S204-C80 is 4016779916424.

Where does S204-C80 ship from, and how fast?

S204-C80 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
