Part number
2CDS254001R0634
Model no
S204-C63
$60.64 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

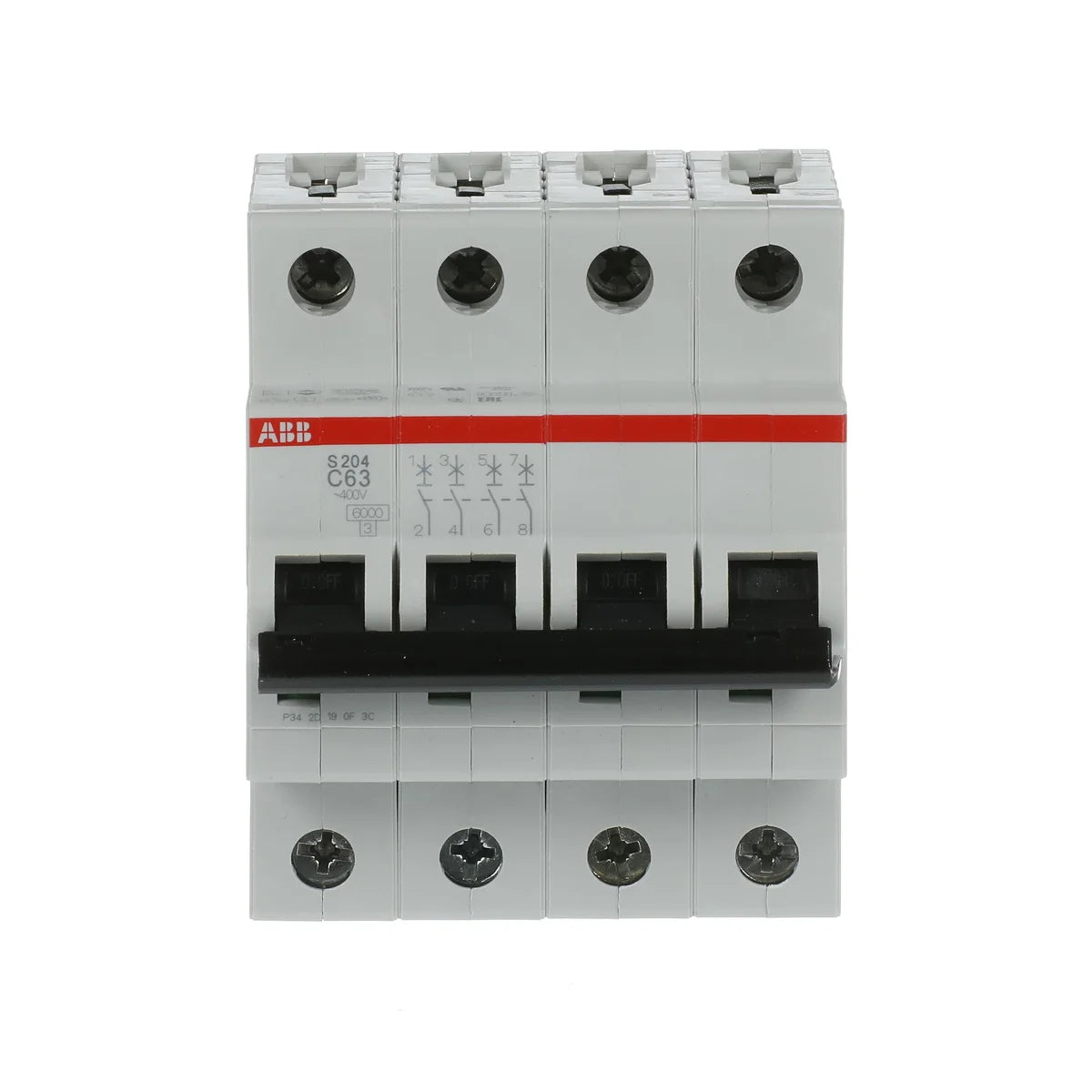

ABB 2CDS254001R0634 S204-C63 4P 63A 6kA Curve-C 230/400V AC DIN-Rail Miniature Circuit Breaker

Rated current
63 A
Rated operational voltage
230–400 V AC
Poles
4P
Breaking capacity
(230) 20 kA
EAN
4016779551113
Other ratings in ABB S200 All 15 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
40 2CDS254001R0404 In stock $46.39
50 2CDS254001R0504 In stock $53.50
63 2CDS254001R0634This part In stock $60.64
80 2CDS254001R0804 In stock $142.67
100 2CDS254001R0824 In stock $178.32
Description

About the S204-C63

The ABB S204-C63 miniature circuit breaker (MCB), SKU 2CDS254001R0634, is a 4-pole, 63 A, 6 kA breaking capacity device from the trusted S200 series, designed for overcurrent and short-circuit protection in industrial and commercial power distribution panels. Rated at 230/400 V AC with Curve-C tripping characteristics, the S204-C63 mounts directly on standard DIN rail and delivers reliable, compact protection for three-phase and neutral circuits. Weighing just 0.48 kg with a compact 70 × 88 × 69 mm footprint, this MCB is ideal for space-efficient control panel installations.

Certifications & Standards

  • IEC/EN 60898-1: International and European standard for MCBs used in household and similar installations
  • IEC/EN 60947-2: International and European standard for circuit breakers in industrial applications
  • IEC 60898-1400: Extended MCB standard (400 V rated)
  • IEC 60947-2440: Industrial circuit breaker standard (440 V)
  • IEC 60068-2: Environmental testing standard
  • EN 60898-1: European MCB standard
  • EN 60947-2: European industrial circuit breaker standard
  • EN 45555: European standard for end-of-life management of electrical equipment
  • EN 60664: Insulation coordination for low-voltage equipment
  • UL 1077: UL standard for supplementary protectors used in electrical equipment
  • CSA: Canadian Standards Association certification
  • CE: European Conformity marking — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed marking for Great Britain market
  • RoHS: Restriction of Hazardous Substances — compliant, no restricted materials
  • REACH: EU chemical safety regulation — compliant
  • WEEE: Waste Electrical and Electronic Equipment directive — compliant

Applications & Use Cases

  • Overcurrent and short-circuit protection in three-phase + neutral industrial distribution boards
  • Commercial building power panel protection at 400 V AC
  • Control panel circuit protection in manufacturing and automation environments
  • Protection of motors, HVAC equipment, and resistive loads suited to Curve-C characteristics
  • Any application requiring compact 4-pole DIN-rail MCB protection up to 63 A
Specification

Full specification

84 values · Last verified 30 Oct 2026

Technical 21

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 20 kA, (400 V AC) 10 kA, (440 V AC) 10 kA, (230 V) 20 kA, (400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 15 kA, (400 V AC) 7.5 kA, (440 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 4
Number of Poles 4P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Wire Stripping Length 12.5 mm
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC
Operational Voltage Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 63 A
Rated Short-Circuit Capacity (AC) 6 kA, (DC) 6 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 19.2 W, at Rated Operating Conditions per Pole 4.8 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 84 specifications ↓ Show less ↑50 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS254001R0634
Type designation S204-C63
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779551113
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 1 piece
Package Level 1 Gross Weight 0.5 kg
E-Number (Sweden) 2100285

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 110 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA, (240 V) 10 kA
Connecting Capacity UL/CSA Busbar 18-8 AWG, Conductor 18-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 4
Product Net Width 70 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.48 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC204436_EPLAN

Installation 3

Mounting Type DIN-Rail
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC, UL
Standardization Body EN, IEC, UL

Logistics 4

Shipping weight 0.51 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS254001R0634

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 15 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
20 A 2CDS254001R0204 S204-C20 In stock $35.66
25 A 2CDS254001R0254 S204-C25 In stock $35.66
32 A 2CDS254001R0324 S204-C32 In stock $44.59
40 A 2CDS254001R0404 S204-C40 In stock $46.39
50 A 2CDS254001R0504 S204-C50 In stock $53.50
63 A 2CDS254001R0634 This part S204-C63 In stock $60.64
80 A 2CDS254001R0804 S204-C80 In stock $142.67
100 A 2CDS254001R0824 S204-C100 In stock $178.32
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S204-C63

What is the rated current of S204-C63?

The rated current of S204-C63 is 63 A.

Which supply voltage is S204-C63 rated for?

The rated operational voltage of S204-C63 is 230–400 V AC.

What is the HS code of S204-C63 for customs?

The tariff (HS) code on file for S204-C63 is 853620.

What is the EAN of S204-C63?

The EAN (GTIN) of S204-C63 is 4016779551113.

Where does S204-C63 ship from, and how fast?

S204-C63 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
