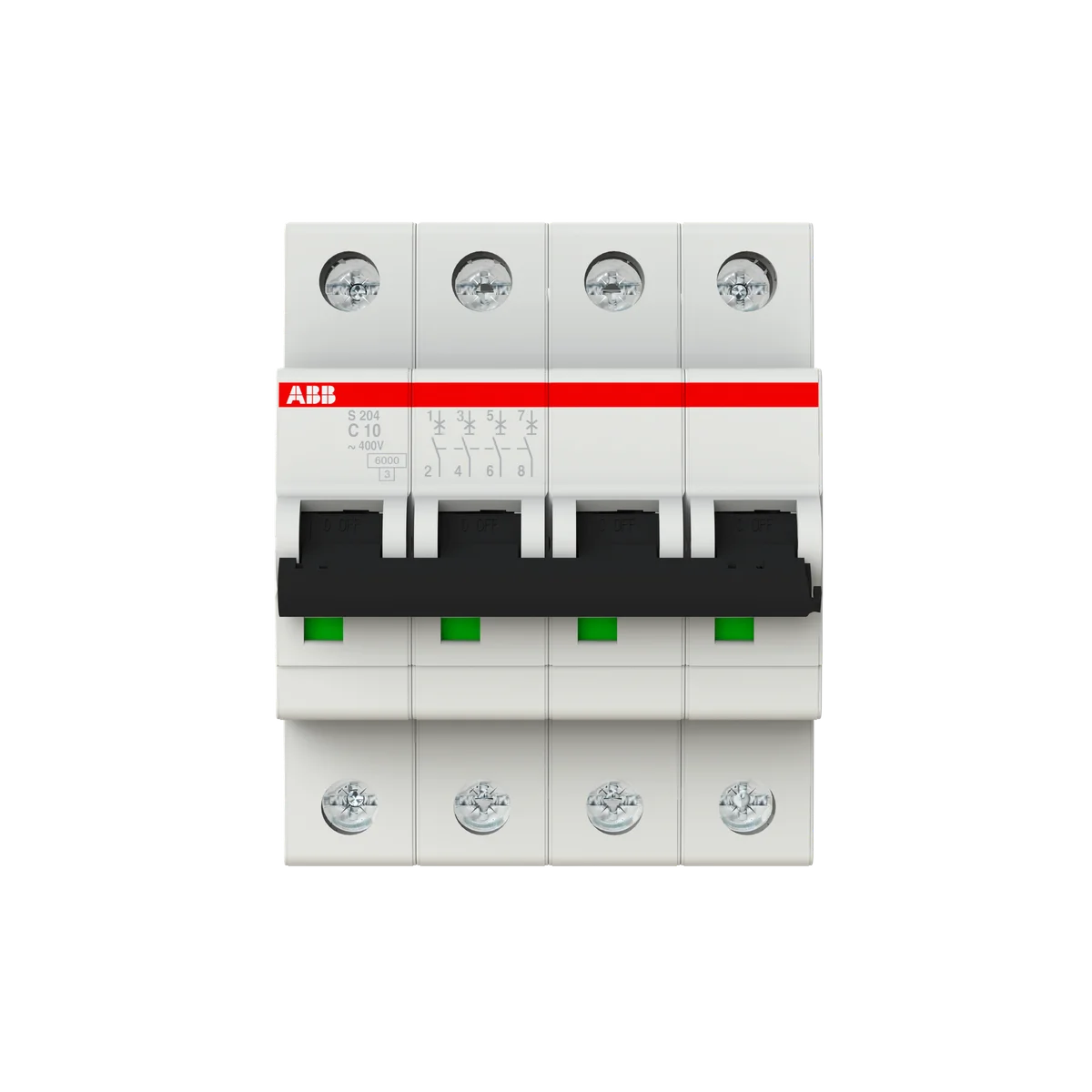

ABB 2CDS254001R0104 S204-C10 4P 10A 6kA C-Curve DIN Rail Miniature Circuit Breaker

The ABB S204-C10 miniature circuit breaker (SKU: 2CDS254001R0104) is a 4-pole, 10A, 6kA C-curve MCB from the S200 series, rated for 230/400V AC and designed for DIN rail installation in residential, commercial, and light industrial control panels. The S204-C10 provides reliable overcurrent and short-circuit protection with a compact 70mm × 88mm × 69mm footprint and a weight of just 0.448 kg, making it an efficient solution for high-density panel designs.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: International and European standard for household and similar electrical installations
• IEC/EN 60947-2: International and European standard for low-voltage switchgear and controlgear — circuit breakers
• IEC 60898-1400: IEC 60898-1 variant covering additional rated breaking capacity requirements
• IEC 60947-2440: IEC 60947-2 variant for extended application conditions
• IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
• IEC 60068-2: Environmental testing standard for electrical and electronic equipment
• EN 60898-1: European harmonised standard for overcurrent protection in circuit breakers
• EN 60947-2: European standard for low-voltage circuit breakers — industrial applications
• EN 45555: General methods for the assessment of the lifetime of energy-related products
• EN 60664: European insulation coordination standard for low-voltage installations
• UL 1077: UL standard for supplementary protectors for use in electrical equipment
• CSA: Canadian Standards Association certification for electrical safety
• CE: Conformité Européenne marking — meets all applicable EU directives
• UKCA: UK Conformity Assessed marking for Great Britain market compliance
• RoHS: Restriction of Hazardous Substances Directive — compliant, no restricted substances
• REACH: EU chemical safety regulation compliance
• WEEE: Waste Electrical and Electronic Equipment Directive compliance
