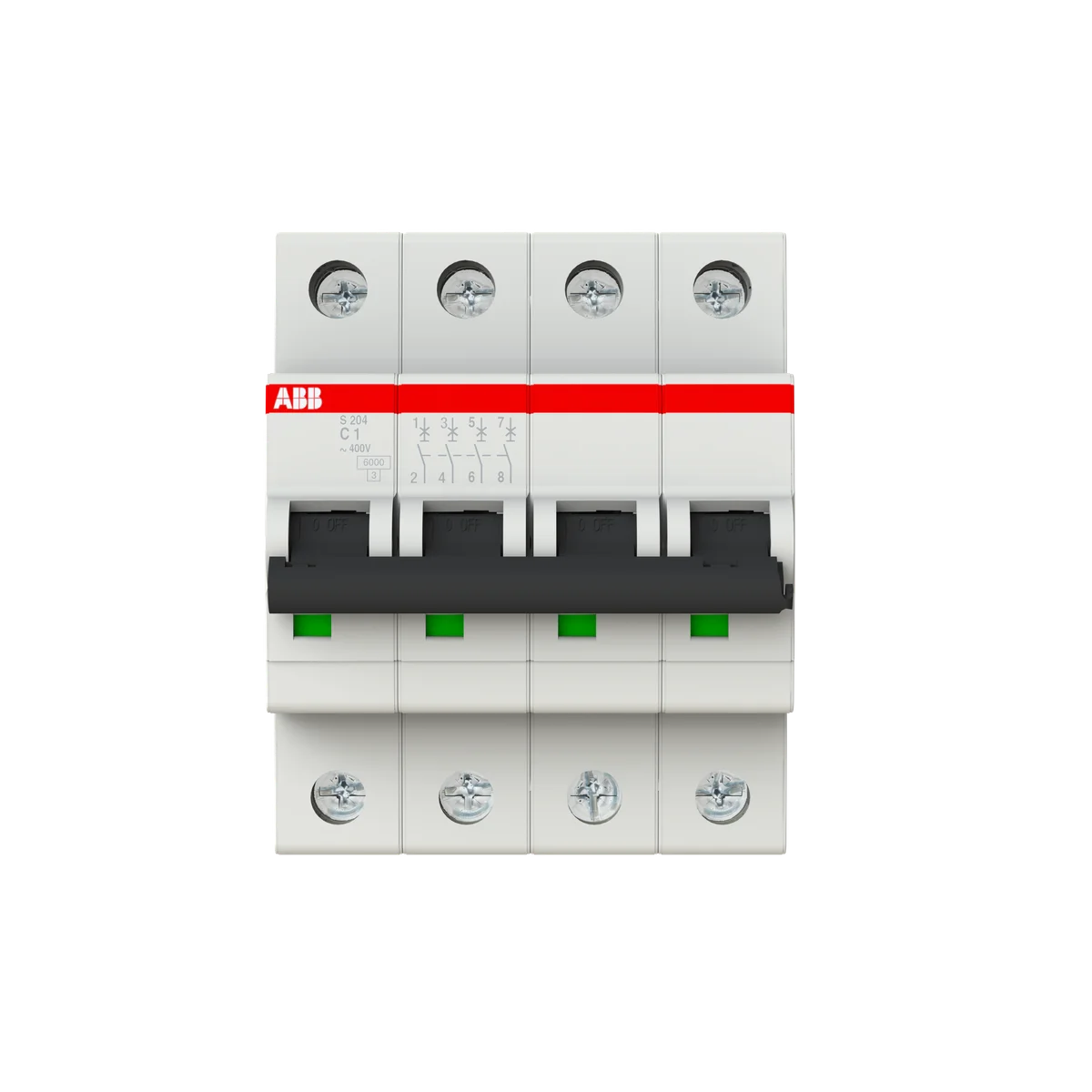

ABB 2CDS254001R0014 S204-C1 4P 1A 6kA C-Curve Miniature Circuit Breaker

The ABB S204-C1 (SKU: 2CDS254001R0014) is a 4-pole miniature circuit breaker from the S200 series, rated at 1 A with a C-curve trip characteristic and a breaking capacity of 6 kA at 230/400 V AC. Designed for DIN-rail mounting in industrial and commercial control panels, the S204-C1 delivers reliable overcurrent and short-circuit protection across all four poles simultaneously, making it the ideal choice for sensitive low-current circuits in automation and distribution boards.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: International and European standard for household and similar circuit breakers
• IEC 60898-1: IEC standard for circuit-breakers for overcurrent protection
• EN 60898-1: European harmonised standard for miniature circuit breakers
• IEC/EN 60947-2: Industrial low-voltage switchgear and controlgear — circuit breakers
• IEC 60947-2: IEC standard for low-voltage circuit breakers
• EN 60947-2: European standard for low-voltage circuit breakers
• UL 1077: UL standard for supplementary protectors for use in electrical equipment
• IEC 60898: General IEC standard series for circuit breakers
• IEC 60947: General IEC standard series for low-voltage switchgear and controlgear
• IEC 60068-2: Environmental testing standard for electrical components
• IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
• EN 60664: European standard for insulation coordination in low-voltage systems
• EN 45555: General methods for the assessment of the energy efficiency of networked products
• CSA: Canadian Standards Association certification for North American markets
• CE: Conformité Européenne — meets all applicable EU directives
• UKCA: UK Conformity Assessed — meets all applicable Great Britain regulations
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals compliance
• WEEE: Waste Electrical and Electronic Equipment Directive compliance

Applications & Use Cases

• Overcurrent and short-circuit protection for low-current 1 A circuits in industrial control panels
• Protection of instrumentation, PLC input/output modules, and sensitive electronic loads
• Distribution board protection in commercial buildings and light industrial facilities
• Four-pole isolation providing simultaneous disconnection of all live conductors in 3-phase + neutral systems
• Control panel sub-circuit protection in automation, HVAC, and building management systems

Frequently Asked Questions

What does the C-curve trip characteristic mean for the S204-C1?

The C-curve means the breaker will trip instantaneously at 5–10 times the rated current (5–10 A). This is suitable for general loads with moderate inrush currents, such as resistive loads, lighting circuits, and control transformers.

Is the ABB S204-C1 suitable for 3-phase systems?

Yes. With 4 poles rated at 400 V AC, the S204-C1 is designed for use in 3-phase + neutral (TN-S) systems, providing simultaneous protection and isolation across all four conductors.

What DIN-rail width does the S204-C1 occupy?

The S204-C1 has a width of 88 mm, which corresponds to 4 module widths (4 × 18 mm) on a standard EN 60715 DIN rail — one module per pole.
