Part number
2CDS254001R0164
Model no
S204-C16
$35.66 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

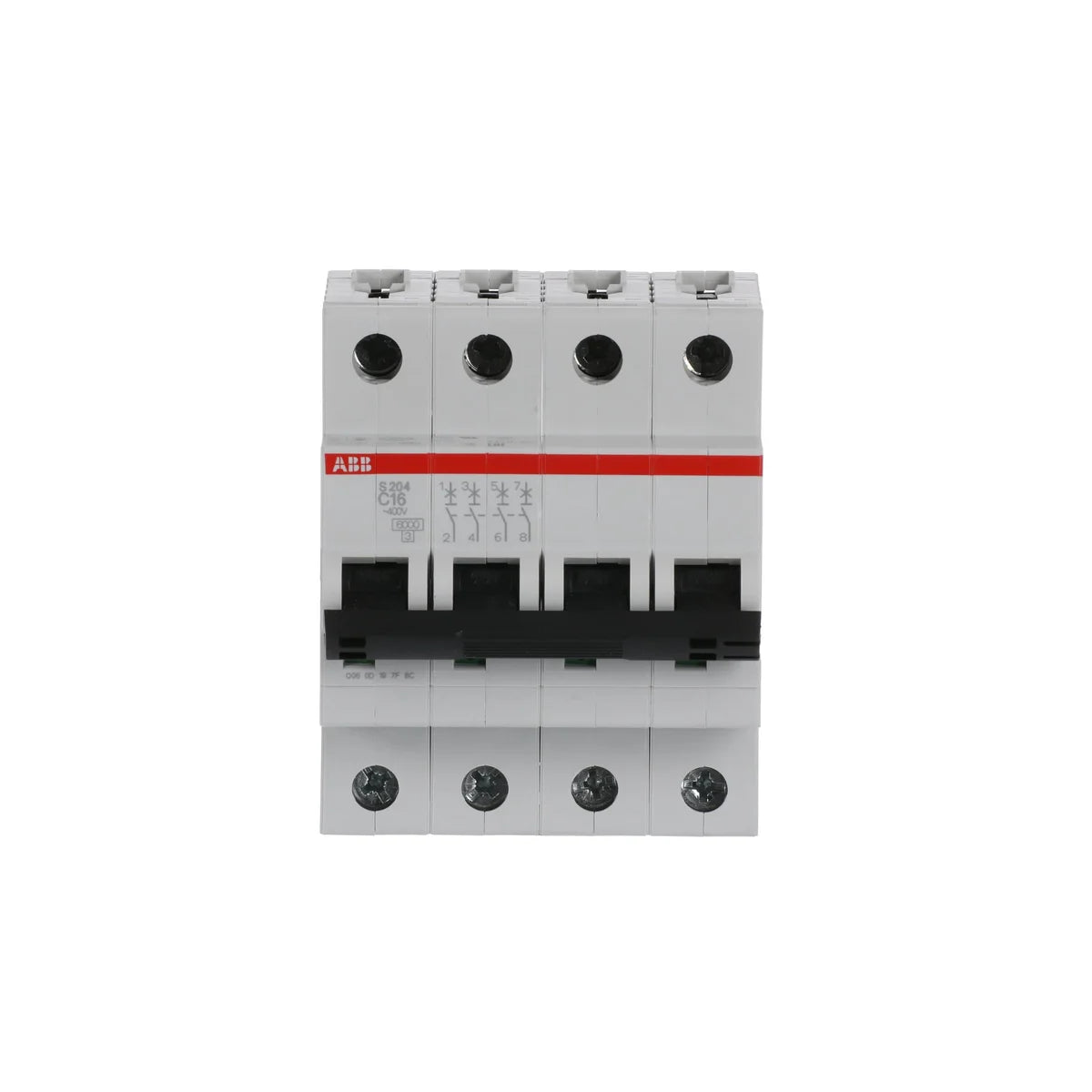

ABB 2CDS254001R0164 S204-C16 4P 16A 6kA Curve-C DIN-Rail Miniature Circuit Breaker

Rated current
16 A
Rated operational voltage
230–400 V AC
Poles
4P
Breaking capacity
(230) 20 kA
EAN
4016779529211
Other ratings in ABB S200 All 15 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
6 2CDS254001R0064 In stock $42.83
10 2CDS254001R0104 In stock $35.66
16 2CDS254001R0164This part In stock $35.66
20 2CDS254001R0204 In stock $35.66
25 2CDS254001R0254 In stock $35.66
Description

About the S204-C16

The ABB S204-C16 miniature circuit breaker (MCB), catalog number S204-C16 (SKU: 2CDS254001R0164), is a 4-pole, 16 A, 6 kA breaking capacity device from the ABB S200 series, designed for overcurrent and short-circuit protection in residential, commercial, and light industrial distribution boards. Rated at 230/400 V AC with a Type C tripping curve, the S204-C16 mounts on standard DIN rail and delivers reliable protection for motors and general inductive loads in control panels and distribution systems.

Certifications & Standards

  • IEC/EN 60898-1: Miniature circuit breakers for household and similar installations
  • IEC/EN 60947-2: Low-voltage switchgear — circuit breakers (industrial)
  • IEC 60898-1: International standard for MCBs
  • EN 60898-1: European harmonised standard for MCBs
  • IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
  • EN 60947-2: European standard for low-voltage circuit breakers
  • IEC 60068-2: Environmental testing standard
  • UL 1077: UL standard for supplementary protectors (North America)
  • CSA: Canadian Standards Association approval
  • EN 45555: General methods for the assessment of the ability to recondition electrical and electronic household and office equipment
  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — meets UK market requirements post-Brexit
  • RoHS: Restriction of Hazardous Substances compliant
  • REACH: Compliant with EU REACH chemical regulation
  • WEEE: Compliant with Waste Electrical and Electronic Equipment directive

Applications & Use Cases

  • Overcurrent and short-circuit protection in commercial and light industrial distribution boards
  • Protection of motors, transformers, and inductive loads (Type C curve suitable for moderate inrush currents)
  • Control panel and automation cabinet wiring protection
  • Building services and infrastructure electrical systems
  • Three-phase 400 V AC systems requiring 4-pole isolation of all live conductors
Specification

Full specification

84 values · Last verified 30 Oct 2026

Technical 21

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (230 V AC) 20 kA, (400 V AC) 10 kA, (440 V AC) 10 kA, (230 V) 20 kA, (400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (230 V AC) 15 kA, (400 V AC) 7.5 kA, (440 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 20000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 4
Number of Poles 4P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Wire Stripping Length 12.5 mm
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC
Operational Voltage Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 16 A
Rated Short-Circuit Capacity (AC) 6 kA, (DC) 6 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 10 W, at Rated Operating Conditions per Pole 2.5 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 84 specifications ↓ Show less ↑50 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS254001R0164
Type designation S204-C16
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779529211
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 1 piece
Package Level 1 Gross Weight 0.48 kg
E-Number (Sweden) 2100277

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 110 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA, (240 V) 10 kA
Connecting Capacity UL/CSA Busbar 18-8 AWG, Conductor 18-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 4
Product Net Width 70 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.46 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC204436_EPLAN

Installation 3

Mounting Type DIN-Rail
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC, UL
Standardization Body EN, IEC, UL

Logistics 4

Shipping weight 0.51 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS254001R0164

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 15 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
4 A 2CDS254001R0044 S204-C4 In stock $42.83
6 A 2CDS254001R0064 S204-C6 In stock $42.83
10 A 2CDS254001R0104 S204-C10 In stock $35.66
16 A 2CDS254001R0164 This part S204-C16 In stock $35.66
20 A 2CDS254001R0204 S204-C20 In stock $35.66
25 A 2CDS254001R0254 S204-C25 In stock $35.66
32 A 2CDS254001R0324 S204-C32 In stock $44.59
40 A 2CDS254001R0404 S204-C40 In stock $46.39
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S204-C16

What is the rated current of S204-C16?

The rated current of S204-C16 is 16 A.

Which supply voltage is S204-C16 rated for?

The rated operational voltage of S204-C16 is 230–400 V AC.

What is the HS code of S204-C16 for customs?

The tariff (HS) code on file for S204-C16 is 853620.

What is the EAN of S204-C16?

The EAN (GTIN) of S204-C16 is 4016779529211.

Where does S204-C16 ship from, and how fast?

S204-C16 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
