Part number
XVUC23
$33.84 On request Dispatch — · From TürkiyeGet a Quote
Harmony XVU

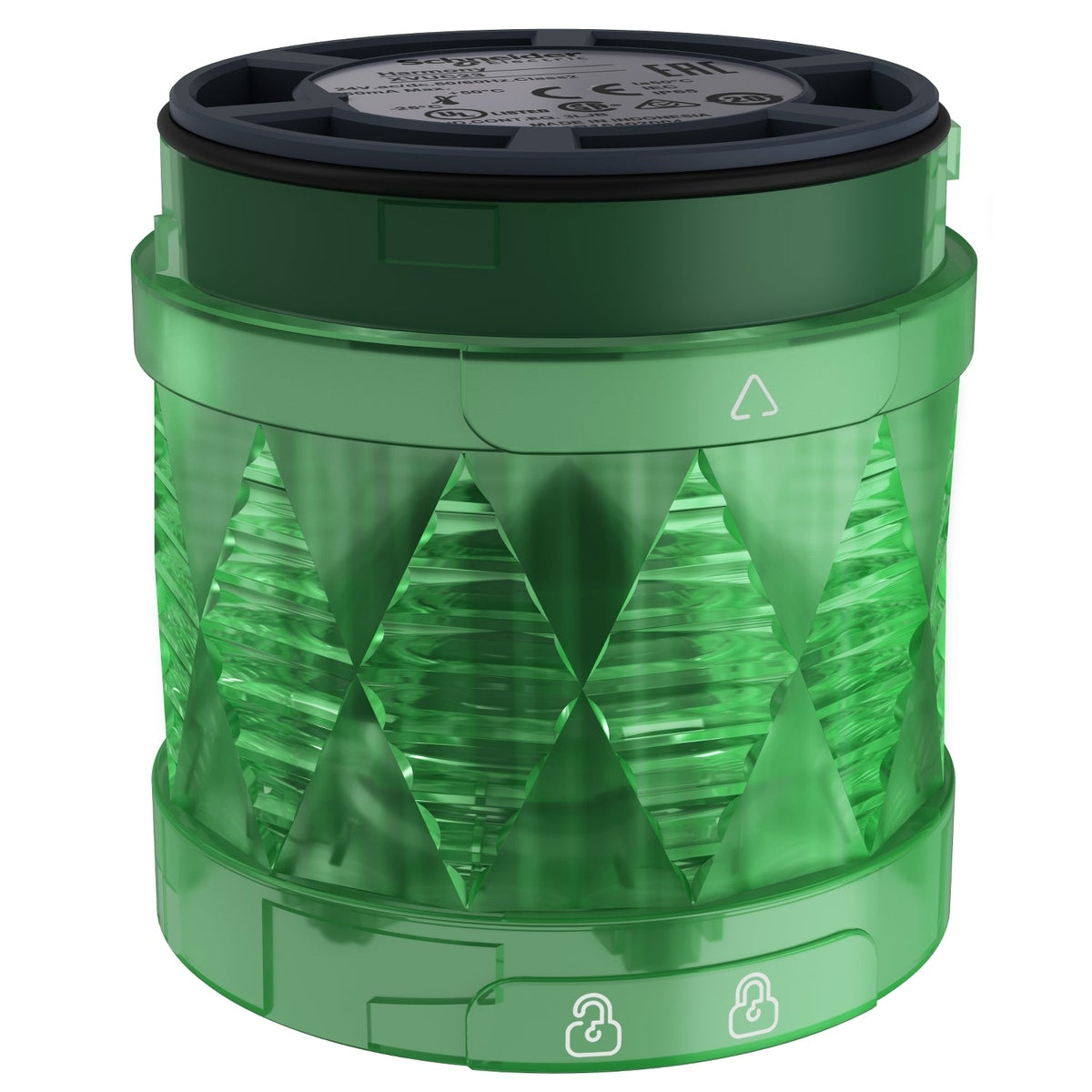

Schneider Electric XVUC23 Harmony XVU LED Unit Green 60 mm Steady 24 V AC/DC Signal Tower

Schneider Electric XVUC23 – Harmony XVU green steady LED unit, 60 mm, 24 V AC/DC.

Rated operational voltage
24–DC V DC
EAN
3606480555817
Description

About the XVUC23

The Schneider Electric XVUC23 is a Harmony XVU modular LED indicator unit in green, supplying a steady light signal at 24 V AC/DC for stacking onto an XVU base unit. Rated IP65 and consuming ≤ 50 mA, it is used on automotive, packaging and machine-tool lines to give a clear, single-colour run or fault indication.

Certifications & Standards

  • CSA
  • UL
  • CE

Selection Notes

The green lens on the XVUC23 draws ≤ 50 mA at 2.5 W maximum dissipation, in line with the other single-colour steady units in the XVU range; swap in a different XVUC2x part number for a different colour without changing the base unit or wiring. Up to 5 of these LED units can be stacked on one base, or 4 if a buzzer unit is added to the same tower, so plan the colour sequence (bottom to top usually follows red/amber/green priority) before ordering the stack. Because every colour in the range shares the same 60 mm diameter, 24 V AC/DC supply and IP65 housing, the XVUC23 can be swapped into an existing stack for a maintenance replacement without re-checking fit, wiring gauge or environmental rating against the rest of the assembly.

Applications

Steady-light XVU indicator units are used where a single, unambiguous colour is enough to communicate machine state — for example a dedicated green run light on a packaging line — as opposed to the XVUC29 multi-colour unit, which covers several states from one lens. Choosing a colour here is purely a lens swap — the base unit, wiring and mounting hardware are identical across the whole XVUC2x range.

Specification

Full specification

33 values · Last verified 30 Oct 2026

Main 7

Range of Product Harmony XVU
Product or Component Type Modular tower light
Beacon or indicator bank unit type LED unit
Mounting diameter 2.4 in (60 mm)
Component name XVU
Light source LED, green
Device Application Automotive, Packaging machine, Machine tools

Complementary 8

Signalling type Steady
Assembly style Customer assembly, up to 5 units, Up to 4 units with buzzer
Material PC (polycarbonate) V-2 UL 94, PC (polycarbonate) V-0 UL 94
[Us] Rated Supply Voltage 24 V AC/DC
Maximum power dissipation in W 2.5 W
Current consumption <= 50 mA
Length 2.0 in (50 mm)
Net Weight 0.141 lb(US) (0.064 kg)

Environment 5

Product Certifications CSA, UL, CE
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
IP degree of protection IP65
Ambient Air Temperature for Operation -13…122 °F (-25…50 °C)
Vibration resistance 2 gn
Show all 33 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XVUC23
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480555817

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.064 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XVUC23

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
Quick answers

Questions about the XVUC23

Which supply voltage is XVUC23 rated for?

The rated operational voltage of XVUC23 is 24–DC V DC.

What is the HS code of XVUC23 for customs?

The tariff (HS) code on file for XVUC23 is 853180.

What is the EAN of XVUC23?

The EAN (GTIN) of XVUC23 is 3606480555817.

Where does XVUC23 ship from, and how fast?

XVUC23 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
