Part number
XVUC25
$33.84 On request Dispatch — · From TürkiyeGet a Quote
Harmony XVU

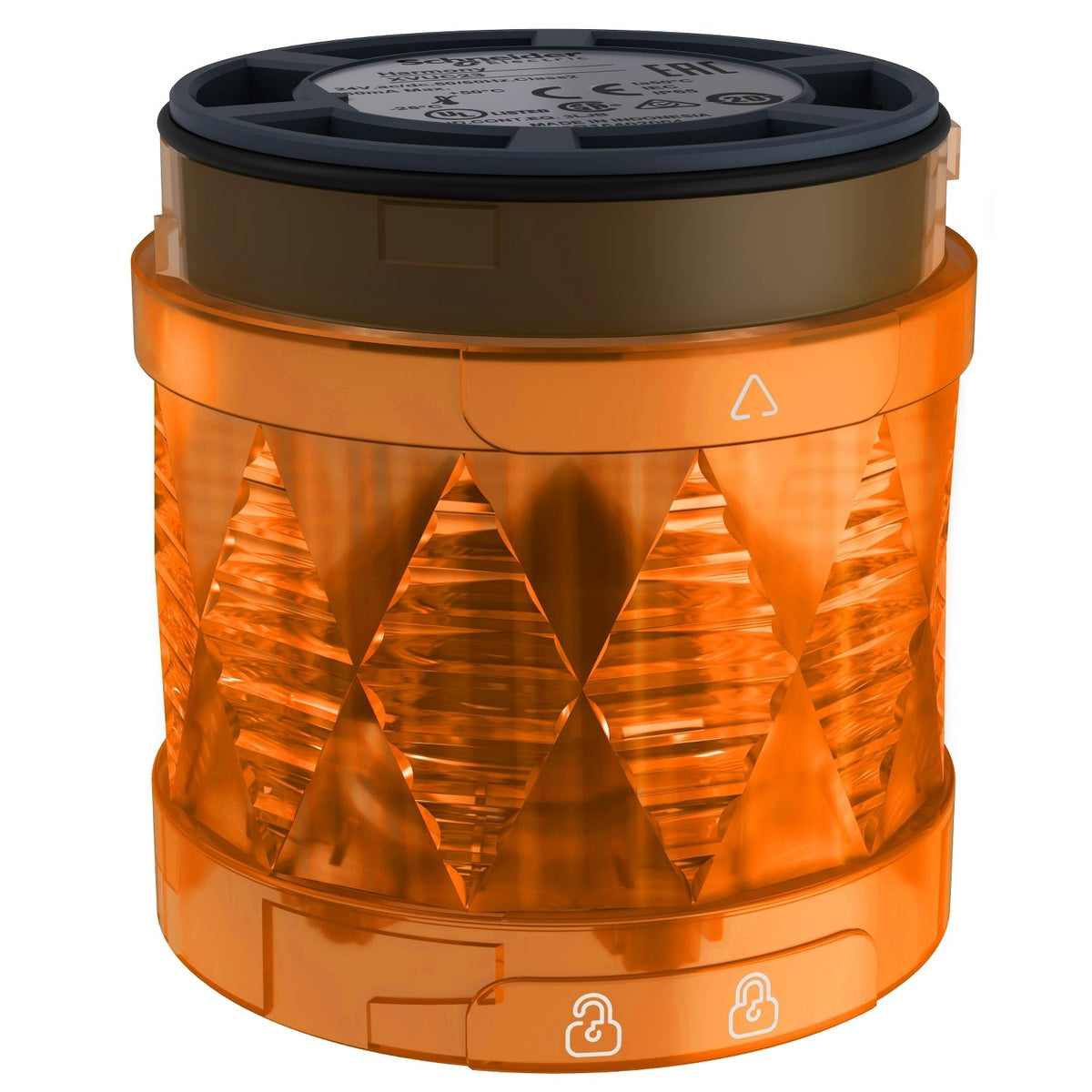

Schneider Electric XVUC25 Harmony XVU LED Unit Orange 60 mm Steady 24 V AC/DC Signal Tower

Schneider Electric XVUC25 – Harmony XVU orange steady LED unit, 60 mm, 24 V AC/DC.

Rated operational voltage
24–DC V DC
EAN
3606480555831
Description

About the XVUC25

The Schneider Electric XVUC25 is a Harmony XVU modular LED indicator unit in orange, supplying a steady light signal at 24 V AC/DC for stacking onto an XVU base unit. Rated IP65 and consuming ≤ 40 mA, it is used on automotive, packaging and machine-tool lines to give a clear, single-colour run or fault indication.

Certifications & Standards

  • CSA
  • UL
  • CE

Selection Notes

The orange lens on the XVUC25 draws ≤ 40 mA at 2 W maximum dissipation, in line with the other single-colour steady units in the XVU range; swap in a different XVUC2x part number for a different colour without changing the base unit or wiring. Up to 5 of these LED units can be stacked on one base, or 4 if a buzzer unit is added to the same tower, so plan the colour sequence (bottom to top usually follows red/amber/green priority) before ordering the stack. Because every colour in the range shares the same 60 mm diameter, 24 V AC/DC supply and IP65 housing, the XVUC25 can be swapped into an existing stack for a maintenance replacement without re-checking fit, wiring gauge or environmental rating against the rest of the assembly.

Applications

Steady-light XVU indicator units are used where a single, unambiguous colour is enough to communicate machine state — for example a dedicated green run light on a packaging line — as opposed to the XVUC29 multi-colour unit, which covers several states from one lens. Choosing a colour here is purely a lens swap — the base unit, wiring and mounting hardware are identical across the whole XVUC2x range.

Specification

Full specification

33 values · Last verified 30 Oct 2026

Main 7

Range of Product Harmony XVU
Product or Component Type Modular tower light
Beacon or indicator bank unit type LED unit
Mounting diameter 2.4 in (60 mm)
Component name XVU
Light source LED, orange
Device Application Packaging machine, Machine tools, Automotive

Complementary 8

Signalling type Steady
Assembly style Customer assembly, up to 5 units, Up to 4 units with buzzer
Material PC (polycarbonate) V-2 UL 94, PC (polycarbonate) V-0 UL 94
[Us] Rated Supply Voltage 24 V AC/DC
Maximum power dissipation in W 2 W
Current consumption <= 40 mA
Length 2.0 in (50 mm)
Net Weight 0.141 lb(US) (0.064 kg)

Environment 5

Product Certifications CSA, UL, CE
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
IP degree of protection IP65
Ambient Air Temperature for Operation -13…122 °F (-25…50 °C)
Vibration resistance 2 gn
Show all 33 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XVUC25
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480555831

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.064 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XVUC25

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
Quick answers

Questions about the XVUC25

Which supply voltage is XVUC25 rated for?

The rated operational voltage of XVUC25 is 24–DC V DC.

What is the HS code of XVUC25 for customs?

The tariff (HS) code on file for XVUC25 is 853180.

What is the EAN of XVUC25?

The EAN (GTIN) of XVUC25 is 3606480555831.

Where does XVUC25 ship from, and how fast?

XVUC25 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
