- Part number
- XVUC9SQ
Description
About the XVUC9SQ
About the XVUC9SQ

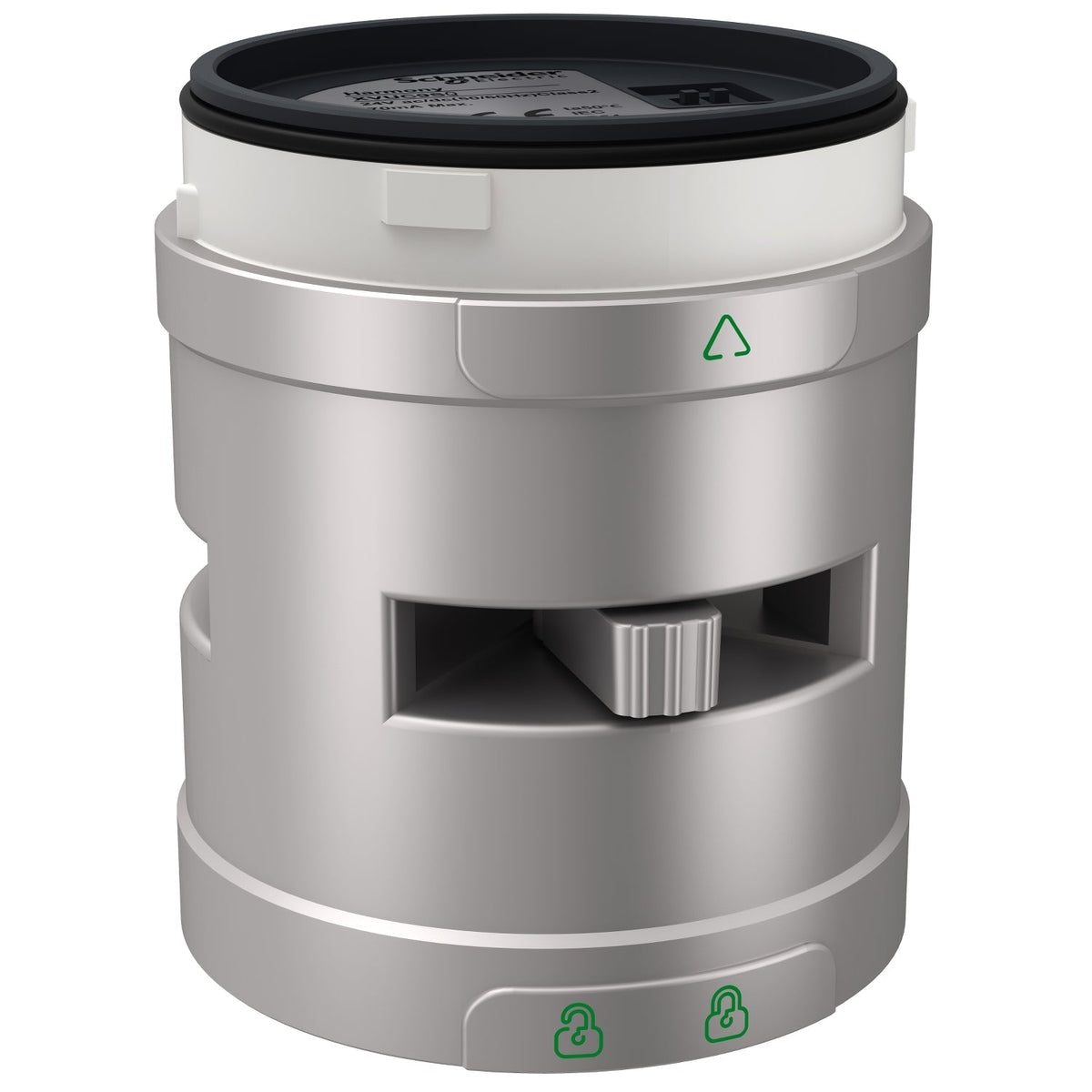

The Schneider Electric XVUC9SQ is a Harmony XVU buzzer unit in silver, stacking onto an XVU base to add an 85 dB continuous or intermittent audible alarm to a 60 mm modular tower light. It runs on 24 V AC/DC and carries an IP54 degree of protection, drawing no more than 70 mA.
Certifications & Standards
- CSA
- CE
- UL
Selection Notes
The silver housing matches the XVUC21BQ silver base unit and XVUZ01Q/02Q silver mounting accessories, so use the XVUC9SQ over the black XVUC9S wherever the tower's other parts were already specified in silver. Electrically it is identical to the black variant — same 85 dB output, 2635 Hz tone and 70 mA draw — so the choice between the two is purely about matching the housing colour of the rest of the stack. It mounts on top of the assembly (localisation: top) and counts against the same 4-unit stacking limit as the black XVUC9S once it is added to a tower.
Applications
Buzzer units are added to a Harmony XVU stack on lines where the operator may not be looking at the tower light when a fault occurs — packaging machines, conveyor transfer points and enclosed machine cells — so the audible tone draws attention before the visual indication is even seen.
Specification
Full specification
Main 6
| Range of Product | Harmony XVU |
|---|---|
| Product or Component Type | Modular tower light |
| Beacon or indicator bank unit type | Buzzer unit |
| Mounting diameter | 2.4 in (60 mm) |
| Component name | XVU |
| Housing Colour | Silver |
Complementary 11
| Signalling type | Continuous or intermittent buzzer |
|---|---|
| Material | PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene) V-0 UL 94 |
| Localisation on device | Top |
| Assembly style | Customer assembly |
| [Us] rated supply voltage | 24 V AC/DC |
| Maximum power dissipation in W | 1.7 W |
| Acoustic level | 85 dB 1 m |
| Sound frequency | 2635 Hz |
| Current consumption | <= 70 mA |
| Length | 2.3 in (58 mm) |
| Net Weight | 0.170 lb(US) (0.077 kg) |
Environment 4
| Product Certifications | CSA, CE, UL |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…122 °F (-25…50 °C) |
| IP degree of protection | IP54 |
Show all 34 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XVUC9SQ |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480555886 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.077 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XVUC9SQ
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
Quick answers
Questions about the XVUC9SQ
Which supply voltage is XVUC9SQ rated for?
The rated operational voltage of XVUC9SQ is 24–DC V DC.
What is the HS code of XVUC9SQ for customs?
The tariff (HS) code on file for XVUC9SQ is 853180.
What is the EAN of XVUC9SQ?
The EAN (GTIN) of XVUC9SQ is 3606480555886.
Where does XVUC9SQ ship from, and how fast?
XVUC9SQ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
