- Part number
- XVUC9V
Description
About the XVUC9V
About the XVUC9V

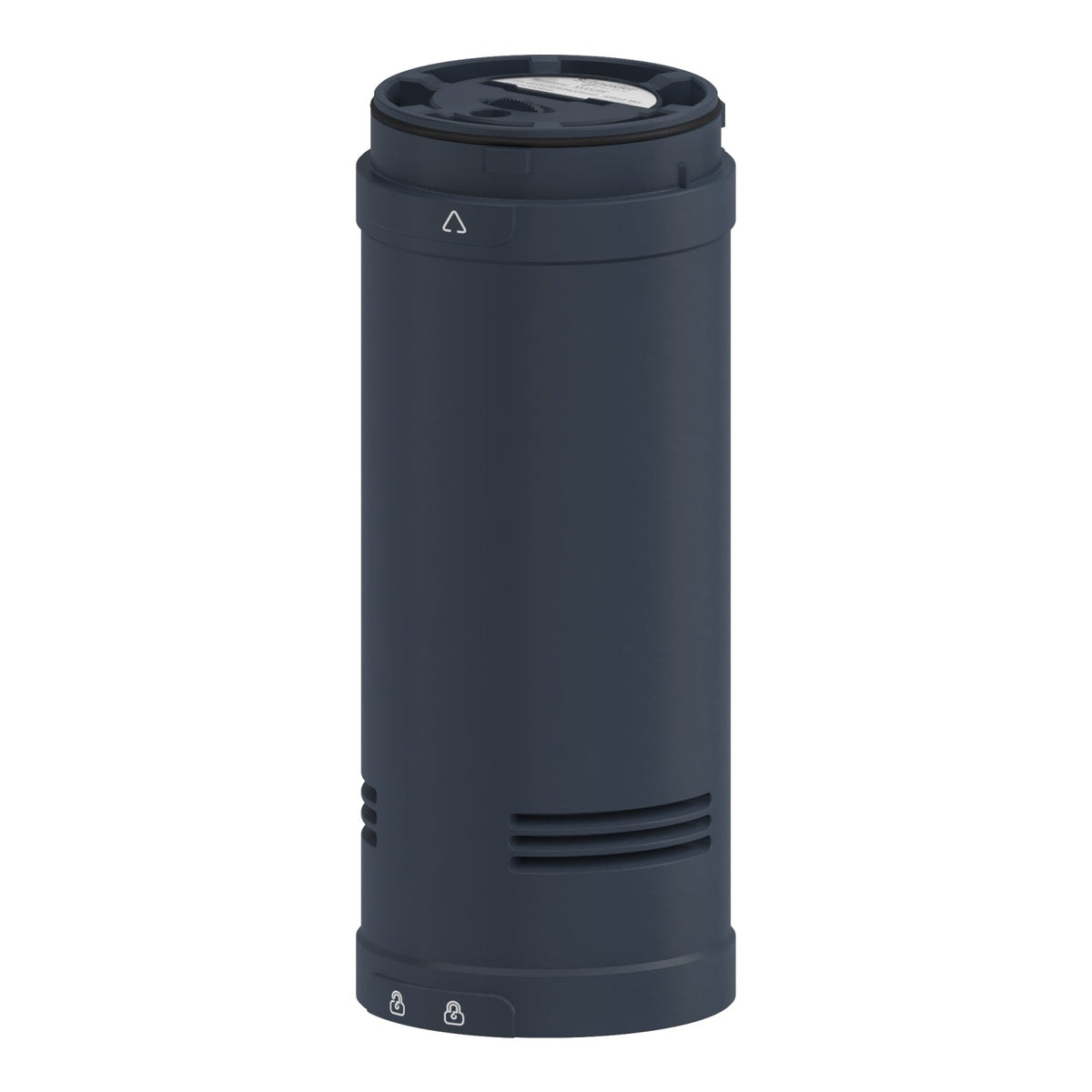

The Schneider Electric XVUC9V is a Harmony XVU sound unit in black, adding an adjustable 86 dB vocal/tone alarm across a 20 Hz to 20 kHz range to a 60 mm modular tower light. It accepts 24 V AC/DC or 100…240 V AC and carries an IP54 degree of protection.
Certifications & Standards
- UL
- CSA
- CE
Selection Notes
The XVUC9V's 20 Hz–20 kHz range and adjustable vocal sound output cover recorded voice messages and tonal alarms that the fixed 2635 Hz XVUC9S buzzer cannot reproduce, at the cost of roughly 3x the power draw and a dedicated AC/DC adapter housed in the unit. Its dual-voltage input (24 V AC/DC or 100…240 V AC) lets the same part number serve both low-voltage control panels and mains-fed installations, which the single-voltage XVUC9S and XVUC9SQ buzzers do not offer. Its 155 mm length is roughly 2.5x the 58 mm buzzer bodies, so confirm there is room in the stack and mounting tube before specifying it.
Applications
The XVUC9V suits lines that already use recorded voice messages or distinct tonal alarms for different fault states, and sites where the same tower design is reused on both 24 V control-panel machines and mains-fed standalone equipment, thanks to its dual-voltage input.
Specification
Full specification
Main 6
| Range of Product | Harmony XVU |
|---|---|
| Product or Component Type | Modular tower light |
| Beacon or indicator bank unit type | Sound unit |
| Mounting diameter | 2.4 in (60 mm) |
| Component name | XVU |
| Housing Colour | Black |
Complementary 11
| Signalling type | Adjustable vocal sound |
|---|---|
| Material | PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene) V-0 UL 94 |
| Localisation on device | AC/DC adapter |
| Assembly style | Customer assembly |
| [Us] rated supply voltage | 24 V AC/DC |
| Maximum power dissipation in W | 5.55 W |
| Acoustic level | 86 dB 1 m |
| Sound frequency | 20 Hz...20 KHz |
| Current consumption | <= 400 mA 24 V AC/DC, <= 135 mA 100...240 V AC |
| Length | 6.1 in (155 mm) |
| Net Weight | 0.483 lb(US) (0.219 kg) |
Environment 4
| Product Certifications | UL, CSA, CE |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -4…122 °F (-20…50 °C) |
| IP degree of protection | IP54 |
Show all 34 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XVUC9V |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480555893 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.219 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XVUC9V
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
Quick answers
Questions about the XVUC9V
Which supply voltage is XVUC9V rated for?
The rated operational voltage of XVUC9V is 24–DC or 100–240 V DC.
What is the HS code of XVUC9V for customs?
The tariff (HS) code on file for XVUC9V is 853180.
What is the EAN of XVUC9V?
The EAN (GTIN) of XVUC9V is 3606480555893.
Where does XVUC9V ship from, and how fast?
XVUC9V ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
