- Part number
- XVUC9S
Description
About the XVUC9S
About the XVUC9S

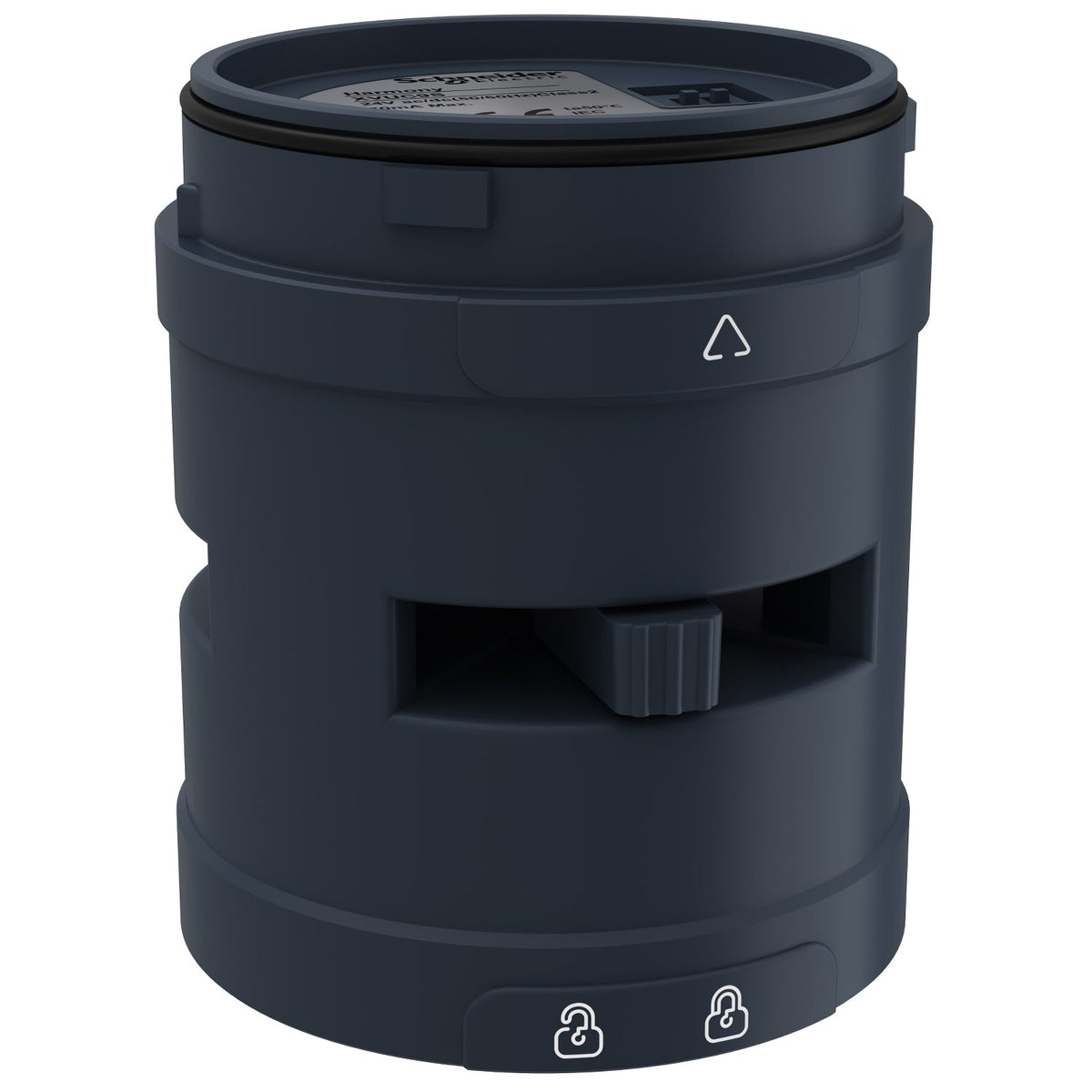

The Schneider Electric XVUC9S is a Harmony XVU buzzer unit in black, stacking onto an XVU base to add an 85 dB continuous or intermittent audible alarm to a 60 mm modular tower light. It runs on 24 V AC/DC and carries an IP54 degree of protection, drawing no more than 70 mA.
Certifications & Standards
- UL
- CE
- CSA
Selection Notes
At 85 dB and a fixed 2635 Hz tone, the XVUC9S is a fixed-pitch buzzer rather than the voice/tone XVUC9V sound unit, so pick it where a simple audible alert is enough and the extra power draw and size of the XVUC9V sound unit are not justified. It mounts on top of the stack (localisation: top) and counts against the 4-unit stacking limit that applies once a buzzer unit is in the assembly, one fewer than the 5-unit limit for LED-only stacks. Its black housing matches the standard XVUC21B base unit and the majority of XVUC2x LED lenses, which also ship in black as the default colour.
Applications
Buzzer units are added to a Harmony XVU stack on lines where the operator may not be looking at the tower light when a fault occurs — packaging machines, conveyor transfer points and enclosed machine cells — so the audible tone draws attention before the visual indication is even seen.
Specification
Full specification
Main 6
| Range of Product | Harmony XVU |
|---|---|
| Product or Component Type | Modular tower light |
| Beacon or indicator bank unit type | Buzzer unit |
| Mounting diameter | 2.4 in (60 mm) |
| Component name | XVU |
| Housing Colour | Black |
Complementary 11
| Signalling type | Continuous or intermittent buzzer |
|---|---|
| Material | PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene) V-0 UL 94, PC (polycarbonate) V-0 UL 94 |
| Localisation on device | Top |
| Assembly style | Customer assembly |
| [Us] rated supply voltage | 24 V AC/DC |
| Maximum power dissipation in W | 1.7 W |
| Acoustic level | 85 dB 1 m |
| Sound frequency | 2635 Hz |
| Current consumption | <= 70 mA |
| Length | 2.3 in (58 mm) |
| Net Weight | 0.170 lb(US) (0.077 kg) |
Environment 4
| Product Certifications | UL, CE, CSA |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…122 °F (-25…50 °C) |
| IP degree of protection | IP54 |
Show all 34 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XVUC9S |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480555879 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.077 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XVUC9S
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
Quick answers
Questions about the XVUC9S
Which supply voltage is XVUC9S rated for?
The rated operational voltage of XVUC9S is 24–DC V DC.
What is the HS code of XVUC9S for customs?
The tariff (HS) code on file for XVUC9S is 853180.
What is the EAN of XVUC9S?
The EAN (GTIN) of XVUC9S is 3606480555879.
Where does XVUC9S ship from, and how fast?
XVUC9S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
