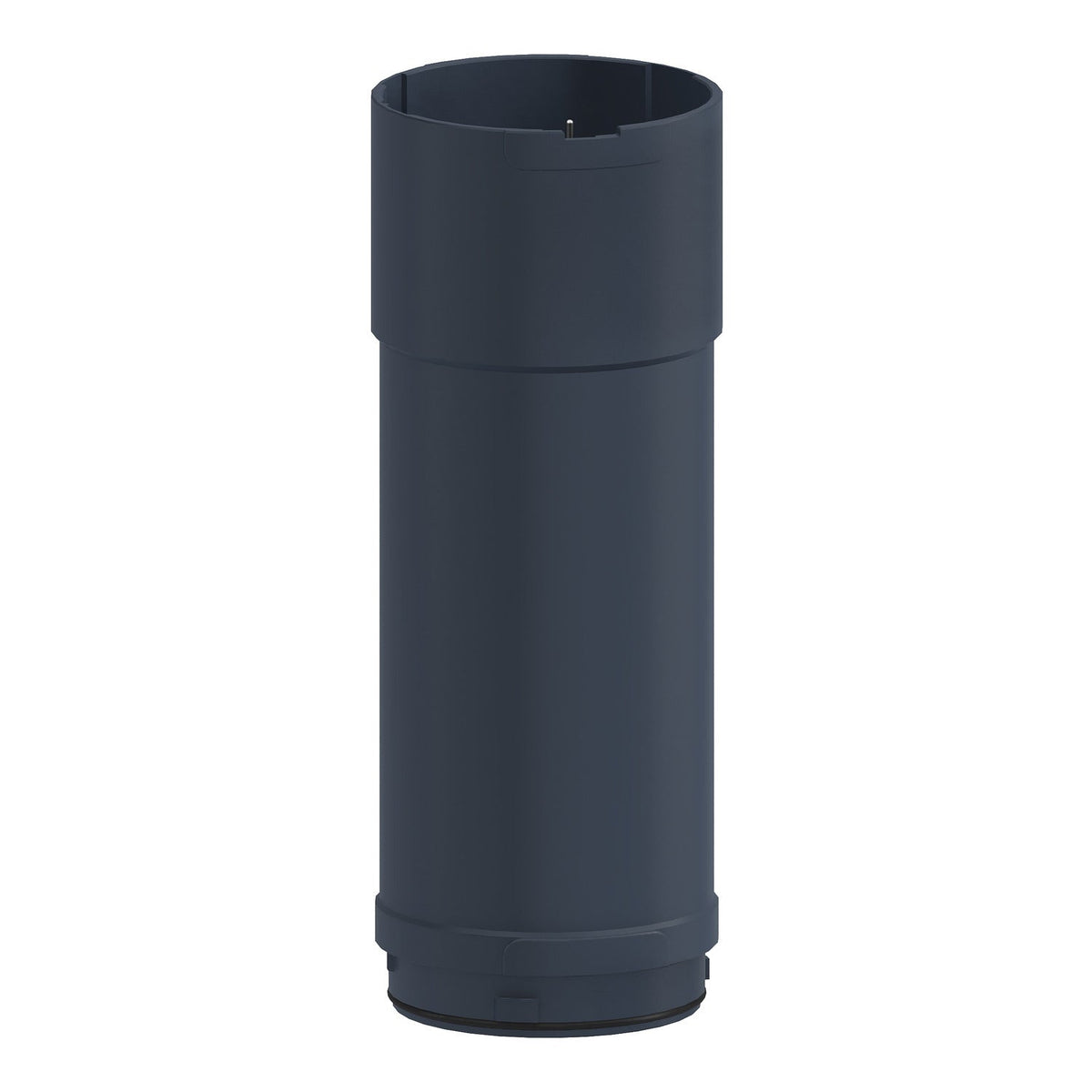

Schneider Electric XVUC21MP Harmony XVU Base Unit with Top Cover Black 60 mm 100...240 V Signal Tower

The Schneider Electric XVUC21MP is a Harmony XVU base unit with top cover in black, the foundation module that a customer stacks LED, buzzer or sound units onto to build a complete 60 mm modular tower light with a PNP base unit. It is rated 100...240 V AC +/- 10 % and carries an IP65 degree of protection for operation in dusty or wash-down environments.

Technical Specifications

Certifications & Standards

• CE
• CSA
• UL
• CCC

Selection Notes

Choose the black XVUC21MP to match the housing colour of the LED and buzzer units ordered for the same tower, since Harmony XVU bases, lenses and covers are sold as separate colour-matched parts rather than a single pre-assembled stack. The PNP base carries 100...240 V AC +/- 10 % directly, so it can be wired straight to a machine's mains distribution without a separate 24 V supply, unlike the standard 24 V AC/DC base. Up to 5 indicator units can be stacked on this base before the fixing mode and overall tower weight need to be rechecked against the mounting tube or bracket.

Applications

Harmony XVU modular tower lights are specified on automotive assembly lines, packaging machines and machine tools, wherever a technician needs to see a machine's run, stop or fault state from across the floor without walking up to a control panel. The modular stacking design lets a maintenance team swap a single failed unit instead of replacing the whole tower.
