Part number
XVUC21BQ
$37.32 On request Dispatch — · From TürkiyeGet a Quote
Harmony XVU

Schneider Electric XVUC21BQ Harmony XVU Base Unit with Top Cover Silver 60 mm 24 V Signal Tower

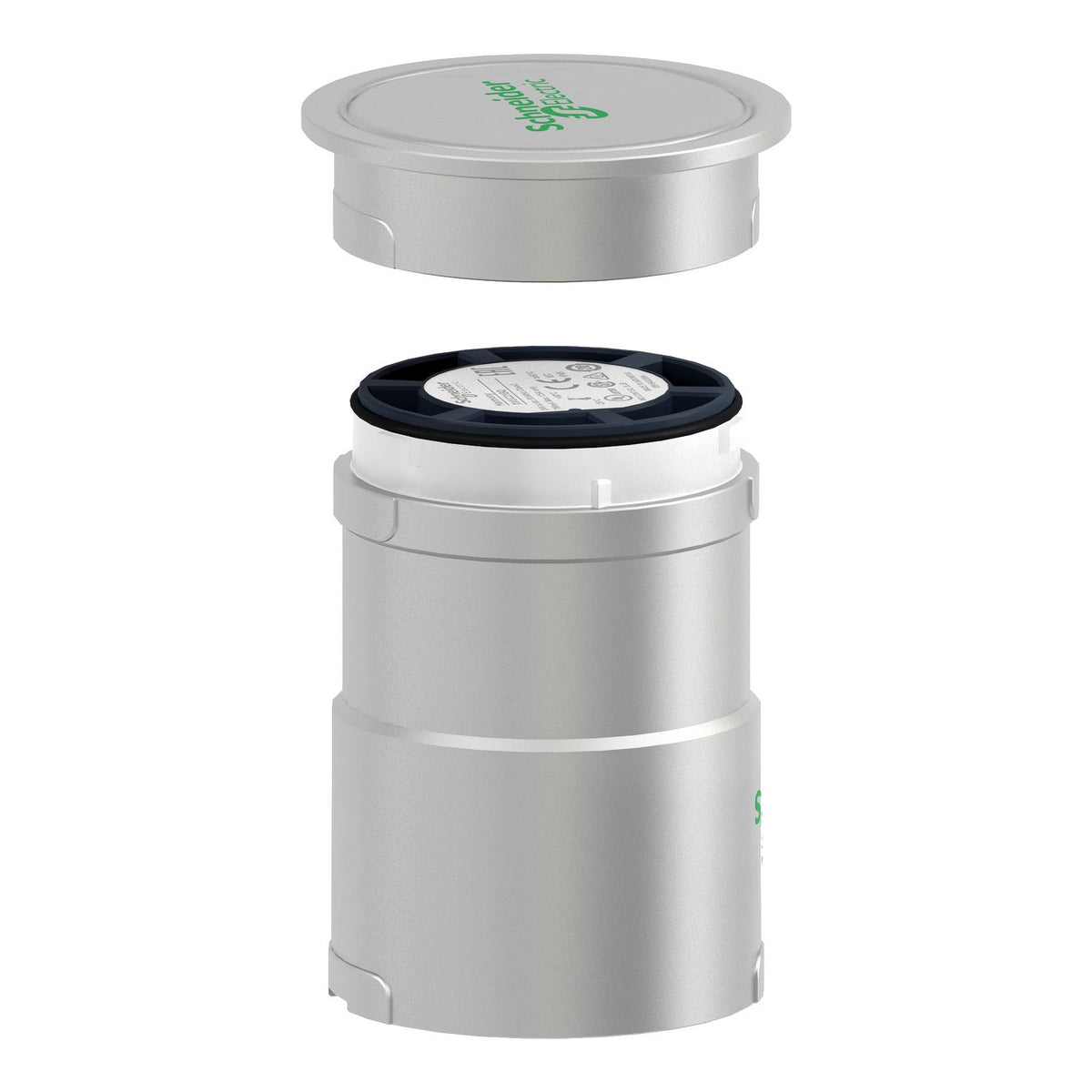

Schneider Electric XVUC21BQ – Harmony XVU silver base unit with top cover, 60 mm.

Rated operational voltage
24–DC V DC
EAN
3606480555923
Description

About the XVUC21BQ

The Schneider Electric XVUC21BQ is a Harmony XVU base unit with top cover in silver, the foundation module that a customer stacks LED, buzzer or sound units onto to build a complete 60 mm modular tower light. It is rated 24 V AC/DC -15...+10 % and carries an IP65 degree of protection for operation in dusty or wash-down environments.

Certifications & Standards

  • CSA
  • UL
  • CE

Selection Notes

Choose the silver XVUC21BQ to match the housing colour of the LED and buzzer units ordered for the same tower, since Harmony XVU bases, lenses and covers are sold as separate colour-matched parts rather than a single pre-assembled stack. At 24 V AC/DC -15...+10 %, it shares the same control-circuit supply as the rest of a 24 V automation panel, keeping the tower light on one low-voltage feed. Up to 5 indicator units can be stacked on this base before the fixing mode and overall tower weight need to be rechecked against the mounting tube or bracket.

Applications

Harmony XVU modular tower lights are specified on automotive assembly lines, packaging machines and machine tools, wherever a technician needs to see a machine's run, stop or fault state from across the floor without walking up to a control panel. The modular stacking design lets a maintenance team swap a single failed unit instead of replacing the whole tower.

Specification

Full specification

32 values · Last verified 30 Oct 2026

Main 6

Range of Product Harmony XVU
Product or Component Type Modular tower light
Beacon or indicator bank unit type Base unit
Mounting diameter 2.4 in (60 mm)
Component name XVU
Housing Colour Silver

Complementary 8

Kit composition Base unit, Cover
Fixing Mode Direct or tube fixing
Material PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene) V-0 UL 94, PC (polycarbonate) V-0 UL 94
Assembly style Customer assembly, up to 5 units
[Us] rated supply voltage 24 V AC/DC - 15...10 %
Current consumption <= 400 mA
Length 3.03 in (77 mm)
Net Weight 0.24 lb(US) (0.11 kg)

Environment 5

Product Certifications CSA, UL, CE
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -13…122 °F (-25…50 °C)
Vibration resistance 2 gn
IP degree of protection IP65
Show all 32 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number XVUC21BQ
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480555923

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.11 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XVUC21BQ

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
Quick answers

Questions about the XVUC21BQ

Which supply voltage is XVUC21BQ rated for?

The rated operational voltage of XVUC21BQ is 24–DC V DC.

What is the HS code of XVUC21BQ for customs?

The tariff (HS) code on file for XVUC21BQ is 853180.

What is the EAN of XVUC21BQ?

The EAN (GTIN) of XVUC21BQ is 3606480555923.

Where does XVUC21BQ ship from, and how fast?

XVUC21BQ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
