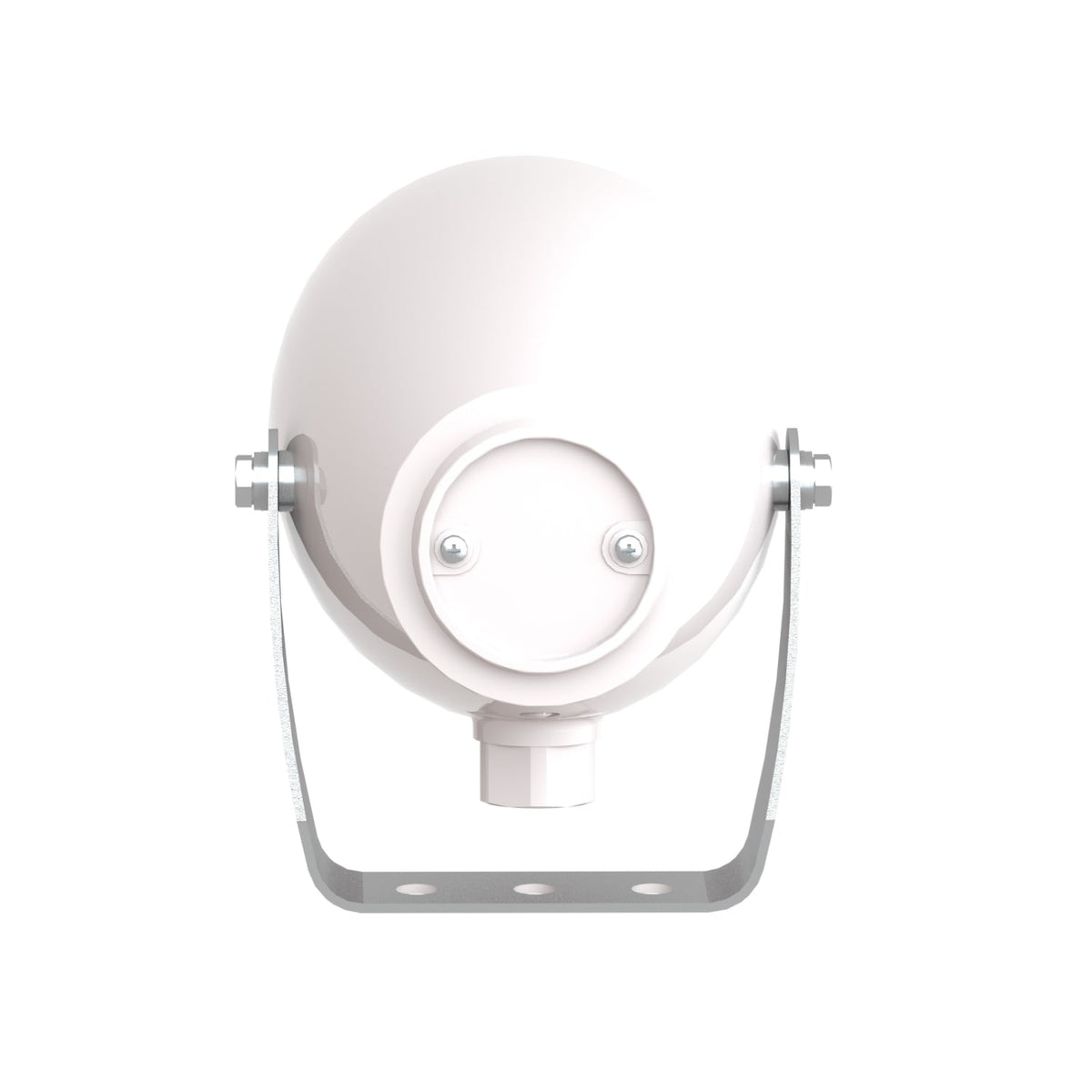

Schneider Electric XVS10MMW Harmony XVS Multisound Siren White 106 dB 2 Tones 230 V AC Beacon

The Schneider Electric XVS10MMW is a Harmony XVS multisound siren in white, rated 230 V AC and delivering a continuous or intermittent 106 dB tone at 1 m across 2 selectable tones. It is built for long-distance audible status indication on conveyors, automated industrial trucks and control panel doors, with an IP53-rated PC enclosure.

Technical Specifications

Certifications & Standards

• CE
• IEC 60947-1
• IEC 60947-5-1

Selection Notes

The XVS10MMW draws its 40 mA at 230 V from a 230 V AC source, so check available control-circuit headroom before adding it alongside other 24 V or mains-fed signaling devices on the same panel feed. At 106 dB and 1 m, it is loud enough to carry over typical shop-floor machine noise, which is why Schneider positions this unit for conveyors and truck-mounted alerts rather than quiet office or laboratory environments. IP53 protects against dust ingress and light splashing, not direct wash-down — for pressure-washed areas pair it with an IP66-rated enclosure or choose a higher-IP beacon instead.

Applications

Harmony XVS sirens are specified for long-distance indication of machine operating status on conveyor belts, automated industrial trucks and the doors of electrical control panels, anywhere a flashing light alone would be missed by an operator working with their back turned or in a noisy, visually cluttered area.
