- Part number
- XVS10BMW
- Model no
- XVS
Description
About the XVS
About the XVS

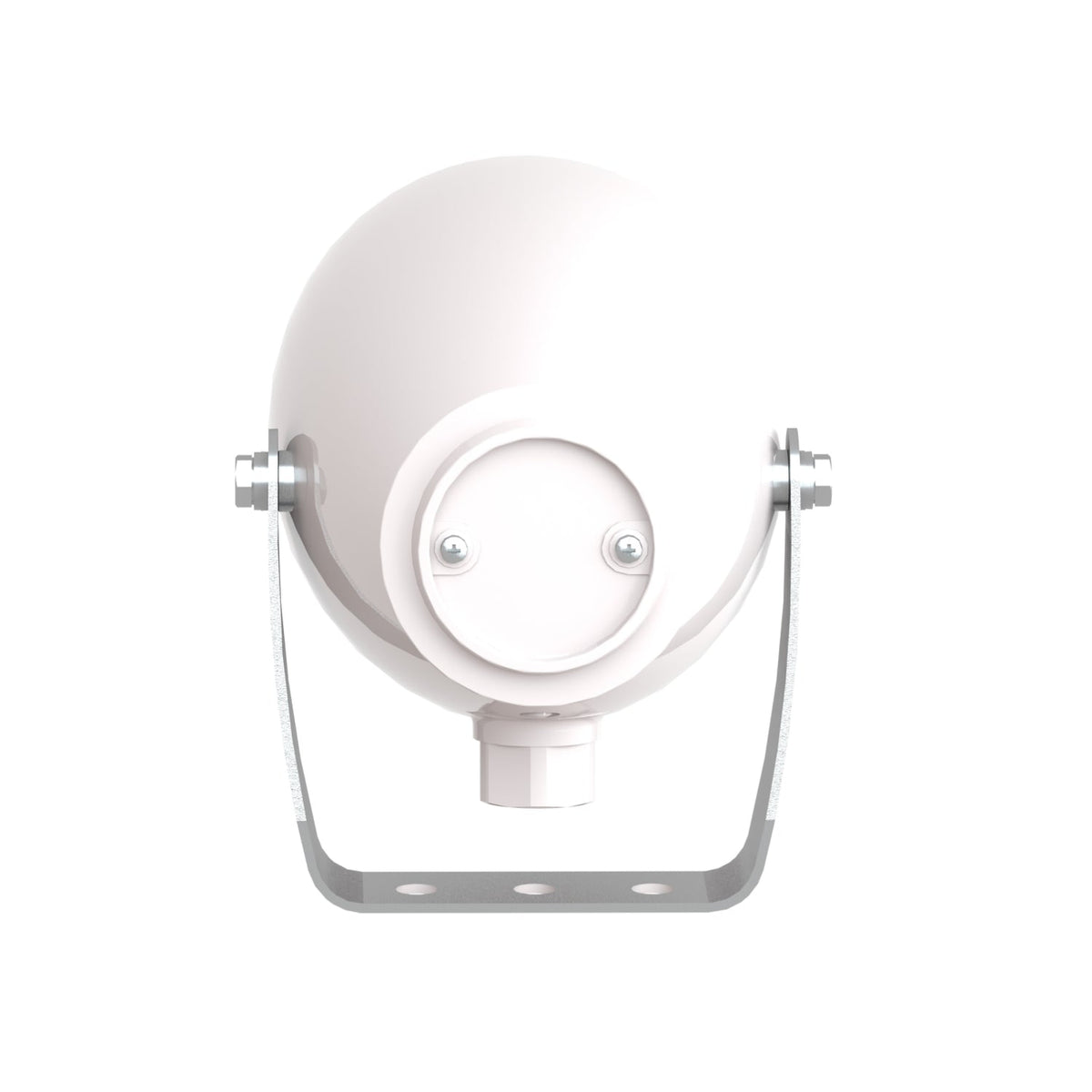

The Schneider Electric XVS10BMW is a Harmony XVS multisound siren in white, rated 12...24 V AC/DC and delivering a continuous or intermittent 106 dB tone at 1 m across 2 selectable tones. It is built for long-distance audible status indication on conveyors, automated industrial trucks and control panel doors, with an IP53-rated PC enclosure.
Certifications & Standards
- CE
- IEC 60947-1
- IEC 60947-5-1
Selection Notes
The XVS10BMW draws its 300 mA at 24 V / 500 mA at 12 V from a 12...24 V AC/DC source, so check available control-circuit headroom before adding it alongside other 24 V or mains-fed signaling devices on the same panel feed. At 106 dB and 1 m, it is loud enough to carry over typical shop-floor machine noise, which is why Schneider positions this unit for conveyors and truck-mounted alerts rather than quiet office or laboratory environments. IP53 protects against dust ingress and light splashing, not direct wash-down — for pressure-washed areas pair it with an IP66-rated enclosure or choose a higher-IP beacon instead.
Applications
Harmony XVS sirens are specified for long-distance indication of machine operating status on conveyor belts, automated industrial trucks and the doors of electrical control panels, anywhere a flashing light alone would be missed by an operator working with their back turned or in a noisy, visually cluttered area.
Specification
Full specification
Main 7
| Range of Product | Harmony XVS |
|---|---|
| Product or Component Type | Siren |
| Device short name | XVS |
| Color | White |
| Signalling type | 2 tones siren |
| [Us] rated supply voltage | 12 V AC/DC, 24 V AC/DC |
| Noise level | 106 dB continuous or intermittent tone)1 m |
Complementary 10
| Material | PC: body |
|---|---|
| Net Weight | 1.8 lb(US) (0.8 kg) |
| Marking | CE |
| [Uimp] rated impulse withstand voltage | 0.8 kV |
| Current consumption | 300 mA 24 V, 500 mA |
| Clamping Connection Capacity | <= 1 x 1.5 mm² |
| Electrical connection | Cable 0.3…0.3 in (6.5…8.5 mm) |
| Width | 4.5 in (114 mm) |
| Height | 4.5 in (114 mm) |
| Depth | 6.03 in (153.2 mm) |
Environment 6
| Standards | IEC 60947-1, IEC 60947-5-1 |
|---|---|
| Protective treatment | TC |
| Ambient Air Temperature for Storage | -31…158 °F (-35…70 °C) |
| Ambient Air Temperature for Operation | -22…122 °F (-30…50 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| IP degree of protection | IP53 |
Show all 37 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | XVS10BMW |
|---|---|
| Type designation | XVS |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3389119045346 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XVS10BMW
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60947-1
- IEC 60947-5-1
Quick answers
Questions about the XVS
Which supply voltage is XVS rated for?
The rated operational voltage of XVS is 12–24–DC V DC.
What is the HS code of XVS for customs?
The tariff (HS) code on file for XVS is 853180.
What is the EAN of XVS?
The EAN (GTIN) of XVS is 3389119045346.
Where does XVS ship from, and how fast?
XVS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
