Schneider Electric XVR13B04L Harmony XVR Rotating Mirror Beacon 130 mm Red without Buzzer 24 V AC/DC Beacon

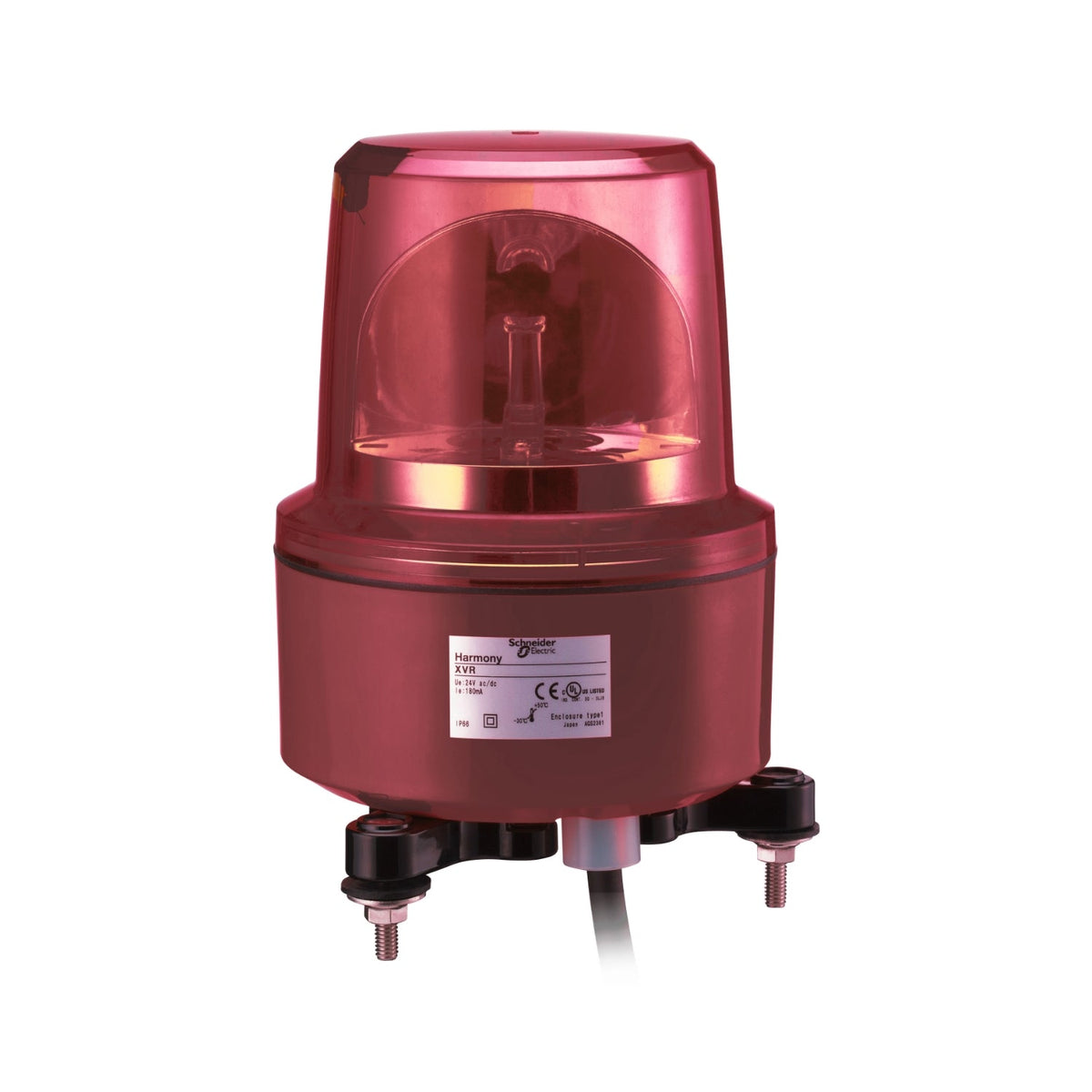

The Schneider Electric XVR13B04L is a 130 mm Harmony XVR rotating mirror beacon in red, supplied complete and pre-cabled for 24 V AC/DC operation. It carries an IP66 / IP67 IEC 60529 degree of protection and ships without an integrated buzzer, giving it a flashing frequency of 2.7 Hz for long-distance machine-status signaling on industrial equipment.

Technical Specifications

Certifications & Standards

• CE
• IEC 61000-6-2
• IEC 61000-6-4

Selection Notes

The red lens on the XVR13B04L follows the standard Harmony color code for this signaling point; confirm it matches the plant's existing color convention before ordering the 130 mm body. It has no built-in sound signaling, so pair it with a Harmony XVS siren on installations where an audible alert is also required. 24 V AC/DC supply keeps it on the same low-voltage control circuit as the rest of a machine's automation hardware. Its IP66/IP67 rating tolerates washdown, dust and vibration, which is why this variant is rated for forklifts, AGVs and outdoor machine mounting rather than indoor cabinets only. The pre-cabled 400 mm lead terminates in open wire ends, so budget a junction box or gland near the mounting point rather than a plug-in connector.

Applications

Rotating mirror beacons in the Harmony XVR range are used for machine-status indication on production lines, material handling equipment and, for the IP66/IP67 130 mm bodies, on forklifts, bulldozers and automated guided vehicles where wash-down and vibration resistance matter.
