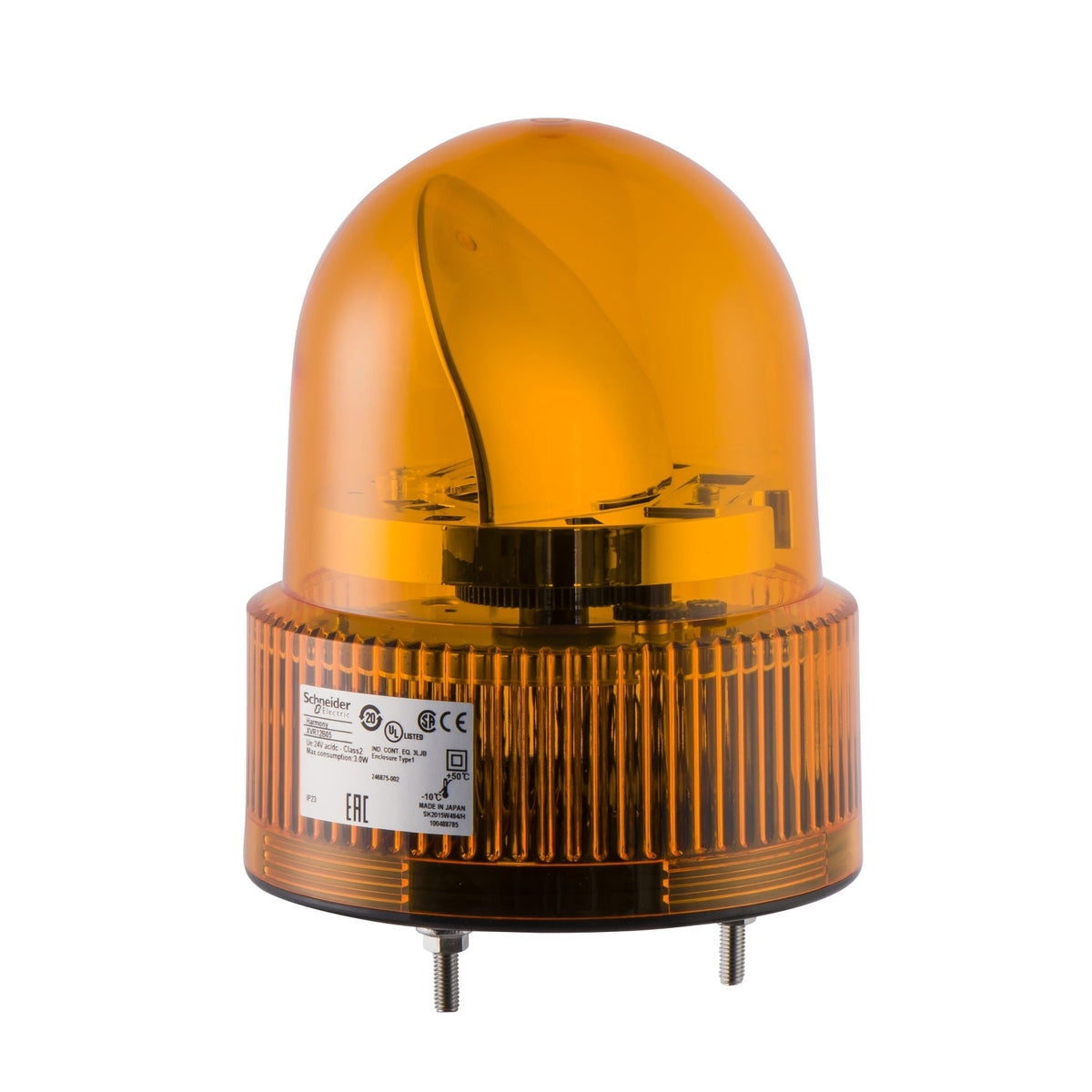

Schneider Electric XVR12B05S Harmony XVR Rotating Mirror Beacon 120 mm Orange with Buzzer 24 V AC/DC Beacon

The Schneider Electric XVR12B05S is a 120 mm Harmony XVR rotating mirror beacon in orange, supplied complete and pre-cabled for 24 V AC/DC operation. It carries an IP23 IEC 60529 degree of protection and ships with an integrated buzzer rated 50…90 dB (continuous or intermittent tone) at 1 m, giving it a flashing frequency of 2.3 Hz for long-distance machine-status signaling on industrial equipment.

Technical Specifications

Certifications & Standards

• CE
• IEC 61000-6-4
• IEC 61000-6-2

Selection Notes

The orange lens on the XVR12B05S follows the standard Harmony color code for this signaling point; confirm it matches the plant's existing color convention before ordering the 120 mm body. The built-in buzzer adds an audible alarm to the rotating light signal, which is useful where operators cannot keep the beacon in their line of sight at all times. 24 V AC/DC supply keeps it on the same low-voltage control circuit as the rest of a machine's automation hardware. Its IP23 rating is adequate for panel and cabinet-mounted indication indoors. The pre-cabled 400 mm lead terminates in open wire ends, so budget a junction box or gland near the mounting point rather than a plug-in connector.

Applications

Rotating mirror beacons in the Harmony XVR range are used for machine-status indication on production lines, material handling equipment and, for the IP66/IP67 130 mm bodies, on forklifts, bulldozers and automated guided vehicles where wash-down and vibration resistance matter.
