Part number
XVR12B05
Model no
XVR
$177.10 On request Dispatch — · From TürkiyeGet a Quote
Harmony XVR

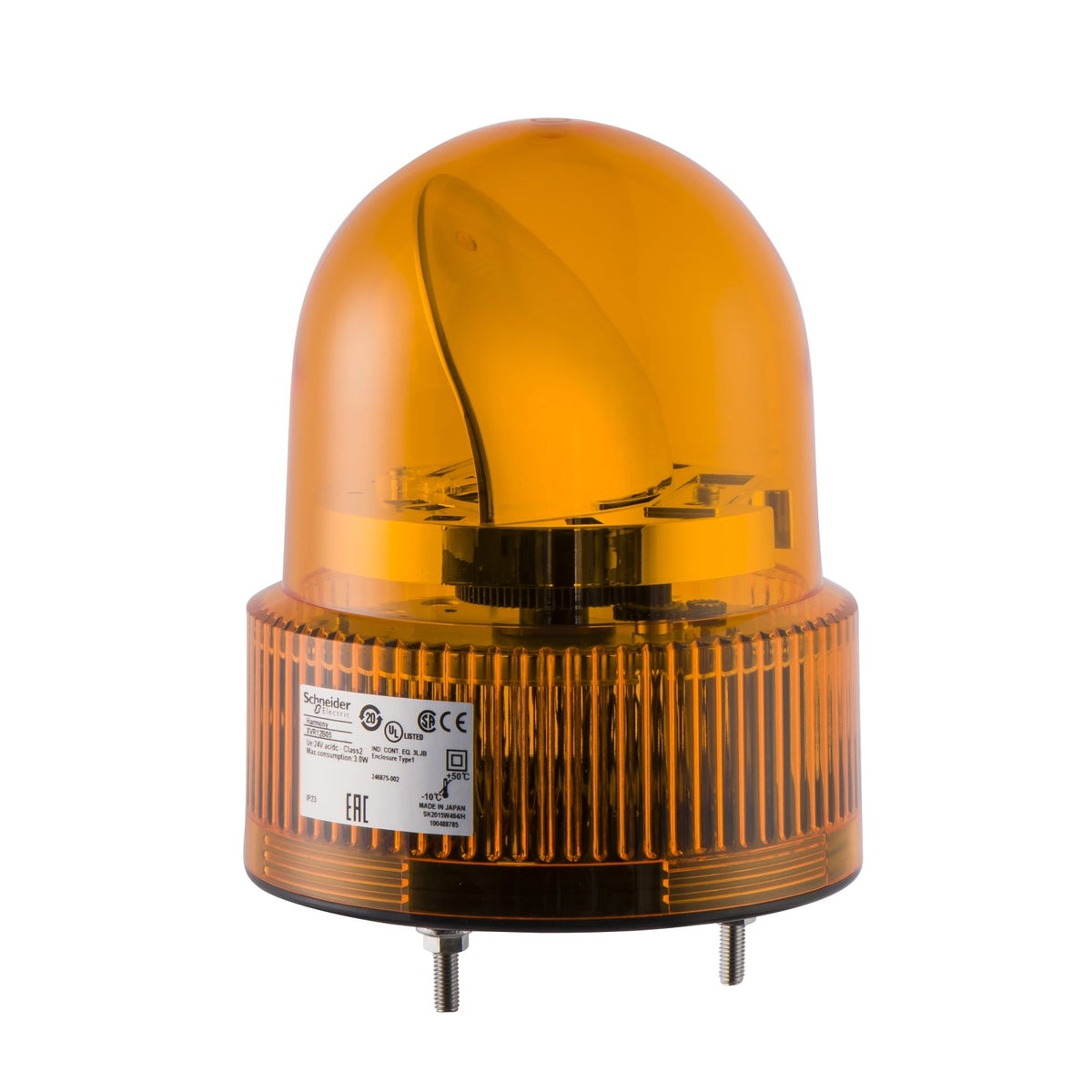

Schneider Electric XVR12B05 Harmony XVR Rotating Mirror Beacon 120 mm Orange without Buzzer 24 V AC/DC Beacon

Schneider Electric XVR12B05 – Harmony XVR 120 mm orange rotating beacon, 24 V AC/DC.

Rated operational voltage
24–DC V DC
EAN
3606480033162
Description

About the XVR

The Schneider Electric XVR12B05 is a 120 mm Harmony XVR rotating mirror beacon in orange, supplied complete and pre-cabled for 24 V AC/DC operation. It carries an IP23 IEC 60529 degree of protection and ships without an integrated buzzer, giving it a flashing frequency of 2.3 Hz for long-distance machine-status signaling on industrial equipment.

Certifications & Standards

  • CE
  • IEC 61000-6-2
  • IEC 61000-6-4

Selection Notes

The orange lens on the XVR12B05 follows the standard Harmony color code for this signaling point; confirm it matches the plant's existing color convention before ordering the 120 mm body. It has no built-in sound signaling, so pair it with a Harmony XVS siren on installations where an audible alert is also required. 24 V AC/DC supply keeps it on the same low-voltage control circuit as the rest of a machine's automation hardware. Its IP23 rating is adequate for panel and cabinet-mounted indication indoors. The pre-cabled 400 mm lead terminates in open wire ends, so budget a junction box or gland near the mounting point rather than a plug-in connector.

Applications

Rotating mirror beacons in the Harmony XVR range are used for machine-status indication on production lines, material handling equipment and, for the IP66/IP67 130 mm bodies, on forklifts, bulldozers and automated guided vehicles where wash-down and vibration resistance matter.

Specification

Full specification

40 values · Last verified 30 Oct 2026

Main 8

Range of Product Harmony XVR
Product or Component Type Prewired rotating mirror beacon
Sound signalling Without
Device short name XVR
Mounting diameter 4.7 in (120 mm)
IP degree of protection IP23 IEC 60529
[Us] rated supply voltage 24 V AC/DC
Light source High luminosity LED, orange

Complementary 13

Material ABS (acrylonitrile butadiene-styrene): body part, AS: globe
CAD overall width 4.7 in (120 mm)
CAD overall depth 4.7 in (120 mm)
Net Weight 1.1 lb(US) (0.5 kg)
Marking CE
Product mounting By 3 M5 screws
Supply voltage limits 19…30 V DC, 21.6…26.4 V AC
[Uimp] rated impulse withstand voltage 0.8 kV
Current Consumption 125 mA
Flashing frequency 2.3 Hz
Clamping Connection Capacity 0.83 mm²
AWG Gauge 18 AWG
Cable length 15.7 in (400 mm)

Environment 5

Standards IEC 61000-6-2, IEC 61000-6-4
Protective treatment TC
Ambient Air Temperature for Storage -31…158 °F (-35…70 °C)
Ambient Air Temperature for Operation 14…122 °F (-10…50 °C)
Electrical shock protection class Class II IEC 61140
Show all 40 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XVR12B05
Type designation XVR
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480033162

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.5 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XVR12B05

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 61000-6-2
  • IEC 61000-6-4
Quick answers

Questions about the XVR

Which supply voltage is XVR rated for?

The rated operational voltage of XVR is 24–DC V DC.

What is the HS code of XVR for customs?

The tariff (HS) code on file for XVR is 853180.

What is the EAN of XVR?

The EAN (GTIN) of XVR is 3606480033162.

Where does XVR ship from, and how fast?

XVR ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
