- Part number
- XVGU3SWV
Description
About the XVGU3SWV
About the XVGU3SWV

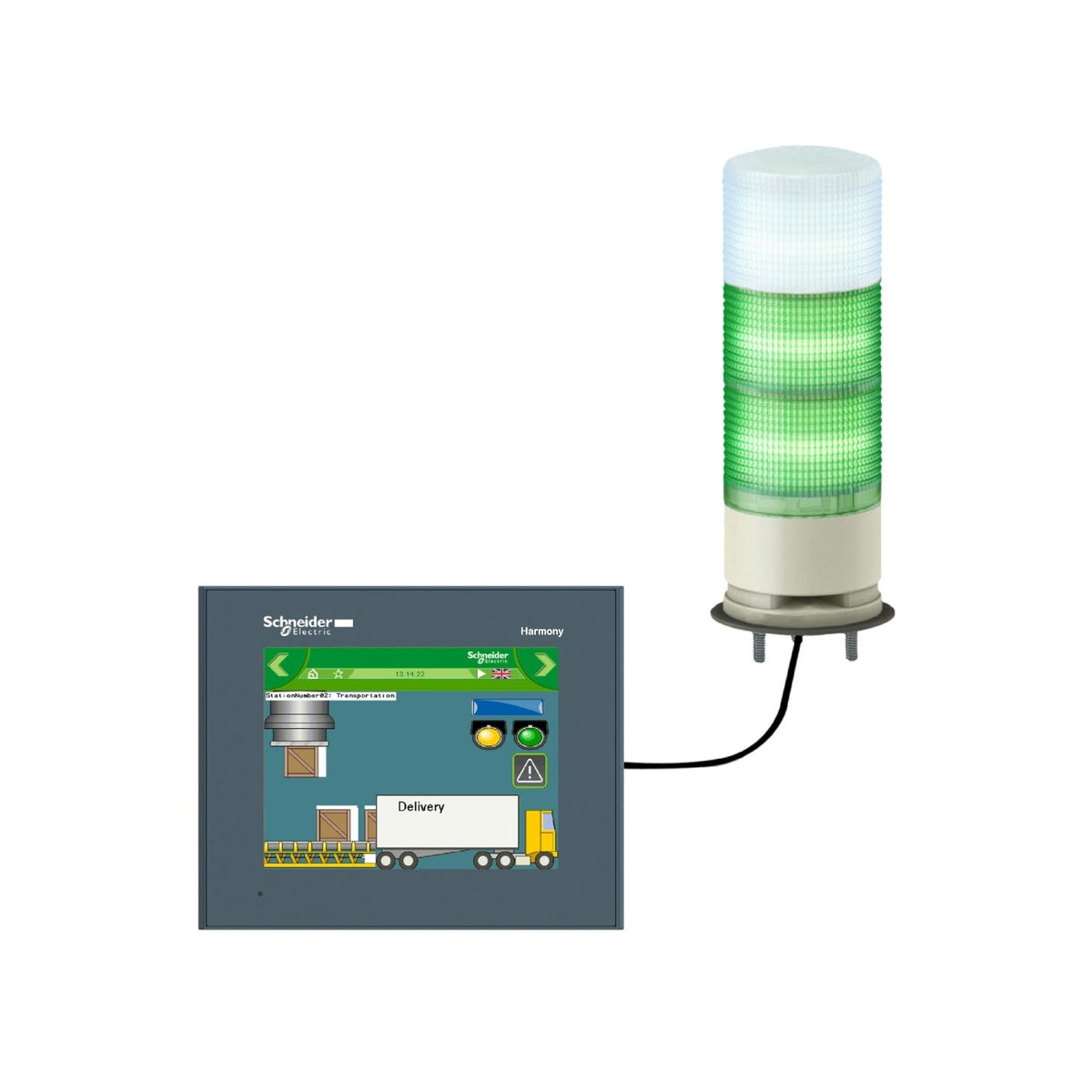

The Schneider Electric XVGU3SWV is a USB-configurable monolithic tower light from the Harmony XVGU range, with 3 tiers whose colour and flashing pattern are set independently through the HMI application. It connects via USB type A to a compatible Magelis display, runs on 5 V DC, and includes an integrated buzzer adjustable up to 82 dB.
Certifications & Standards
- GOST
- cUL
- CE
- RCM
- UL 508
- IEC 61000-6-2
- IEC 61000-6-4
Selection Notes
XVGU3SWV is the direct mount version of the Harmony XVGU USB tower light: because colour and flashing pattern are set in software rather than by part number, the same unit can represent any of the usual red/amber/green machine states without stocking separate SKUs per colour combination. Choose direct mount over the alternative fixing when it matches the existing panel cut-out or pole; the USB link and 5 V DC supply are identical either way, so switching mounting style does not change the HMI programming.
Specification
Full specification
Main 9
| Range of Product | Harmony XVGU |
|---|---|
| Product or Component Type | USB configurable monolithic tower light |
| Beacon or indicator bank unit type | 3 illuminated units |
| Sound signalling | Buzzer |
| Mounting diameter | 2.4 in (60 mm) |
| Component name | XVGU |
| Light source | LED steady or flashing multi-colour |
| Indicator bank base type | Base with integrated buzzer |
| Noise level | 82 dB 2 tone buzzer)1 m |
Complementary 11
| Material | PC: globe |
|---|---|
| Device mounting | Direct mounting |
| Light block color | Clear/clear/clear |
| [Us] rated supply voltage | 5 V DC |
| Connector Type | USB type A female |
| Current Consumption | 400 mA |
| Sound frequency | 2700 Hz, 3800 Hz |
| Power Consumption in W | 2 W |
| Flashing frequency | 2 Hz flashing LED unit, 1 Hz flashing LED unit |
| Product compatibility | Vijeo Designer 4.6 indoor use only, HMIGTO, XBTGT...., XBTGK...., XBTGC1., XBTGC2., XBTGH |
| Net Weight | 0.7 lb(US) (0.3 kg) |
Environment 6
| Standards | IEC 61000-6-2, IEC 61000-6-4 |
|---|---|
| Product Certifications | GOST, cUL, CE, RCM, UL 508 |
| Ambient Air Temperature for Storage | -31…158 °F (-35…70 °C) |
| Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) |
| Electrical shock protection class | Class I |
| IP Degree of Protection | IP54 |
Show all 39 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | XVGU3SWV |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480530944 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | ID |
|---|---|
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XVGU3SWV
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CE
- IEC 61000-6-2
- IEC 61000-6-4
Quick answers
Questions about the XVGU3SWV
What is the HS code of XVGU3SWV for customs?
The tariff (HS) code on file for XVGU3SWV is 853180.
What is the EAN of XVGU3SWV?
The EAN (GTIN) of XVGU3SWV is 3606480530944.
Where does XVGU3SWV ship from, and how fast?
XVGU3SWV ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
