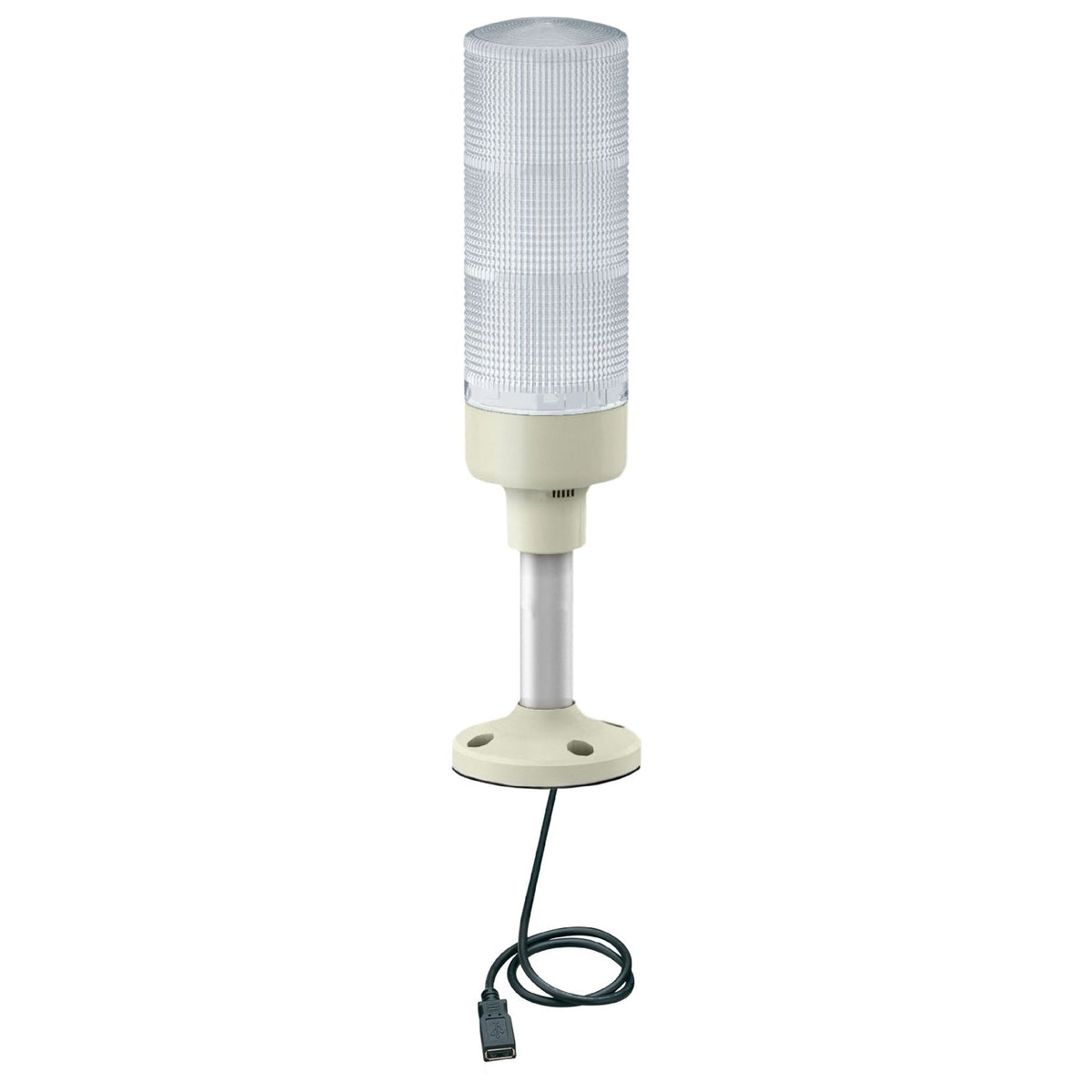

Schneider Electric XVGU3SHAV Harmony XVGU USB Configurable Tower Light 60 mm Multi-Colour Signal Tower

The Schneider Electric XVGU3SHAV is a USB-configurable monolithic tower light from the Harmony XVGU range, with 3 tiers whose colour and flashing pattern are set independently through the HMI application. It connects via USB type A to a compatible Magelis display, runs on 5 V DC, and includes an integrated buzzer adjustable up to 85 dB.

Technical Specifications

Certifications & Standards

• GOST
• CE
• UL 508
• cUL
• RCM
• IEC 61000-6-2
• IEC 61000-6-4

Selection Notes

XVGU3SHAV is the fixing plate version of the Harmony XVGU USB tower light: because colour and flashing pattern are set in software rather than by part number, the same unit can represent any of the usual red/amber/green machine states without stocking separate SKUs per colour combination. Choose fixing plate over the alternative fixing when it matches the existing panel cut-out or pole; the USB link and 5 V DC supply are identical either way, so switching mounting style does not change the HMI programming.
