Part number
XVGB4SM
$122.71 On request Dispatch — · From TürkiyeGet a Quote
Harmony XVG

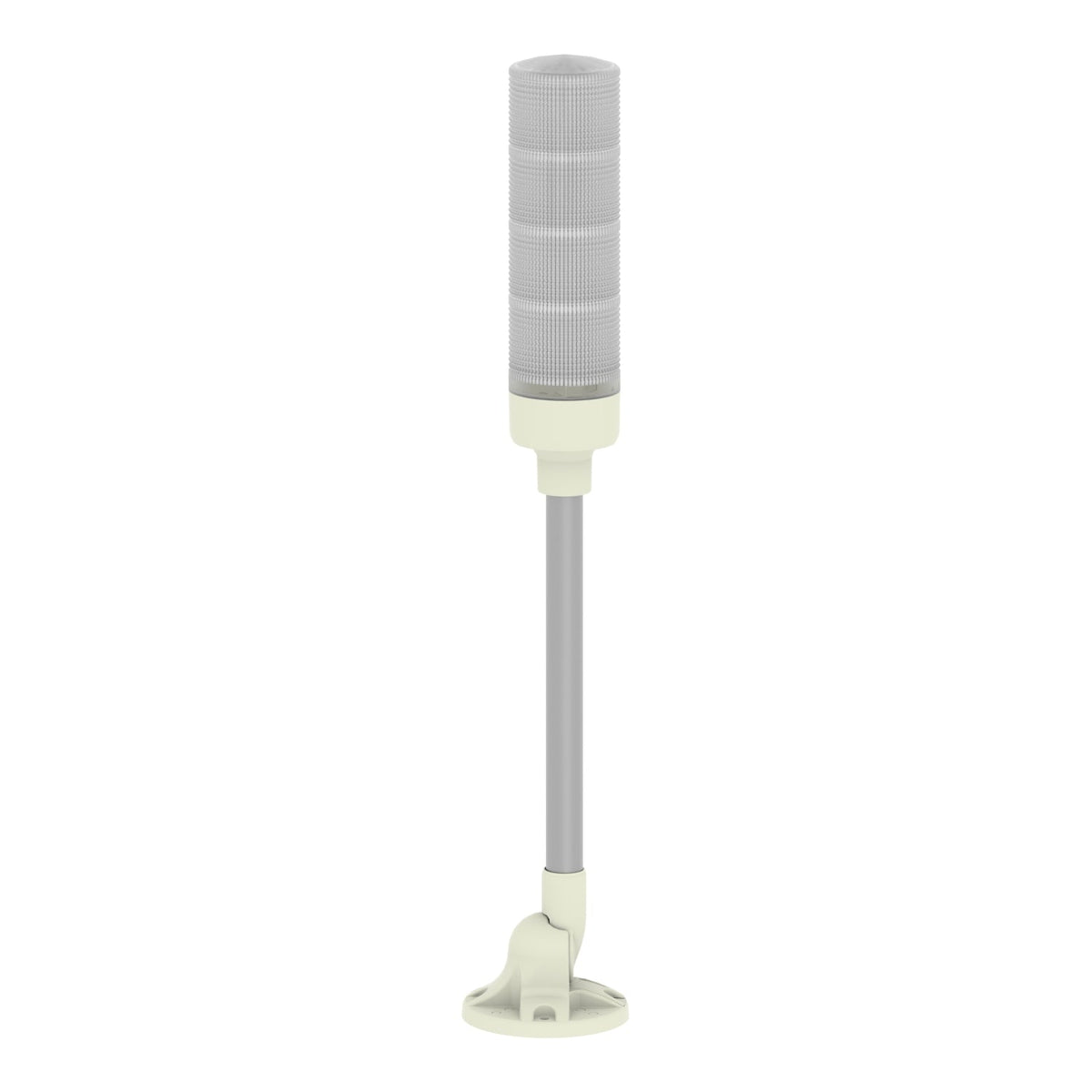

Schneider Electric XVGB4SM Harmony XVG 60 mm Red Amber Green Blue Steady 24 V AC/DC Fold Bracket Signal Tower

Schneider Electric XVGB4SM - Harmony XVG 4-colour steady tower light, 60 mm, 24 V AC/DC, IP40.

Rated operational voltage
24–DC V DC
Description

About the XVGB4SM

The Schneider Electric XVGB4SM is a complete pre-wired monolithic tower light from the Harmony XVG range, combining 4 steady LED colour segments (red/amber/green/blue) on a 60 mm diameter body with an integrated buzzer. It runs on 24 V AC/DC, mounts by tube mounting with foldable bracket, and reaches IP40 ingress protection for direct installation on the machine.

Certifications & Standards

  • CE
  • EAC

Selection Notes

XVGB4SM uses tube mounting with foldable bracket rather than the fixed L-bracket version, which sets its IP40 ingress rating and 0.45 kg weight. The integrated buzzer adds 85 dB of audible signalling on top of the 4-colour light stack, useful where operators are not always facing the machine. Pick this mounting style when the panel or machine frame already matches its fixing pattern; swapping between the L-bracket, fixing-plate, foldable-bracket, direct-tube and base-mount variants mainly changes how the tube is anchored, not the light logic itself.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Main 10

Range of product Harmony XVG
Product or component type Complete pre-wired monolithic tower light
Beacon or indicator bank unit type 4 illuminated units
Material PC (UL94 V-2): globe, ABS (UL94HB): tube body, Aluminium: tube
Mounting diameter 60 mm
Component name XVG
Device mounting Tube mounting with foldable bracket
Light source LED steady red, LED steady green, LED steady amber, LED steady blue
Light block color Red/orange/green/blue
Indicator bank base type Base with integrated buzzer

Complementary 9

[Us] rated supply voltage 24 V AC/DC
Cable cross section 0.33 mm²
Discrete output type PNP and NPN
[Uimp] rated impulse withstand voltage 0.5 kV
Current consumption 207 mA
Noise level 85 dB
Power consumption in W 4.8 W
Fundamental frequency 2.64 kHz
Net weight 0.45 kg

Environment 4

Product certifications CE, EAC
Ambient air temperature for storage -35…70 °C
Ambient air temperature for operation -10…50 °C
IP degree of protection IP40
Show all 52 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number XVGB4SM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.000 cm
Package 1 Width 13.900 cm
Package 1 Length 54.900 cm
Package 1 Weight 650.000 g
Unit Type of Package 2 S04
Number of Units in Package 2 8
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 5.850 kg
Unit Type of Package 3 P06
Number of Units in Package 3 32
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 31.400 kg
Shipping weight 0.45 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XVGB4SM

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • EAC
Quick answers

Questions about the XVGB4SM

Which supply voltage is XVGB4SM rated for?

The rated operational voltage of XVGB4SM is 24–DC V DC.

What is the HS code of XVGB4SM for customs?

The tariff (HS) code on file for XVGB4SM is 853180.

Where does XVGB4SM ship from, and how fast?

XVGB4SM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
