Part number
XVGB2ST
$78.43 On request Dispatch — · From TürkiyeGet a Quote
Harmony XVG

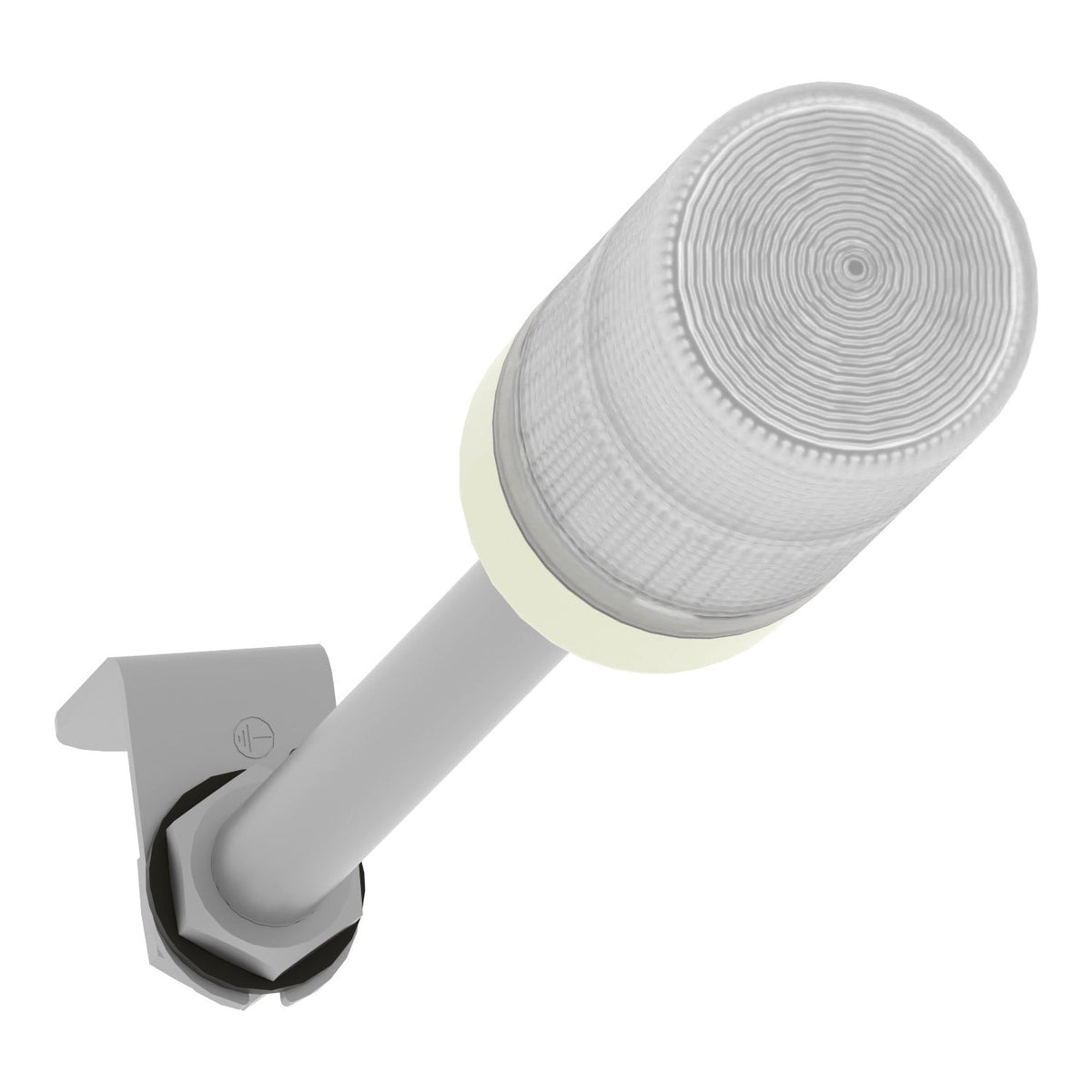

Schneider Electric XVGB2ST Harmony XVG 60 mm Red Green Steady 24 V AC/DC Direct Mount Signal Tower

Schneider Electric XVGB2ST - Harmony XVG 2-colour steady tower light, 60 mm, 24 V AC/DC, IP23.

Rated operational voltage
24–DC V DC
Description

About the XVGB2ST

The Schneider Electric XVGB2ST is a complete pre-wired monolithic tower light from the Harmony XVG range, combining 2 steady LED colour segments (red/green) on a 60 mm diameter body with an integrated buzzer. It runs on 24 V AC/DC, mounts by direct tube mounting, and reaches IP23 ingress protection for direct installation on the machine.

Certifications & Standards

  • CE
  • EAC

Selection Notes

XVGB2ST uses direct tube mounting rather than the bracket-mounted versions, which sets its IP23 ingress rating and 0.36 kg weight. The integrated buzzer adds 85 dB of audible signalling on top of the 2-colour light stack, useful where operators are not always facing the machine. Pick this mounting style when the panel or machine frame already matches its fixing pattern; swapping between the L-bracket, fixing-plate, foldable-bracket, direct-tube and base-mount variants mainly changes how the tube is anchored, not the light logic itself.

Specification

Full specification

45 values · Last verified 30 Oct 2026

Main 10

Range of product Harmony XVG
Product or component type Complete pre-wired monolithic tower light
Beacon or indicator bank unit type 2 illuminated units
Material PC (UL94 V-2): globe, ABS (UL94HB): tube body, Aluminium: tube
Mounting diameter 60 mm
Component name XVG
Device mounting Direct tube mounting
Light source LED steady red, LED steady green
Light block color Red/green
Indicator bank base type Base with integrated buzzer

Complementary 8

[Us] rated supply voltage 24 V AC/DC
Cable cross section 0.33 mm²
Discrete output type PNP and NPN
[Uimp] rated impulse withstand voltage 0.5 kV
Current consumption 140 mA
Power consumption in W 3.1 W
Fundamental frequency 2.64 kHz
Net weight 0.36 kg

Environment 4

Product certifications CE, EAC
Ambient air temperature for storage -35…70 °C
Ambient air temperature for operation -10…50 °C
IP degree of protection IP23
Show all 45 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number XVGB2ST
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.8 cm
Package 1 Width 13.0 cm
Package 1 Length 8.5 cm
Package 1 Weight 464.0 g
Unit Type of Package 2 P06
Number of Units in Package 2 30
Package 2 Height 75 cm
Package 2 Width 40 cm
Package 2 Length 80 cm
Package 2 Weight 13.92 kg
Shipping weight 0.36 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XVGB2ST

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • EAC
Quick answers

Questions about the XVGB2ST

Which supply voltage is XVGB2ST rated for?

The rated operational voltage of XVGB2ST is 24–DC V DC.

What is the HS code of XVGB2ST for customs?

The tariff (HS) code on file for XVGB2ST is 853180.

Where does XVGB2ST ship from, and how fast?

XVGB2ST ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
