Part number
XVGB2SH
$84.12 On request Dispatch — · From TürkiyeGet a Quote
Harmony XVG

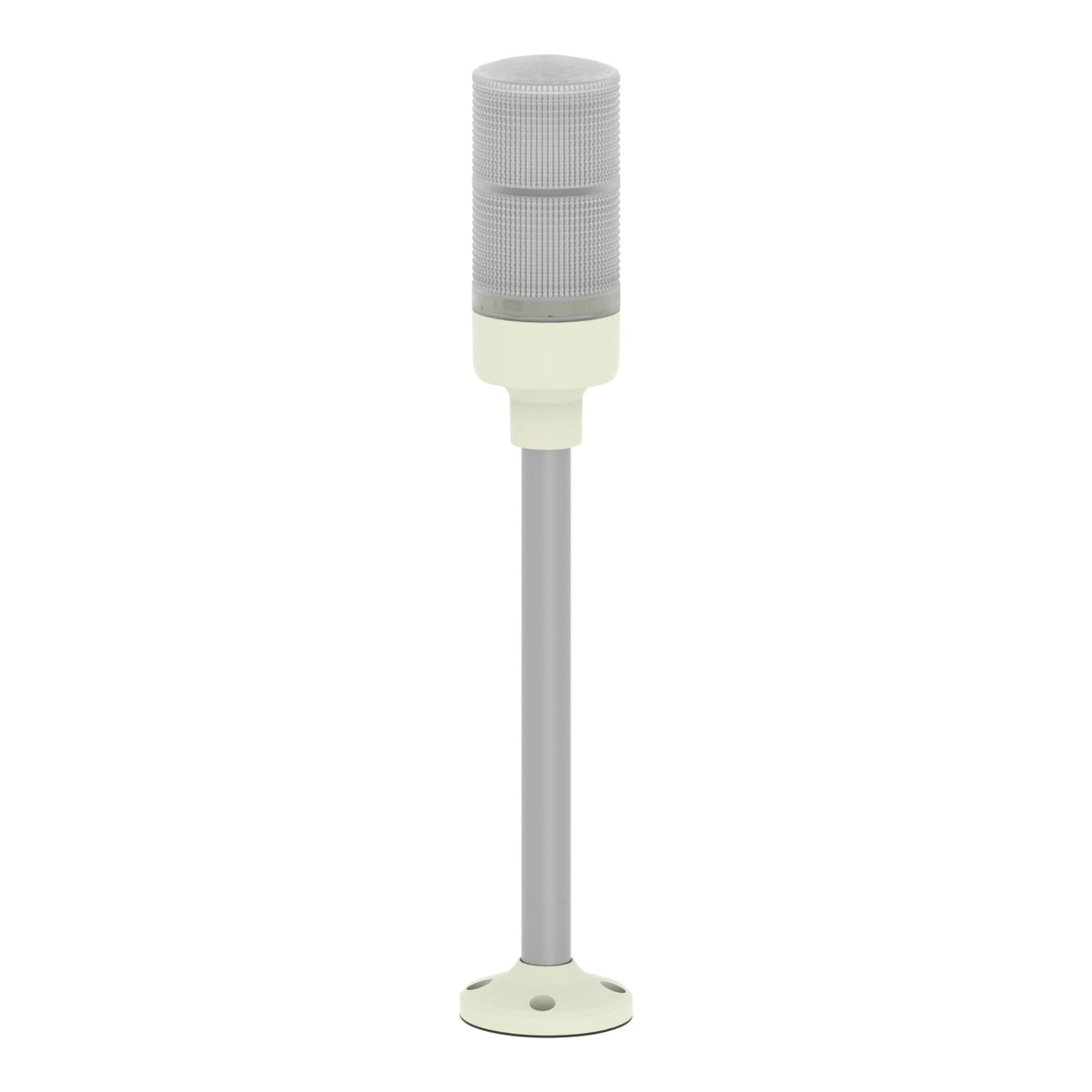

Schneider Electric XVGB2SH Harmony XVG 60 mm Red Green Steady 24 V AC/DC Fixing Plate Signal Tower

Schneider Electric XVGB2SH - Harmony XVG 2-colour steady tower light, 60 mm, 24 V AC/DC, IP42.

Rated operational voltage
24–DC V DC
Description

About the XVGB2SH

The Schneider Electric XVGB2SH is a complete pre-wired monolithic tower light from the Harmony XVG range, combining 2 steady LED colour segments (red/green) on a 60 mm diameter body with an integrated buzzer. It runs on 24 V AC/DC, mounts by tube mounting with fixing plate, and reaches IP42 ingress protection for direct installation on the machine.

Certifications & Standards

  • CE
  • EAC

Selection Notes

XVGB2SH uses tube mounting with fixing plate rather than the L-bracket or direct-mount versions, which sets its IP42 ingress rating and 0.33 kg weight. The integrated buzzer adds 85 dB of audible signalling on top of the 2-colour light stack, useful where operators are not always facing the machine. Pick this mounting style when the panel or machine frame already matches its fixing pattern; swapping between the L-bracket, fixing-plate, foldable-bracket, direct-tube and base-mount variants mainly changes how the tube is anchored, not the light logic itself.

Specification

Full specification

46 values · Last verified 30 Oct 2026

Main 10

Range of product Harmony XVG
Product or component type Complete pre-wired monolithic tower light
Beacon or indicator bank unit type 2 illuminated units
Material PC (UL94 V-2): globe, ABS (UL94HB): tube body, Aluminium: tube
Mounting diameter 60 mm
Component name XVG
Device mounting Tube mounting with fixing plate
Light source LED steady red, LED steady green
Light block color Red/green
Indicator bank base type Base with integrated buzzer

Complementary 9

[Us] rated supply voltage 24 V AC/DC
Cable cross section 0.33 mm²
Discrete output type PNP and NPN
[Uimp] rated impulse withstand voltage 0.5 kV
Current consumption 140 mA
Noise level 85 dB
Power consumption in W 3.1 W
Fundamental frequency 2.64 kHz
Net weight 0.33 kg

Environment 4

Product certifications CE, EAC
Ambient air temperature for storage -35…70 °C
Ambient air temperature for operation -10…50 °C
IP degree of protection IP42
Show all 46 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.

Identification 6

Part number XVGB2SH
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 8.3 cm
Package 1 Width 14.1 cm
Package 1 Length 53.0 cm
Package 1 Weight 532.0 g
Unit Type of Package 2 S04
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 4.16 kg
Shipping weight 0.33 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XVGB2SH

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • EAC
Quick answers

Questions about the XVGB2SH

Which supply voltage is XVGB2SH rated for?

The rated operational voltage of XVGB2SH is 24–DC V DC.

What is the HS code of XVGB2SH for customs?

The tariff (HS) code on file for XVGB2SH is 853180.

Where does XVGB2SH ship from, and how fast?

XVGB2SH ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
