- Part number
- XVGB2S
Description
About the XVGB2S
About the XVGB2S

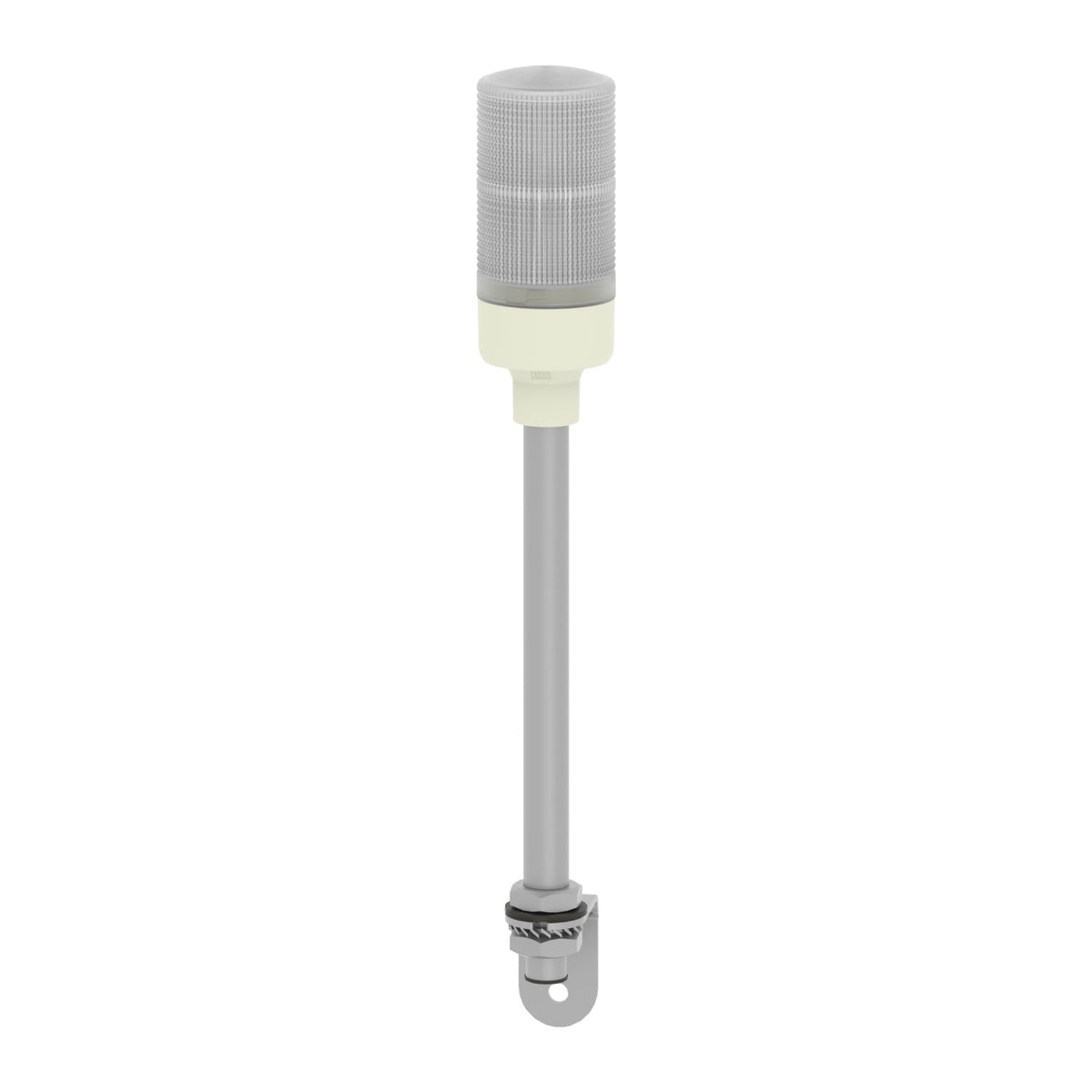

The Schneider Electric XVGB2S is a complete pre-wired monolithic tower light from the Harmony XVG range, combining 2 steady LED colour segments (red/green) on a 60 mm diameter body with an integrated buzzer. It runs on 24 V AC/DC, mounts by tube with l bracket, and reaches IP23 ingress protection for direct installation on the machine.
Certifications & Standards
- CE
- EAC
Selection Notes
XVGB2S uses tube with l bracket rather than the fixing-plate or foldable-bracket versions, which sets its IP23 ingress rating and 0.43 kg weight. The integrated buzzer adds 85 dB of audible signalling on top of the 2-colour light stack, useful where operators are not always facing the machine. Pick this mounting style when the panel or machine frame already matches its fixing pattern; swapping between the L-bracket, fixing-plate, foldable-bracket, direct-tube and base-mount variants mainly changes how the tube is anchored, not the light logic itself.
Specification
Full specification
Main 10
| Range of product | Harmony XVG |
|---|---|
| Product or component type | Complete pre-wired monolithic tower light |
| Beacon or indicator bank unit type | 2 illuminated units |
| Material | PC (UL94 V-2): globe, ABS (UL94HB): tube body, Aluminium: tube |
| Mounting diameter | 60 mm |
| Component name | XVG |
| Device mounting | Tube with L bracket |
| Light source | LED steady red, LED steady amber |
| Light block color | Red/green |
| Indicator bank base type | Base with integrated buzzer |
Complementary 9
| [Us] rated supply voltage | 24 V AC/DC |
|---|---|
| Cable cross section | 0.33 mm² |
| Discrete output type | PNP and NPN |
| [Uimp] rated impulse withstand voltage | 0.5 kV |
| Current consumption | 140 mA |
| Noise level | 85 dB |
| Power consumption in W | 3.1 W |
| Fundamental frequency | 2.64 kHz |
| Net weight | 0.43 kg |
Environment 4
| Product certifications | CE, EAC |
|---|---|
| Ambient air temperature for storage | -35…70 °C |
| Ambient air temperature for operation | -10…50 °C |
| IP degree of protection | IP23 |
Show all 46 specifications ↓ Show less ↑23 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | XVGB2S |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.6 cm |
| Package 1 Width | 14.3 cm |
| Package 1 Length | 55.8 cm |
| Package 1 Weight | 625.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 3.2 kg |
| Shipping weight | 0.43 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for XVGB2S
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- EAC
Quick answers
Questions about the XVGB2S
Which supply voltage is XVGB2S rated for?
The rated operational voltage of XVGB2S is 24–DC V DC.
What is the HS code of XVGB2S for customs?
The tariff (HS) code on file for XVGB2S is 853180.
Where does XVGB2S ship from, and how fast?
XVGB2S ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
