Part number
XVB7CM9
Model no
XVB7
$154.33 On request Dispatch — · From TürkiyeGet a Quote
Harmony XVB7

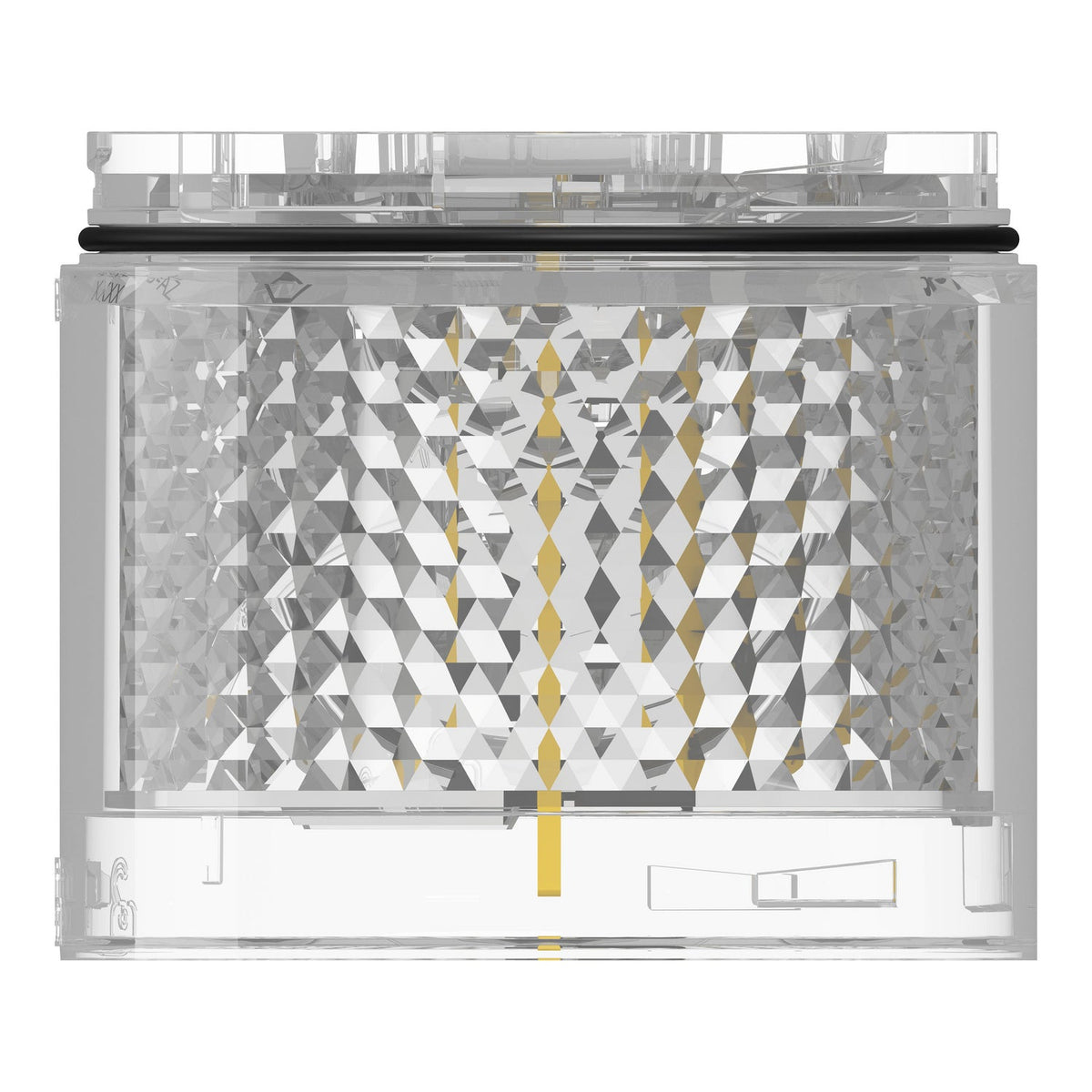

Schneider Electric XVB7CM9 Harmony XVB7 Light Module Ø70 mm Multi-Colour Multi-Pattern 24 V AC/DC Signal Tower

Schneider Electric XVB7CM9 - Harmony XVB7 multi-colour multi-pattern light module, Ø70 mm, 24 V AC/DC.

Rated operational voltage
24–DC V DC
EAN
3606487129349
Description

About the XVB7

The Schneider Electric XVB7CM9 is a multi-function light module for the Harmony XVB7 range of Ø 70 mm modular tower lights. It connects to a base and other light or sound modules, runs on 24 V AC/DC, and its LED can be DIP-switch set to any of 8 colours and 4 patterns (steady, blinking, 2x flash or 3x flash) behind a clear lens.

Certifications & Standards

  • cULus
  • CCC
  • RCM
  • UKCA
  • CE
  • UL 60947-5-1
  • IEC 60947-5-1
  • CSA C22.2 No 60947-5-1

Selection Notes

XVB7CM9 replaces what would otherwise be several single-colour modules: the same lens can be set to red, green, blue or any of the other 8 colours and switched between steady, blinking and two flash rates from one DIP switch, which is useful when a machine status set changes during commissioning. The 50 000 h LED service life matches the fixed-colour modules in the range, so choosing this module over single-colour units is a stocking and flexibility decision, not a durability trade-off.

Specification

Full specification

42 values · Last verified 30 Oct 2026

Main 10

Range of Product Harmony XVB7
Product or Component Type Light module
Device Composition Standard lens
Device short name XVB7
Mounting diameter 2.8 in (70 mm)
Signalling type Multi function
Light color LED, multi-colour
Material PC (polycarbonate)
Net Weight 0.236 lb(US) (0.107 kg)
Mounting position Upright/inverted

Complementary 9

Control Type DIP switch for color/light pattern
Service life in hours 50000 h
[Ue] rated operational voltage 24 V AC/DC
Rated operational voltage limits 21.6...26.4 V AC/DC
Current consumption 50 mA 24 V AC, 55 mA 24 V DC
Inrush current 0.5 A
Electrical shock protection class Class II
[Ui] Rated Insulation Voltage 50 V
[Uimp] rated impulse withstand voltage 0.5 kV

Environment 9

Pollution degree 2
Ambient Air Temperature for Operation -13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
IP Degree of Protection IP66
Environmental Type ratings UL type 4X/13
Vibration resistance 6 gn +/- 0.5 mm 10…500 Hz)in operation
Shock resistance 30 gn 6 ms) in operation
Standards UL 60947-5-1, IEC 60947-5-1, CSA C22.2 No 60947-5-1
Product Certifications cULus, CCC, RCM, UKCA, CE
Show all 42 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XVB7CM9
Type designation XVB7
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487129349

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin DE
Shipping weight 0.107 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XVB7CM9

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • UL 60947-5-1
  • IEC 60947-5-1
  • CSA C22.2 No 60947-5-1
Quick answers

Questions about the XVB7

Which supply voltage is XVB7 rated for?

The rated operational voltage of XVB7 is 24–DC V DC.

What is the HS code of XVB7 for customs?

The tariff (HS) code on file for XVB7 is 853180.

What is the EAN of XVB7?

The EAN (GTIN) of XVB7 is 3606487129349.

Where does XVB7 ship from, and how fast?

XVB7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
