Part number
XVB7C9S
Model no
XVB7
$63.25 On request Dispatch — · From TürkiyeGet a Quote
Harmony XVB7

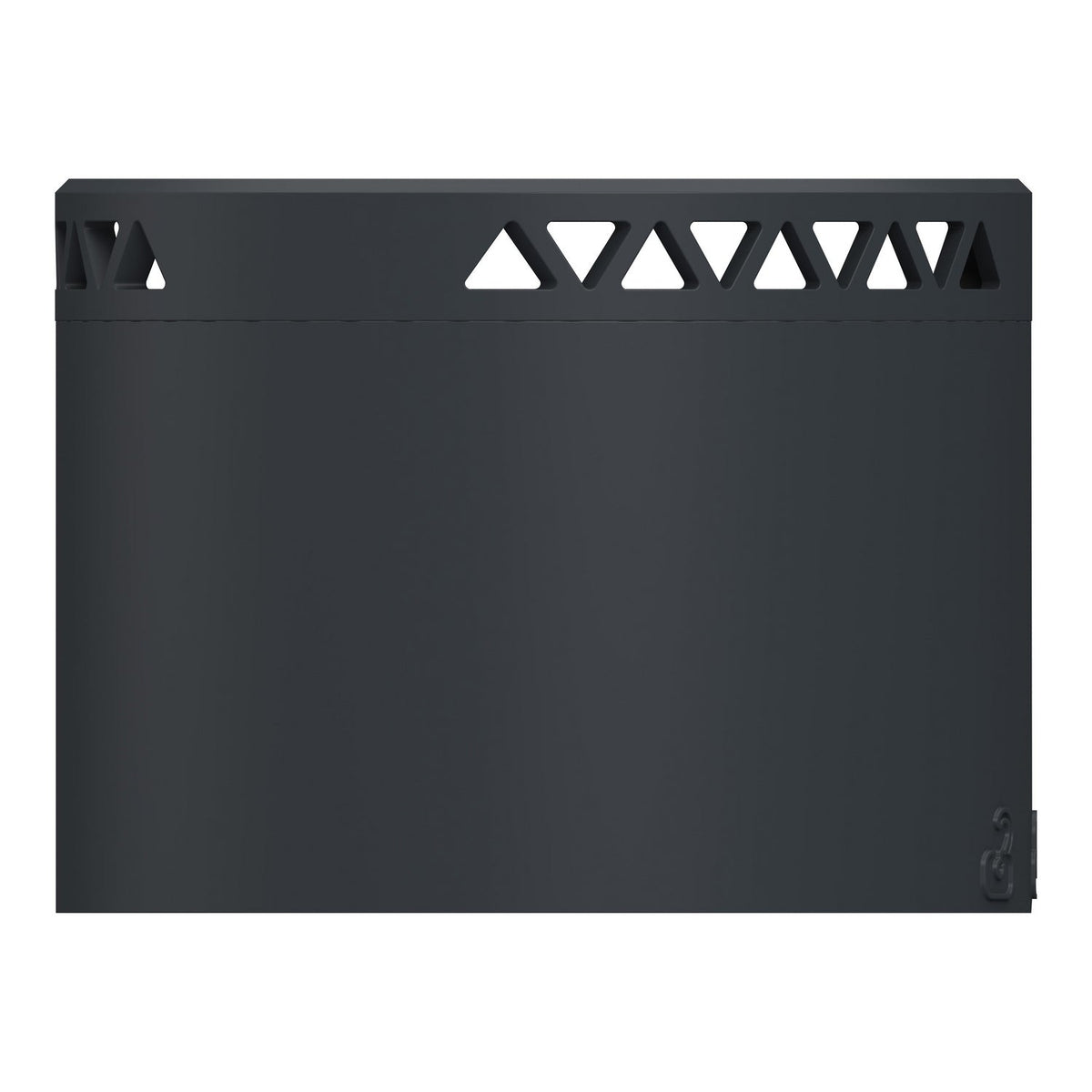

Schneider Electric XVB7C9S Harmony XVB7 Sound Module Ø70 mm 2-Tone Buzzer 24 V AC/DC Signal Tower

Schneider Electric XVB7C9S - Harmony XVB7 2-tone sound module, Ø70 mm, 24 V AC/DC, 88-102 dB, IP66.

Rated operational voltage
24–DC V DC
EAN
3606487129615
Description

About the XVB7

The Schneider Electric XVB7C9S is a 2-tone sound module for the Harmony XVB7 range of Ø 70 mm modular tower lights. It connects to a base unit and light modules to complete the assembly, runs on 24 V AC/DC, and produces a continuous or intermittent buzzer tone adjustable from 88 dB to 102 dB at 1 m, reaching IP66.

Certifications & Standards

  • cULus
  • CCC
  • RCM
  • UKCA
  • CE
  • UL 60947-5-1
  • IEC 60947-5-1
  • CSA C22.2 No 60947-5-1

Selection Notes

XVB7C9S adds an audible channel to a Harmony XVB7 assembly without taking up a light-module position, since it mounts as its own tier above the base. The 88–102 dB adjustable range and DIP-switch tone selection let one module cover both a quiet indoor cell and a noisier shop floor by changing the setting rather than the part. Add it when operators are not consistently facing the tower, or when the base module chosen for the stack does not already have an integrated buzzer.

Specification

Full specification

42 values · Last verified 30 Oct 2026

Main 9

Range of Product Harmony XVB7
Device Composition 2 tone buzzer
Device short name XVB7
Mounting diameter 2.8 in (70 mm)
Signalling type Continuous or intermittent buzzer, 2 tones
Material Polycarbonate
Housing Colour Dark grey
Net Weight 0.176 lb(US) (0.080 kg)
Mounting position Upright/inverted

Complementary 10

Noise level 88…102 dB 1 m
Pulse frequency 1 Hz
Control Type DIP switch for tone/loudness
[Ue] rated operational voltage 24 V AC/DC
Rated operational voltage limits 21.6...26.4 V AC/DC
Current consumption 33 mA 24 V AC, 22 mA 24 V DC
Inrush current 1 A
Electrical shock protection class Class II
[Ui] Rated Insulation Voltage 50 V
[Uimp] rated impulse withstand voltage 0.5 kV

Environment 9

Pollution degree 2
Ambient Air Temperature for Operation -13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
IP Degree of Protection IP66
Environmental Type ratings UL type 4X/13
Vibration resistance 6 gn +/- 0.5 mm 10…500 Hz)in operation
Shock resistance 30 gn 6 ms) in operation
Standards UL 60947-5-1, IEC 60947-5-1, CSA C22.2 No 60947-5-1
Product Certifications cULus, CCC, RCM, UKCA, CE
Show all 42 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XVB7C9S
Type designation XVB7
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487129615

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin DE
Shipping weight 0.08 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XVB7C9S

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • UL 60947-5-1
  • IEC 60947-5-1
  • CSA C22.2 No 60947-5-1
Quick answers

Questions about the XVB7

Which supply voltage is XVB7 rated for?

The rated operational voltage of XVB7 is 24–DC V DC.

What is the HS code of XVB7 for customs?

The tariff (HS) code on file for XVB7 is 853180.

What is the EAN of XVB7?

The EAN (GTIN) of XVB7 is 3606487129615.

Where does XVB7 ship from, and how fast?

XVB7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
