Part number
XVB7C21M
Model no
XVB7
$160.66 On request Dispatch — · From TürkiyeGet a Quote
Harmony XVB7

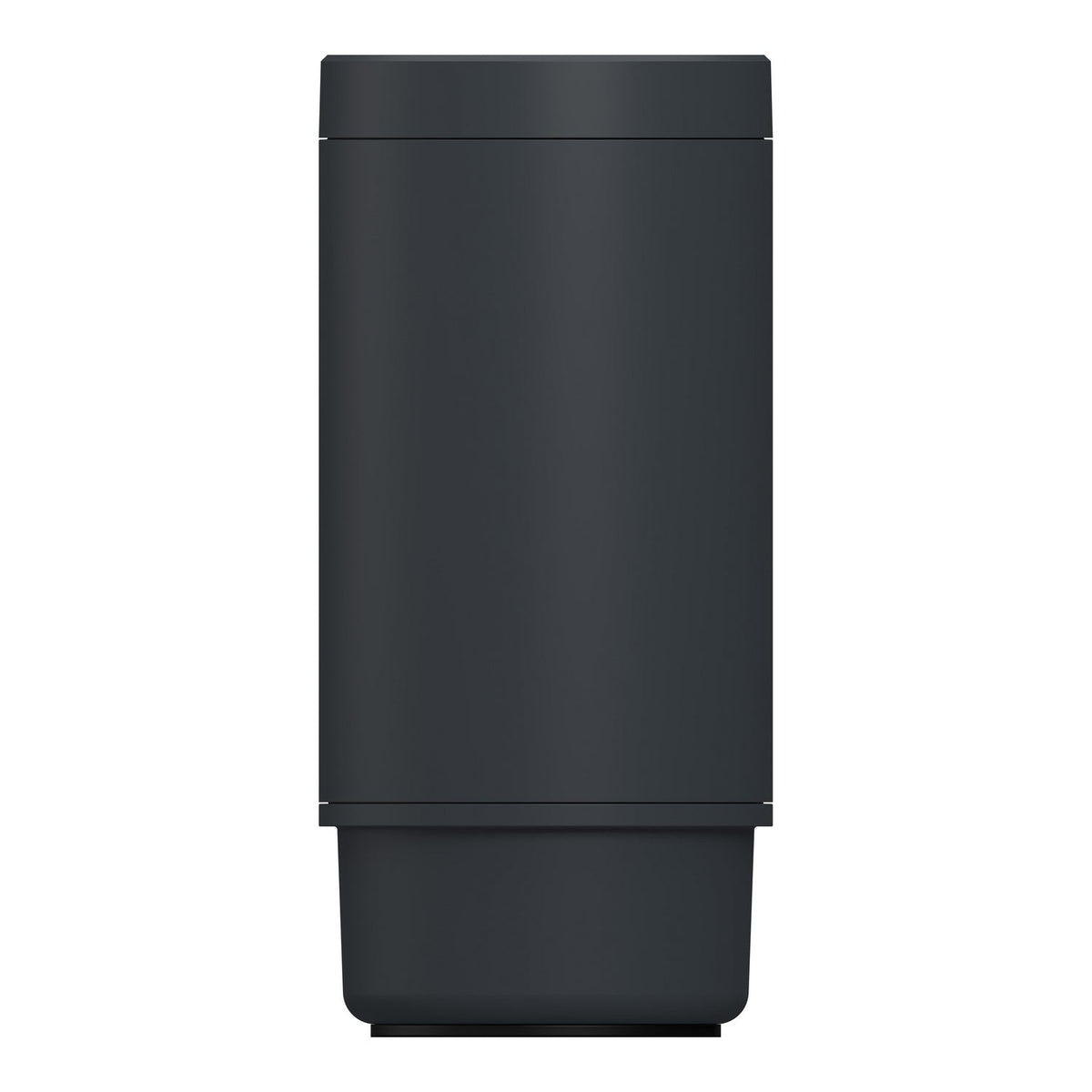

Schneider Electric XVB7C21M Harmony XVB7 Base Module Ø70 mm 100-240 V AC Signal Tower

Schneider Electric XVB7C21M - Harmony XVB7 base module, Ø70 mm, 100-240 V AC, IP66.

Rated operational voltage
100–240 V AC
EAN
3606487129233
Description

About the XVB7

The Schneider Electric XVB7C21M is a base module for the Harmony XVB7 range of Ø 70 mm modular tower lights. It supplies power to up to 4 modules (3 lens + 1 sound or 4 lens) and is powered by 100-240 v ac, connecting via spring clamp terminals (push 'n stay), 5 x 0.34…5 x 1.5 mm² with bottom cable entry. The dark grey polycarbonate base reaches IP66 and weighs 0.28 kg.

Certifications & Standards

  • cULus
  • CCC
  • RCM
  • UKCA
  • CE
  • UL 60947-5-1
  • IEC 60947-5-1
  • CSA C22.2 No 60947-5-1

Selection Notes

XVB7C21M is the ac-connection base in the Harmony XVB7 line, which sets both its wiring method and how many lens or sound modules it can carry (4 modules (3 lens + 1 sound or 4 lens)). Pick it when the panel's existing cabling or fieldbus matches this connection type; the other XVB7 bases differ only in electrical connection and terminal style, not in how the light modules themselves signal. Direct or tube fixing keeps the mounting open for either a flush panel cut-out or a pole-mounted assembly.

Specification

Full specification

45 values · Last verified 30 Oct 2026

Main 13

Range of Product Harmony XVB7
Product or Component Type Base module
Device Composition Base direct/tube & cover
Device short name XVB7
Mounting diameter 2.8 in (70 mm)
Electrical Connection AC
Communication Port Protocol -
Fixing Mode Direct or tube fixing
Mounting position Upright/inverted
Assembly style Up to 4 Modules (3 lens + 1 sound or 4 lens)
Material Polycarbonate
Housing Colour Dark grey
Net Weight 0.617 lb(US) (0.280 kg)

Complementary 9

[Ue] rated operational voltage 100...240 V AC 50/60 Hz, 120 V DC
Rated operational voltage limits 90...264 V AC
Electrical shock protection class Class II
Current consumption 3 mA
Output current 230 mA max
Connections - terminals Spring clamp terminals (push 'n stay), 5 x 0.34...5 x 1.5 mm² with cable end, Spring clamp terminals (push 'n stay), 5 x 0.34...5 x 1.5 mm² without cable end
cable entry Bottom
[Ui] Rated Insulation Voltage 264 V
[Uimp] rated impulse withstand voltage 2.5 kV

Environment 9

Pollution degree 2
Ambient Air Temperature for Operation -13…140 °F (-25…60 °C)
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
IP Degree of Protection IP66
Environmental Type ratings UL type 4X/13
Vibration resistance 6 gn +/- 0.5 mm 10…500 Hz)in operation
Shock resistance 30 gn 6 ms) in operation
Standards UL 60947-5-1, IEC 60947-5-1, CSA C22.2 No 60947-5-1
Product Certifications cULus, CCC, RCM, UKCA, CE
Show all 45 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number XVB7C21M
Type designation XVB7
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487129233

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin DE
Shipping weight 0.28 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for XVB7C21M

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • UL 60947-5-1
  • IEC 60947-5-1
  • CSA C22.2 No 60947-5-1
Quick answers

Questions about the XVB7

Which supply voltage is XVB7 rated for?

The rated operational voltage of XVB7 is 100–240 V AC.

What is the HS code of XVB7 for customs?

The tariff (HS) code on file for XVB7 is 853180.

What is the EAN of XVB7?

The EAN (GTIN) of XVB7 is 3606487129233.

Where does XVB7 ship from, and how fast?

XVB7 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
