- Part number
- METSEPM5760
- Model no
- PM5760
Description
About the PM5760
About the PM5760

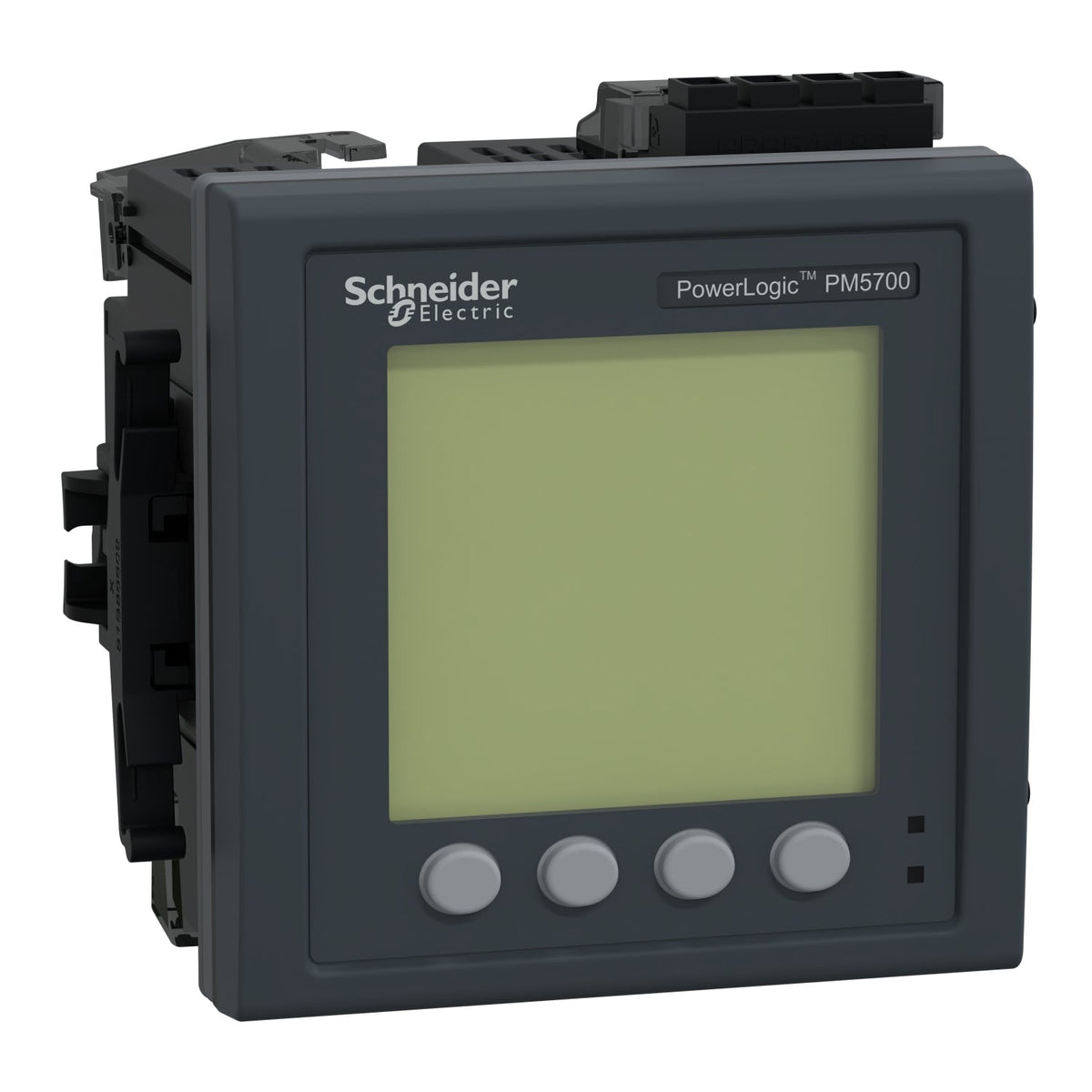

The Schneider Electric METSEPM5760 is a PowerLogic PM5760 flush-mount power meter combining waveform capture with sag/swell detection and residual current monitoring on the PM5560 base platform. It delivers Class 0.2S accuracy to IEC 62053-22 at 128 samples per cycle, measures voltage, current, power, energy and harmonics to the 63rd order, and monitors neutral current directly with calculated ground current.
Certifications & Standards
- CE
- cULus
- EN 50470-1
- EN 50470-3
- IEC 61557-12
- IEC 62053-22
- ANSI C12.20
Selection Notes
The PM5760 is the top of the PM5000 flush-mount line, combining the PM5650's waveform capture and sag/swell detection with the PM5660's residual current monitoring in a single meter. It is the right choice for incoming feeders and critical loads where both power-quality disturbance analysis and ground-fault trending are needed from one device, avoiding a second meter or external relay. Where only one of the two functions is required, the PM5650 or PM5660 covers it at the same base price point.
Specification
Full specification
Main 4
| Range | PowerLogic |
|---|---|
| Product name | PowerLogic PM5000 |
| Product or component type | Power meter |
| Device short name | PM5760 |
Complementary 38
| Power quality analysis | up to the 63rd harmonic, waveform capture, voltage sag and swell detection, residual current monitoring |
|---|---|
| Metering type | Measured neutral current, Calculated ground current, Residual current I0 |
| Device application | Gateway, WAGES metering, Power monitoring, Multi-tariff |
| Type of measurement | Current, Voltage, Frequency, Power factor, Energy, Active and reactive power |
| [Us] rated supply voltage | 100...300 V DC, 90...528 V AC 45...65 Hz |
| Network frequency | 60 Hz, 50 Hz |
| [In] rated current | 1 A, 5 A |
| type of network | 3P + N, 3P, 1P + N |
| Maximum power consumption in VA | 16 VA at 480 V |
| Ride-through time | 35 ms 120 V AC typical, 129 ms 230 V AC typical, 50 ms 125 V DC typical |
| Display type | Monochrome graphic LCD |
| Display resolution | 128 x 128 pixels |
| Sampling rate | 128 samples/cycle |
| Measurement current | 50…10000 mA |
| Analogue input type | Voltage (impedance 5 MOhm), Current (impedance <= 0.3 mOhm) |
| Measurement voltage | 20…400 V AC 45...65 Hz between phase and neutral, 20…828 V AC 45...65 Hz between phases |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 4 digital |
| Measurement accuracy | Apparent power +/- 0.5 %, Frequency +/- 0.05 %, Active energy +/- 0.2 %, Reactive energy +/- 1 %, Active power +/- 0.2 %, Voltage +/- 0.1 %, Power factor +/- 0.005, Current +/- 0.15 %, Reactive power +/- 1 % |
| Accuracy class | Class 0.2S active energy conforming to IEC 62053-22 |
| Number of outputs | 2 digital |
| Information displayed | Tariff (8) |
| Communication port protocol | Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V, JBUS, Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V, Ethernet Modbus TCP/IP daisy chain, BACnet IP, DNP3 over ethernet |
| Communication port support | RS485, ETHERNET |
| Communication gateway | Ethernet/serial |
| Data recording | Event logs, Maintenance logs, Min/max of instantaneous values, Data logs, Alarm logs, Time stamping |
| Memory capacity | 1.1 MB |
| Web services | Alarm notification by e-mail, Web server, Diagnostic via predefined web pages, Real time viewing of data |
| Ethernet service | SNTP client, SNMP-Traps |
| Connections - terminals | Voltage circuit: screw terminal block4, Control circuit: screw terminal block2, Current transformer: screw terminal block6, RS485 link: screw terminal block4, Digital input: screw terminal block8, Digital output: screw terminal block4, Ethernet network: RJ45 connector2 |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Standards | EN 50470-3, IEC 61557-12:2015, IEC 62053-22:2020, IEC 62053-24, IEC 60529, EN 50470-1, UL 61010-1, IEC 62053-23:2020, IEC 62052-11:2020, IEC 62052-31:2015 |
| Product certifications | CE conforming to IEC 61010-1, CULus conforming to UL 61010-1 |
| Width | 96 mm |
| Depth | 72 mm |
| Height | 96 mm |
| Net weight | 450 g |
Environment 7
| Electromagnetic compatibility | Limits for harmonic current emissions class A conforming to IEC 61000-3-2, Conducted RF disturbances level 3 conforming to IEC 61000-4-6, Magnetic field at power frequency level 4 conforming to IEC 61000-4-8, Conducted and radiated emissions class B conforming to EN 55022, Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3, Electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, Surge immunity test level 4 conforming to IEC 61000-4-5, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
|---|---|
| IP degree of protection | IP54 display: conforming to IEC 60529, IP30 rear: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C non-condensing |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 3000 m |
Show all 73 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | METSEPM5760 |
|---|---|
| Type designation | PM5760 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.100 cm |
| Package 1 Width | 9.600 cm |
| Package 1 Length | 9.600 cm |
| Package 1 Weight | 550.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.313 kg |
| Shipping weight | 0.45 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
