- Part number
- METSEPM5320R
- Model no
- PM5320R
Description
About the PM5320R
About the PM5320R

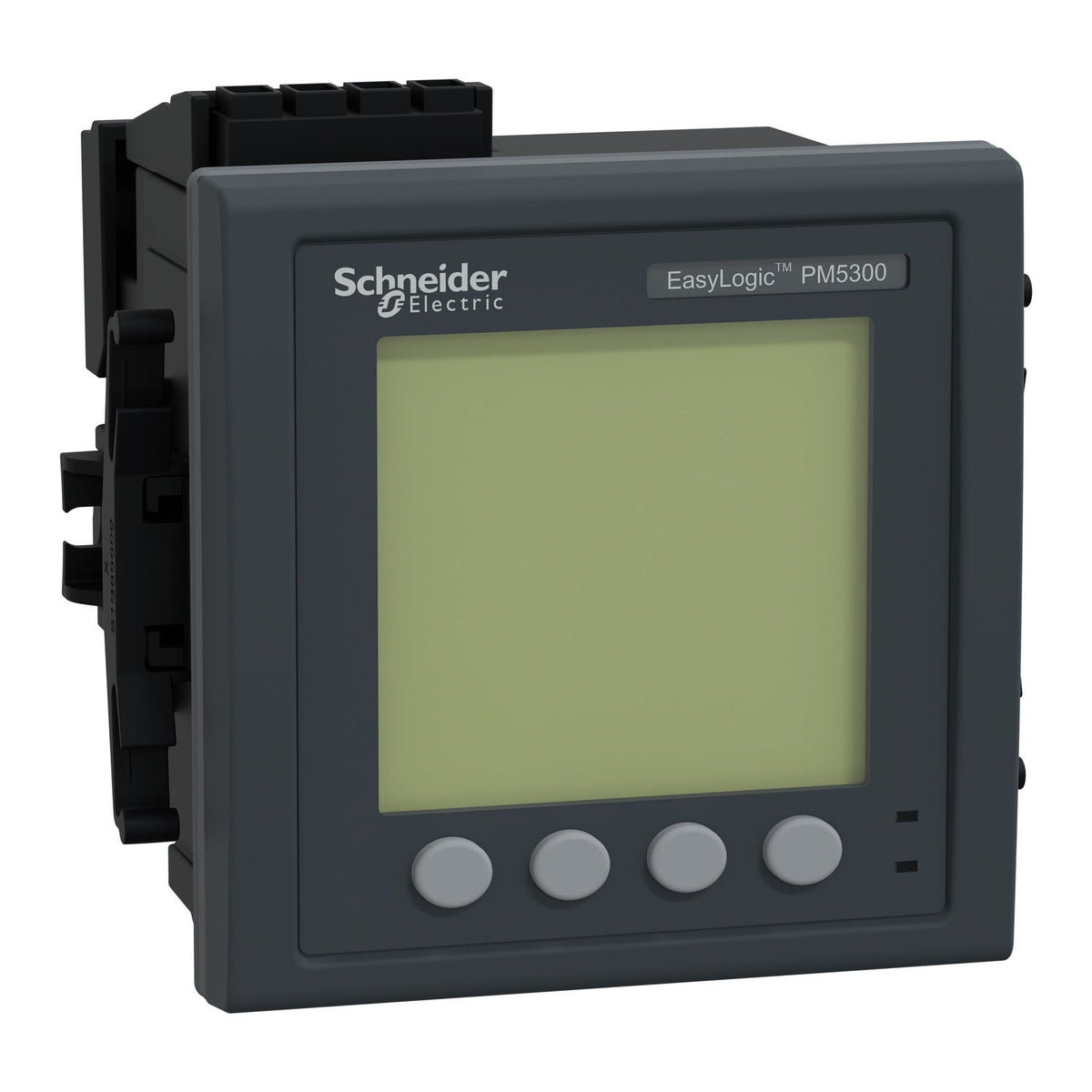

The Schneider Electric METSEPM5320R is a PowerLogic PM5320R flush-mount power meter built for 3-in-1 current transducer (LVCT) input over RJ45, measuring energy, active and reactive power, voltage, current, frequency, power factor, and harmonics up to the 31st order with Class 0.5S accuracy to IEC 62053-22. It communicates over 10/100 Mbit/s Ethernet using Modbus TCP/IP and BACnet/IP, suited to three-phase busbar monitoring.
Certifications & Standards
- CE
- cULus
- IEC 61010-1
- EN 50470-1
- IEC 62053-22
Selection Notes
The METSEPM5320R pairs the PM5320's Ethernet and BACnet/IP connectivity with an RJ45 LVCT current input, so it is the choice when a busbar metering point needs both IP-network reporting and the simplified LVCT wiring. Against the PM5310R, it trades RS485 for Ethernet; against the standard PM5320, it trades conventional CT terminals for the RJ45 transducer input.
Specification
Full specification
Main 4
| Range | PowerLogic |
|---|---|
| Product name | PowerLogic PM5000 |
| Product or component type | Power meter |
| Device short name | PM5320R |
Complementary 34
| Power quality analysis | up to the 31st harmonic |
|---|---|
| Device application | Multi-tariff, Power monitoring |
| Type of measurement | Current, Voltage, Frequency, Power factor, Energy, Active and reactive power |
| [Us] rated supply voltage | 90...450 V AC 45...65 Hz, 100...300 V DC |
| Network frequency | 60 Hz, 50 Hz |
| [In] rated current | 1 A, 5 A |
| type of network | 1P + N, 3P, 3P + N |
| Maximum power consumption in VA | 11 VA at 415 V |
| Ride-through time | 80 ms 120 V AC typical, 100 ms 230 V AC typical, 100 ms 415 V AC typical, 50 ms 125 V DC typical |
| Display type | Monochrome graphic LCD |
| Display resolution | 128 x 128 pixels |
| Sampling rate | 64 samples/cycle |
| Measurement current | 10…9000 mA |
| Analogue input type | Voltage (impedance 5 MOhm), Current 0.333 V (impedance 0.3 mOhm) |
| Measurement voltage | 35…760 V AC 45...65 Hz between phases, 20…440 V AC 45...65 Hz between phase and neutral |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 2 digital |
| Measurement accuracy | Active energy +/- 0.5 %, Reactive energy +/- 2 %, Active power +/- 0.5 %, Apparent power +/- 0.5 %, Frequency +/- 0.05 %, Power factor +/- 0.5, Current +/- 0.5 %, Voltage +/- 0.5 %, Apparent energy +/- 0.5 %, Reactive power +/- 2 % |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 |
| Number of outputs | 2 digital |
| Information displayed | Tariff (4) |
| Communication port protocol | Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V, BACnet IP |
| Communication port support | ETHERNET |
| Data recording | Data logs, Time stamping, Alarm logs, Min/max of instantaneous values, Maintenance logs, Event logs |
| Memory capacity | 256 kB |
| Connections - terminals | Voltage circuit: screw terminal block4, Control circuit: screw terminal block2, Input/output circuit: screw terminal block6, Relay output: screw terminal block4, Ethernet network: RJ45 connector, Current transformer: RJ45 connector1 |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Standards | IEC 62053-22:2020, IEC 61557-12:2015, EN 50470-3, IEC 60529, EN 50470-1, UL 61010-1, IEC 62053-24, IEC 62053-23:2020, IEC 62052-11:2020, IEC 62052-31:2015 |
| Product certifications | CE conforming to IEC 61010-1, CULus conforming to UL 61010-1 |
| Width | 96 mm |
| Depth | 72 mm |
| Height | 96 mm |
| Net weight | 430 g |
Environment 7
| Electromagnetic compatibility | Conducted and radiated emissions class B conforming to EN 55022, Limitation of voltage changes, voltage fluctuations and flicker in low-voltage level 4 conforming to IEC 61000-3-3, Electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 4 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, Surge immunity test level 4 conforming to IEC 61000-4-5, Voltage dips and interruptions immunity test level 3 conforming to IEC 61000-4-11, Limits for harmonic current emissions class A conforming to IEC 61000-3-2, Conducted RF disturbances level 3 conforming to IEC 61000-4-6, Magnetic field at power frequency level 4 conforming to IEC 61000-4-8, Radiated radio-frequency electromagnetic field immunity test - test level: 150 kHz...80 MHz conforming to IEC 61000-4-3, Electrostatic discharge level 4 conforming to IEC 61000-4-2, Immunity to conducted disturbances - test level: 150 kHz...80 MHz level 4 conforming to IEC 61000-4-6, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 |
|---|---|
| IP degree of protection | IP54 display: conforming to IEC 60529, IP30 rear: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C non-condensing |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 2000 m |
Show all 69 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | METSEPM5320R |
|---|---|
| Type designation | PM5320R |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.100 cm |
| Package 1 Width | 9.600 cm |
| Package 1 Length | 9.600 cm |
| Package 1 Weight | 422.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.629 kg |
| Shipping weight | 0.43 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
