Part number
METSEPM5320
Model no
PM5320
$341.55 On request Dispatch — · From TürkiyeGet a Quote

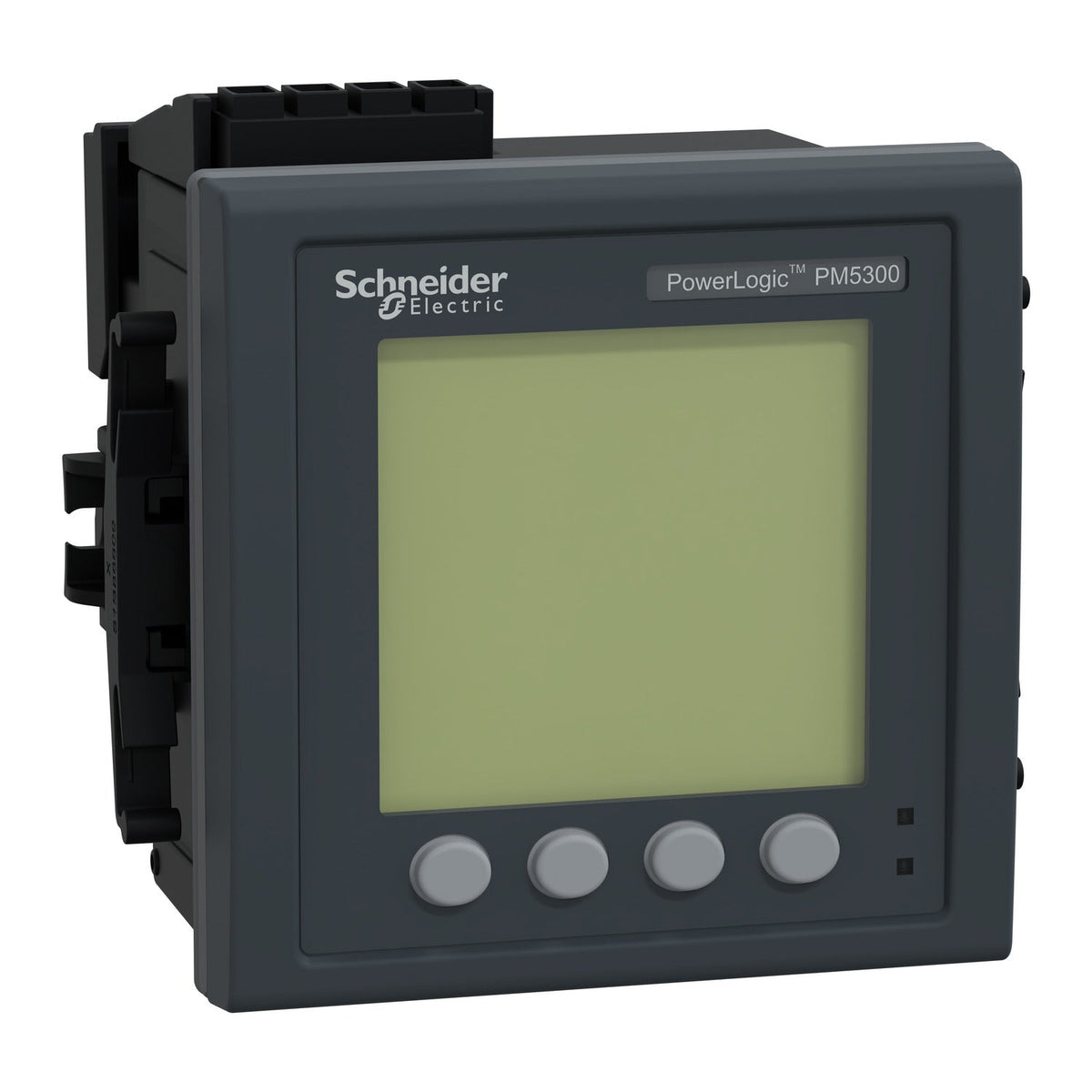

Schneider Electric METSEPM5320 PowerLogic PM5320 Power Meter 31st Harmonic Ethernet BACnet Power Meter

PowerLogic PM5320 flush-mount power meter, Class 0.5S IEC 62053-22, 31st harmonic, Ethernet BACnet/Modbus TCP.

Rated current
5 A
Rated operational voltage
760 V AC
Communication
Modbus TCP/IP + BACnet/IP Ethernet
Display
Monochrome graphic LCD, 128 x 128 pixels
Description

About the PM5320

The Schneider Electric METSEPM5320 is a PowerLogic PM5320 flush-mount power meter, measuring energy, active and reactive power, voltage, current, frequency, power factor, and harmonics up to the 31st order with Class 0.5S accuracy to IEC 62053-22. It reads out on a 96 x 96 mm monochrome graphic LCD and communicates over 10/100 Mbit/s Ethernet using Modbus TCP/IP and BACnet/IP, with 2 configurable digital I/O and 256 kB of logging.

Certifications & Standards

  • CE
  • cULus
  • IEC 61010-1
  • EN 50470-1
  • IEC 62053-22

Selection Notes

The METSEPM5320 replaces the PM5310's RS485 port with Ethernet and BACnet/IP alongside Modbus TCP, which is the deciding factor whenever the building management system is already running on an Ethernet backbone. Measurement accuracy, I/O count, and memory match the PM5310; where an RJ45 LVCT is needed for busbar current input instead of conventional CTs, the PM5320R is the matching variant.

Specification

Full specification

75 values · Last verified 30 Oct 2026

Main 4

Range PowerLogic
Product name PowerLogic PM5000
Product or component type Power meter
Device short name PM5320

Complementary 34

Power quality analysis up to the 31st harmonic
Device application Multi-tariff, Power monitoring
Type of measurement Current, Voltage, Frequency, Power factor, Energy, Active and reactive power
[Us] rated supply voltage 90...450 V AC 45...65 Hz, 100...300 V DC
Network frequency 50 Hz, 60 Hz
[In] rated current 1 A, 5 A
type of network 1P + N, 3P + N, 3P
Maximum power consumption in VA 11 VA at 415 V
Ride-through time 80 ms 120 V AC typical, 100 ms 230 V AC typical, 100 ms 415 V AC typical, 50 ms 125 V DC typical
Display type Monochrome graphic LCD
Display resolution 128 x 128 pixels
Sampling rate 64 samples/cycle
Measurement current 5…8500 mA
Analogue input type Voltage (impedance 5 MOhm), Current (impedance <= 0.3 mOhm)
Measurement voltage 35…760 V AC 45...65 Hz between phases, 20…440 V AC 45...65 Hz between phase and neutral
Frequency measurement range 45…65 Hz
Number of inputs 2 digital
Measurement accuracy Active energy +/- 0.5 %, Reactive energy +/- 2 %, Active power +/- 0.5 %, Apparent power +/- 0.5 %, Frequency +/- 0.05 %, Power factor +/- 0.5, Current +/- 0.5 %, Voltage +/- 0.5 %, Apparent energy +/- 0.5 %, Reactive power +/- 2 %
Accuracy class Class 0.5S active energy conforming to IEC 62053-22
Number of outputs 2 digital
Information displayed Tariff (4)
Communication port protocol Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V, BACnet IP
Communication port support ETHERNET
Data recording Maintenance logs, Alarm logs, Min/max of instantaneous values, Event logs, Time stamping, Data logs
Memory capacity 256 kB
Connections - terminals Voltage circuit: screw terminal block4, Control circuit: screw terminal block2, Current transformer: screw terminal block6, Input/output circuit: screw terminal block6, Relay output: screw terminal block4, Ethernet network: RJ45 connector
Mounting mode Flush-mounted
Mounting support Framework
Standards IEC 62053-22:2020, EN 50470-1, IEC 60529, IEC 61557-12:2015, UL 61010-1, EN 50470-3, IEC 62053-24, IEC 62053-23:2020, IEC 62052-11:2020, IEC 62052-31:2015
Product certifications CE conforming to IEC 61010-1, CULus conforming to UL 61010-1
Width 96 mm
Depth 72 mm
Height 96 mm
Net weight 430 g

Environment 7

Electromagnetic compatibility Limitation of voltage changes, voltage fluctuations and flicker in low-voltage class A conforming to IEC 61000-3-3, Electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, Surge immunity test level 4 conforming to IEC 61000-4-5, Voltage dips and interruptions immunity test class A conforming to IEC 61000-4-11, Limits for harmonic current emissions class A conforming to IEC 61000-3-2, Conducted RF disturbances level 3 conforming to IEC 61000-4-6, Magnetic field at power frequency level 4 conforming to IEC 61000-4-8, Conducted and radiated emissions class B conforming to EN 55022, Limitation of voltage changes, voltage fluctuations and flicker in low-voltage level 4 conforming to IEC 61000-3-3, Radiated radio-frequency electromagnetic field immunity test class B conforming to IEC 61000-4-3
IP degree of protection IP54 display: conforming to IEC 60529, IP30 rear: conforming to IEC 60529
Relative humidity 5…95 % at 50 °C non-condensing
Pollution degree 2
Ambient air temperature for operation -25…70 °C meter, -20…70 °C display, -25…-20 °C (with reduced performance) display
Ambient air temperature for storage -40…85 °C
Operating altitude 2000 m CAT III, 3000 m CAT II
Show all 75 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number METSEPM5320
Type designation PM5320
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.500 cm
Package 1 Width 12.600 cm
Package 1 Length 12.600 cm
Package 1 Weight 472.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.306 kg
Unit Type of Package 3 P06
Number of Units in Package 3 96
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 61.340 kg
Shipping weight 0.43 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSEPM5320

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CE
  • IEC 62053-22:2020
  • EN 50470-1
  • IEC 60529
  • IEC 61557-12:2015
  • UL 61010-1
  • EN 50470-3
  • IEC 62053-24
  • IEC 62053-23:2020
  • IEC 62052-11:2020
  • IEC 62052-31:2015
Quick answers

Questions about the PM5320

What is the rated current of PM5320?

The rated current of PM5320 is 5 A.

Which supply voltage is PM5320 rated for?

The rated operational voltage of PM5320 is 760 V AC.

What is the HS code of PM5320 for customs?

The tariff (HS) code on file for PM5320 is 902830.

Where does PM5320 ship from, and how fast?

PM5320 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
