- Part number
- METSEDM6000HCL10NC
- Model no
- DM6000H
Description
About the DM6000H
About the DM6000H

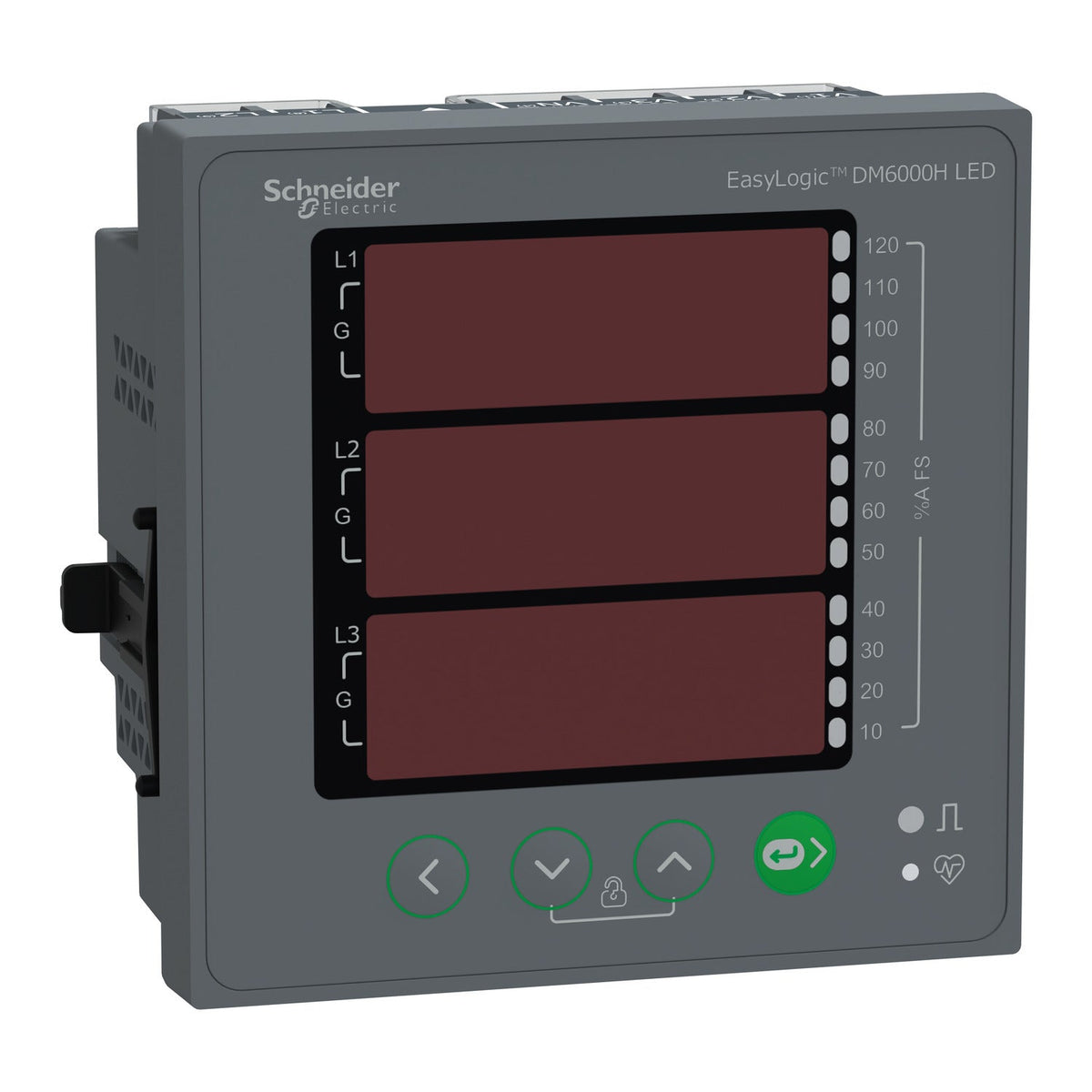

The Schneider Electric METSEDM6000HCL10NC is an EasyLogic DM6000H digital panel meter that measures voltage, current, frequency, and power factor with Class 1 active energy accuracy to IEC 62053-21. It has no communication port, reading out locally on a 96 x 96 mm bezel with a tricolour load-burden bar and an 8-segment red LED display.
Certifications & Standards
- CE
- cULus
- IEC 61010-1
- UL 61010-1
Selection Notes
The METSEDM6000HCL10NC is the no-communication variant of the DM6X00H panel meter, so it suits a local read-out point where no SCADA or BMS link is planned. If a remote monitoring link is added later, the METSEDM6200HCL10RS carries the identical measurement set and Class 1 accuracy with an RS485 Modbus port in the same 96 x 96 mm body.
Specification
Full specification
Main 4
| Range | EasyLogic |
|---|---|
| Product name | EasyLogic DM6X00H NC |
| Device short name | DM6000H |
| Product or component type | VAF PF meter |
Complementary 43
| Device application | Remote monitoring |
|---|---|
| Type of measurement | Current, Voltage, Frequency, RPM |
| Metering type | Unbalance current, Calculated neutral current, Unbalance voltage, Rotation speed, Phase currents, Voltage U21, U32, U13, V1, V2, V3, Frequency, Average voltage Vavg, Average current Iavg |
| Counter functions | Power interruption, ON hour counting |
| [Us] rated supply voltage | 48...277 V AC 45...65 Hz, 48...277 V DC |
| Network frequency | 50 Hz, 60 Hz |
| [In] rated current | 1 A, 5 A |
| type of network | 2P + N, 2P, 3P + N, 3P, 1P + N |
| Maximum power consumption in VA | 4 VA at 240 V between phase and neutral |
| Maximum power consumption in W | 2 W at 240 V |
| Display type | 8 segments LED |
| Display colour | Red |
| Messages display capacity | 3 fields of 4 characters |
| Display digits | 12 digit(s) - 14.2 mm in height |
| Communication of data | Reading of measurements, Instantaneous and demand values, Revolution speed, All counters |
| Tamperproof of settings | Protected by access code |
| Sampling rate | 32 samples/cycle |
| Measurement current | 5…6000 mA |
| Signal | Current 0.005...10 A (impedance 0.3 MOhm)6 x |
| Measurement voltage | 35…480 V AC 50...60 Hz between phases, 46…277 V AC 50...60 Hz between phase and neutral, 277…999000 V AC 50...60 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| Measurement accuracy | Frequency +/- 0.05 %, Power factor +/- 0.01, Current +/- 1 %, Voltage +/- 1 % |
| Accuracy class | Class 1 |
| Demand intervals | 1 s |
| Local signalling | Green LED: activity, Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) |
| Communication port protocol | - |
| Material | Polycarbonate |
| Flame retardance | V-0 conforming to UL 94 |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Installation category | III |
| Type of installation | Indoor installation |
| Measurement category | Category III 480 V |
| Electrical insulation class | Class II |
| Connections - terminals | Current circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s), Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s), Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) |
| Tightening torque | Current circuit: 0.9…1 N.m Philips No 2 screwdriver, Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver, Control circuit: 0.9…1 N.m Philips No 2 screwdriver |
| Wire stripping length | Current circuit: 3.68 mm, Voltage circuit: 7 mm, Control circuit: 7 mm |
| Standards | IEC 61010-1:ed. 3, UL 61010-1:ed. 3 |
| Product certifications | CE conforming to IEC 61010-1, CULus conforming to UL 61010-1, CULus conforming to CSA C22.2 No 61010-1, C-Tick |
| Width | 96 mm |
| Depth | Outside : 13 mm, Panel : 49 mm |
| Height | 96 mm |
| Net weight | 300 g |
Environment 9
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4, Surge immunity test conforming to IEC 61000-4-5, Conducted RF disturbances conforming to IEC 61000-4-6, Magnetic field at power frequency conforming to IEC 61000-4-8, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11, Emission tests conforming to FCC part 15 class A, Emission tests conforming to FCC part 15 Subpart C, Emission tests conforming to FCC part 15 Subpart E |
|---|---|
| Overvoltage category | III |
| IP degree of protection | IP51 front: conforming to IEC 60529, IP30 body: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C |
| Pollution degree | 2 |
| Ambient air temperature for operation | -10…60 °C |
| Ambient air temperature for storage | -20…70 °C |
| Operating altitude | <= 2000 m |
| service life | 7 year(s) |
Show all 86 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | METSEDM6000HCL10NC |
|---|---|
| Type designation | DM6000H |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.700 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 340.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.739 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 144 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 60.960 kg |
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for METSEDM6000HCL10NC
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
- IEC 61010-1:ed. 3
- UL 61010-1:ed. 3
Quick answers
Questions about the DM6000H
What is the rated current of DM6000H?
The rated current of DM6000H is 5 A.
Which supply voltage is DM6000H rated for?
The rated operational voltage of DM6000H is 480 V AC.
What is the HS code of DM6000H for customs?
The tariff (HS) code on file for DM6000H is 902830.
Where does DM6000H ship from, and how fast?
DM6000H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
