- Part number
- METSEPM5580
- Model no
- PM5580
Description
About the PM5580
About the PM5580

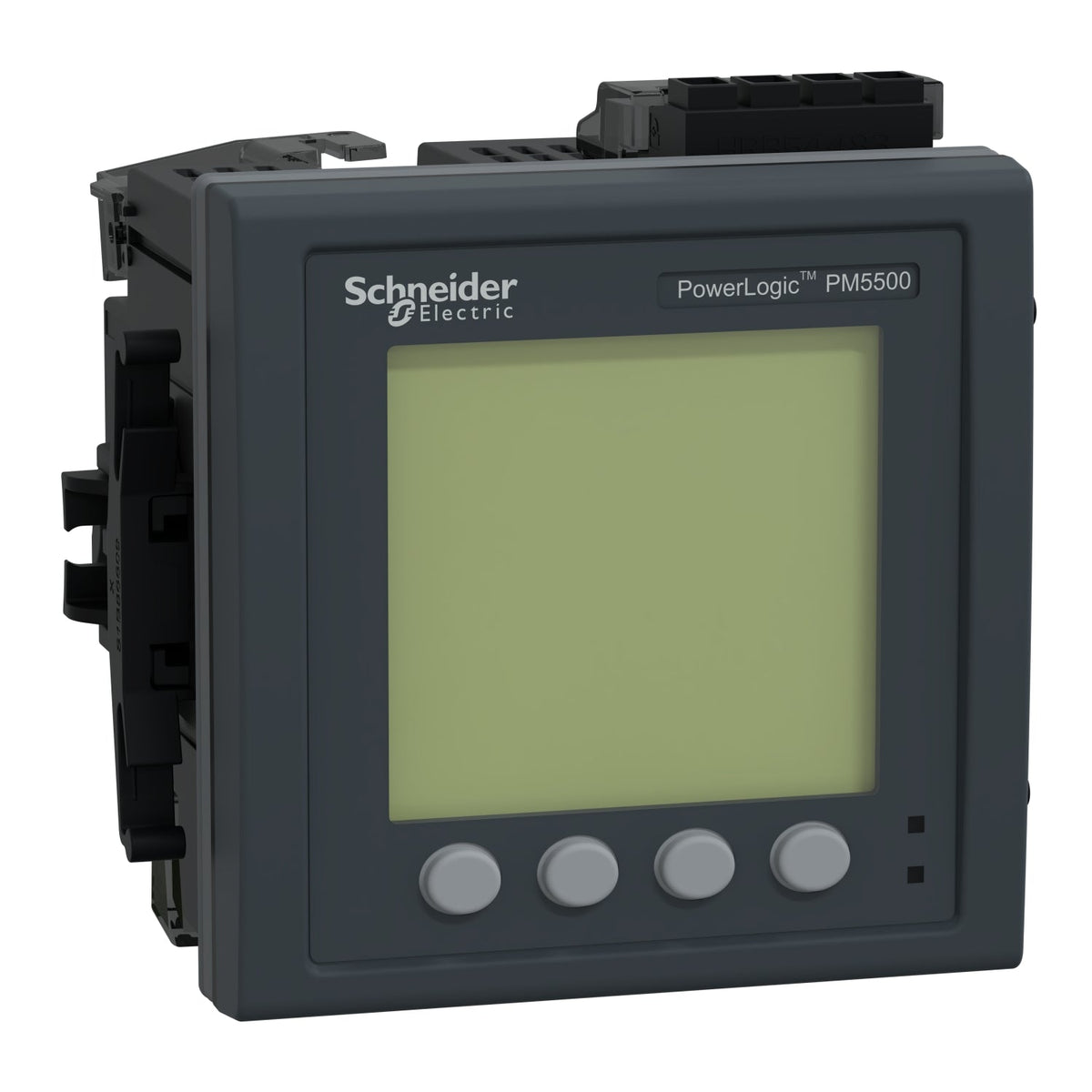

The Schneider Electric METSEPM5580 is a PowerLogic PM5580 flush-mount power meter built for a 24 V DC supply instead of the standard universal AC/DC input. It delivers Class 0.2S accuracy to IEC 62053-22 at 128 samples per cycle, measures voltage, current, power, energy and harmonics to the 63rd order, and monitors neutral current directly with calculated ground current over dual Ethernet and RS485 Modbus.
Certifications & Standards
- CE
- cULus
- EN 50470-1
- EN 50470-3
- IEC 61557-12
- IEC 62053-22
- ANSI C12.20
Selection Notes
The PM5580 is a 24 V DC-powered version of the PM5560 platform, built for switchboards and control cabinets that already run a 24 V DC control bus and would otherwise need a separate AC/DC converter to feed a meter. Measurement performance - Class 0.2S accuracy, 63rd-harmonic analysis, dual Ethernet - is unchanged from the AC-fed siblings. Choose the PM5580 specifically when the panel's available auxiliary supply is 24 V DC rather than 90-528 V AC/100-300 V DC.
Specification
Full specification
Main 4
| Range | PowerLogic |
|---|---|
| Product name | PowerLogic PM5000 |
| Product or Component Type | Power meter |
| Device short name | PM5580 |
Complementary 38
| Power quality analysis | up to the 63rd harmonic |
|---|---|
| Metering type | Measured neutral current, Calculated ground current |
| Device Application | Gateway, WAGES metering, Power monitoring, Multi-tariff |
| Type of measurement | Current, Voltage, Frequency, Power factor, Energy, Active and reactive power |
| [Us] rated supply voltage | 24 V DC |
| Network Frequency | 60 Hz, 50 Hz |
| Line Rated Current | 1 A, 5 A |
| type of network | 3P + N, 3P, 1P + N |
| Maximum power consumption in VA | 16 VA 480 V |
| Ride-through time | 35 ms 120 V AC typical, 129 ms 230 V AC typical, 50 ms 125 V DC typical |
| Display Type | Monochrome graphic LCD |
| Display Resolution | 128 x 128 pixels |
| Sampling rate | 128 samples/cycle |
| Measurement current | 50…10000 mA |
| Analogue input type | Voltage (impedance 5 MOhm), Current (impedance <= 0.3 mOhm) |
| Measurement voltage | 20…400 V AC 45...65 Hz between phase and neutral, 20…828 V AC 45...65 Hz between phases |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 4 digital |
| Measurement accuracy | Apparent power +/- 0.5 %, Frequency +/- 0.05 %, Active energy +/- 0.2 %, Reactive energy +/- 1 %, Active power +/- 0.2 %, Voltage +/- 0.1 %, Power factor +/- 0.005, Current +/- 0.15 %, Reactive power +/- 1 % |
| Accuracy class | Class 0.2S active energy IEC 62053-22 |
| Number of Outputs | 2 digital |
| Information displayed | Tariff 8) |
| Communication port protocol | Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V, JBUS, Modbus TCP/IP 10/100 Mbit/s 2500 V, Ethernet Modbus TCP/IP daisy chain, BACnet IP, DNP3 over ethernet |
| Communication port support | RS485, ETHERNET |
| Communication gateway | Ethernet/serial |
| Data recording | Event logs, Maintenance logs, Min/max of instantaneous values, Data logs, Alarm logs, Time stamping |
| Memory capacity | 1.1 MB |
| Web services | Alarm notification by e-mail, Web server, Diagnostic via predefined web pages, Real time viewing of data |
| Ethernet service | SNTP client, SNMP-Traps |
| Connections - terminals | Voltage circuit screw terminal block4, Control circuit screw terminal block2, Current transformer screw terminal block6, RS485 link screw terminal block4, Digital input screw terminal block8, Digital output screw terminal block4, Ethernet network RJ45 connector2 |
| Mounting Mode | Flush-mounted |
| Mounting support | Framework |
| Standards | EN 50470-3, IEC 61557-12:2015, IEC 62053-22:2020, IEC 62053-24, IEC 60529, EN 50470-1, UL 61010-1, IEC 62053-23:2020, IEC 62052-11:2020, IEC 62052-31:2015 |
| Product certifications | CE conforming to IEC 61010-1, CULus conforming to UL 61010-1 |
| Width | 3.8 in (96 mm) |
| Depth | 2.8 in (72 mm) |
| Height | 3.8 in (96 mm) |
| Net Weight | 15.9 oz (450 g) |
Environment 7
| Electromagnetic compatibility | Limits for harmonic current emissions class A conforming to IEC 61000-3-2, Conducted RF disturbances level 3 conforming to IEC 61000-4-6, Magnetic field at power frequency level 4 conforming to IEC 61000-4-8, Conducted and radiated emissions class B conforming to EN 55022, Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3, Electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, Surge immunity test level 4 conforming to IEC 61000-4-5, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
|---|---|
| IP degree of protection | IP54 display: conforming to IEC 60529, IP30 rear: conforming to IEC 60529 |
| Relative humidity | 5…95 % 122 °F (50 °C) non-condensing |
| Pollution degree | 2 |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | <= 9842.52 ft (3000 m) |
Show all 63 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | METSEPM5580 |
|---|---|
| Type designation | PM5580 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489869700 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | IN |
|---|---|
| Shipping weight | 0.45 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
