Part number
METSEPM5310
Model no
PM5310
$311.19 On request Dispatch — · From TürkiyeGet a Quote

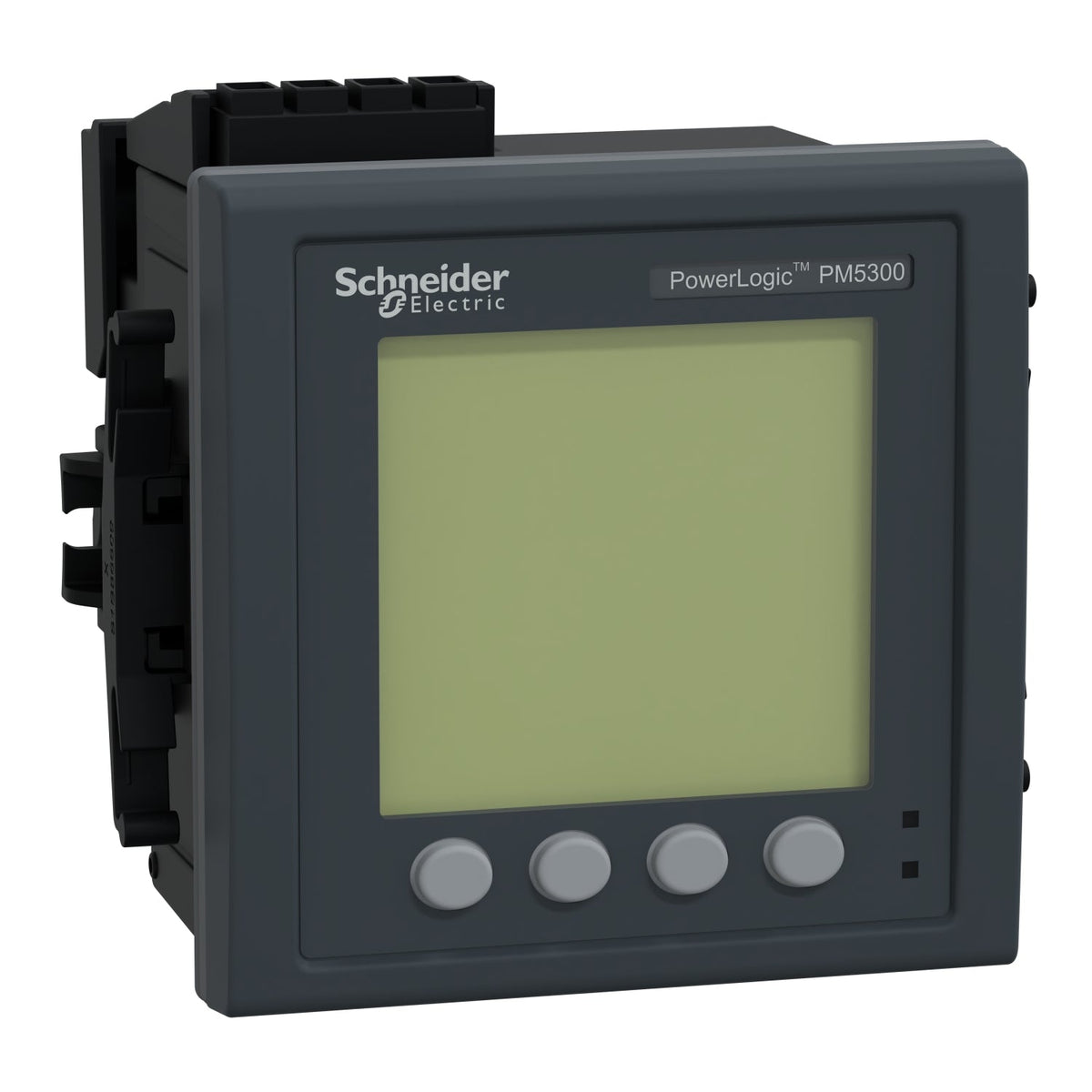

Schneider Electric METSEPM5310 PowerLogic PM5310 Class 0.5S 31st Harmonic 2DI 2DO RS485 Power Meter

PowerLogic PM5310 flush-mount power meter, Class 0.5S IEC 62053-22, 31st harmonic, RS485 Modbus, 2DI/2DO.

Rated current
5 A
Rated operational voltage
760 V AC
Communication
Modbus RTU/ASCII RS485
Display
Monochrome graphic LCD, 128 x 128 pixels
Description

About the PM5310

The Schneider Electric METSEPM5310 is a PowerLogic PM5310 flush-mount power meter, measuring energy, active and reactive power, voltage, current, frequency, power factor, and harmonics up to the 31st order with Class 0.5S accuracy to IEC 62053-22. It reads out on a 96 x 96 mm monochrome graphic LCD, communicates over RS485 using Modbus RTU and ASCII, and provides 2 configurable digital inputs/outputs, 256 kB of logging, and 4 tariff schedules.

Certifications & Standards

  • CE
  • cULus
  • IEC 61010-1
  • EN 50470-1
  • IEC 62053-22

Selection Notes

The METSEPM5310 steps up from the PM5110 with 31st-harmonic analysis, two-way digital I/O instead of one output, and 256 kB of on-meter data logging for active and reactive energy, so it fits sub-billing applications with multiple tariff schedules. It still takes conventional CT inputs; where a 3-in-1 RJ45 current transducer is preferred for busbar monitoring, the METSEPM5310R is the matching variant.

Specification

Full specification

75 values · Last verified 30 Oct 2026

Main 4

Range PowerLogic
Product name PowerLogic PM5000
Product or component type Power meter
Device short name PM5310

Complementary 34

Power quality analysis up to the 31st harmonic
Device application Multi-tariff, Power monitoring
Type of measurement Current, Voltage, Frequency, Power factor, Energy, Active and reactive power
[Us] rated supply voltage 90...450 V AC 45...65 Hz, 100...300 V DC
Network frequency 50 Hz, 60 Hz
[In] rated current 1 A, 5 A
type of network 1P + N, 3P, 3P + N
Maximum power consumption in VA 11 VA at 415 V
Ride-through time 80 ms 120 V AC typical, 100 ms 230 V AC typical, 100 ms 415 V AC typical, 50 ms 125 V DC typical
Display type Monochrome graphic LCD
Display resolution 128 x 128 pixels
Sampling rate 64 samples/cycle
Measurement current 5…8500 mA
Analogue input type Voltage (impedance 5 MOhm), Current (impedance <= 0.3 mOhm)
Measurement voltage 35…760 V AC 45...65 Hz between phases, 20…440 V AC 45...65 Hz between phase and neutral
Frequency measurement range 45…65 Hz
Number of inputs 2 digital
Measurement accuracy Active energy +/- 0.5 %, Reactive energy +/- 2 %, Active power +/- 0.5 %, Apparent power +/- 0.5 %, Frequency +/- 0.05 %, Power factor +/- 0.5, Current +/- 0.5 %, Voltage +/- 0.5 %, Apparent energy +/- 0.5 %, Reactive power +/- 2 %
Accuracy class Class 0.5S active energy conforming to IEC 62053-22
Number of outputs 2 digital
Information displayed Tariff (4)
Communication port protocol Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V, JBUS
Communication port support RS485
Data recording Event logs, Min/max of instantaneous values, Alarm logs, Data logs, Time stamping, Maintenance logs
Memory capacity 256 kB
Connections - terminals Voltage circuit: screw terminal block4, Control circuit: screw terminal block2, Current transformer: screw terminal block6, Input/output circuit: screw terminal block6, Relay output: screw terminal block4, Ethernet network: RJ45 connector
Mounting mode Flush-mounted
Mounting support Framework
Standards EN 50470-3, IEC 62053-24, IEC 60529, EN 50470-1, UL 61010-1, IEC 62053-22:2020, IEC 61557-12:2015, IEC 62053-23:2020, IEC 62052-11:2020, IEC 62052-31:2015
Product certifications CE conforming to IEC 61010-1, CULus conforming to UL 61010-1
Width 96 mm
Depth 72 mm
Height 96 mm
Net weight 430 g

Environment 7

Electromagnetic compatibility Conducted and radiated emissions class A conforming to EN 55011, Limits for harmonic current emissions class A conforming to IEC 61000-3-2, Immunity to conducted disturbances - test level: 150 kHz...80 MHz level 3 conforming to IEC 61000-4-6, Voltage dips and interruptions immunity test level 4 conforming to IEC 61000-4-11, Conducted RF disturbances level 3 conforming to IEC 61000-4-6, Magnetic field at power frequency level 4 conforming to IEC 61000-4-8, Conducted and radiated emissions class B conforming to EN 55022, Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3, Electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, Surge immunity test level 4 conforming to IEC 61000-4-5, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
IP degree of protection IP54 display: conforming to IEC 60529, IP30 rear: conforming to IEC 60529
Relative humidity 5…95 % at 50 °C non-condensing
Pollution degree 2
Ambient air temperature for operation -25…70 °C meter, -20…70 °C display, -25…-20 °C (with reduced performance) display
Ambient air temperature for storage -40…85 °C
Operating altitude 2000 m CAT III, 3000 m CAT II
Show all 75 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number METSEPM5310
Type designation PM5310
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.000 cm
Package 1 Width 12.600 cm
Package 1 Length 12.600 cm
Package 1 Weight 473.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 12
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.333 kg
Unit Type of Package 3 P06
Number of Units in Package 3 96
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 62.012 kg
Shipping weight 0.43 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSEPM5310

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CE
  • EN 50470-3
  • IEC 62053-24
  • IEC 60529
  • EN 50470-1
  • UL 61010-1
  • IEC 62053-22:2020
  • IEC 61557-12:2015
  • IEC 62053-23:2020
  • IEC 62052-11:2020
  • IEC 62052-31:2015
Quick answers

Questions about the PM5310

What is the rated current of PM5310?

The rated current of PM5310 is 5 A.

Which supply voltage is PM5310 rated for?

The rated operational voltage of PM5310 is 760 V AC.

What is the HS code of PM5310 for customs?

The tariff (HS) code on file for PM5310 is 902830.

Where does PM5310 ship from, and how fast?

PM5310 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
