- Part number
- METSEPM5110
- Model no
- PM5110
Description
About the PM5110
About the PM5110

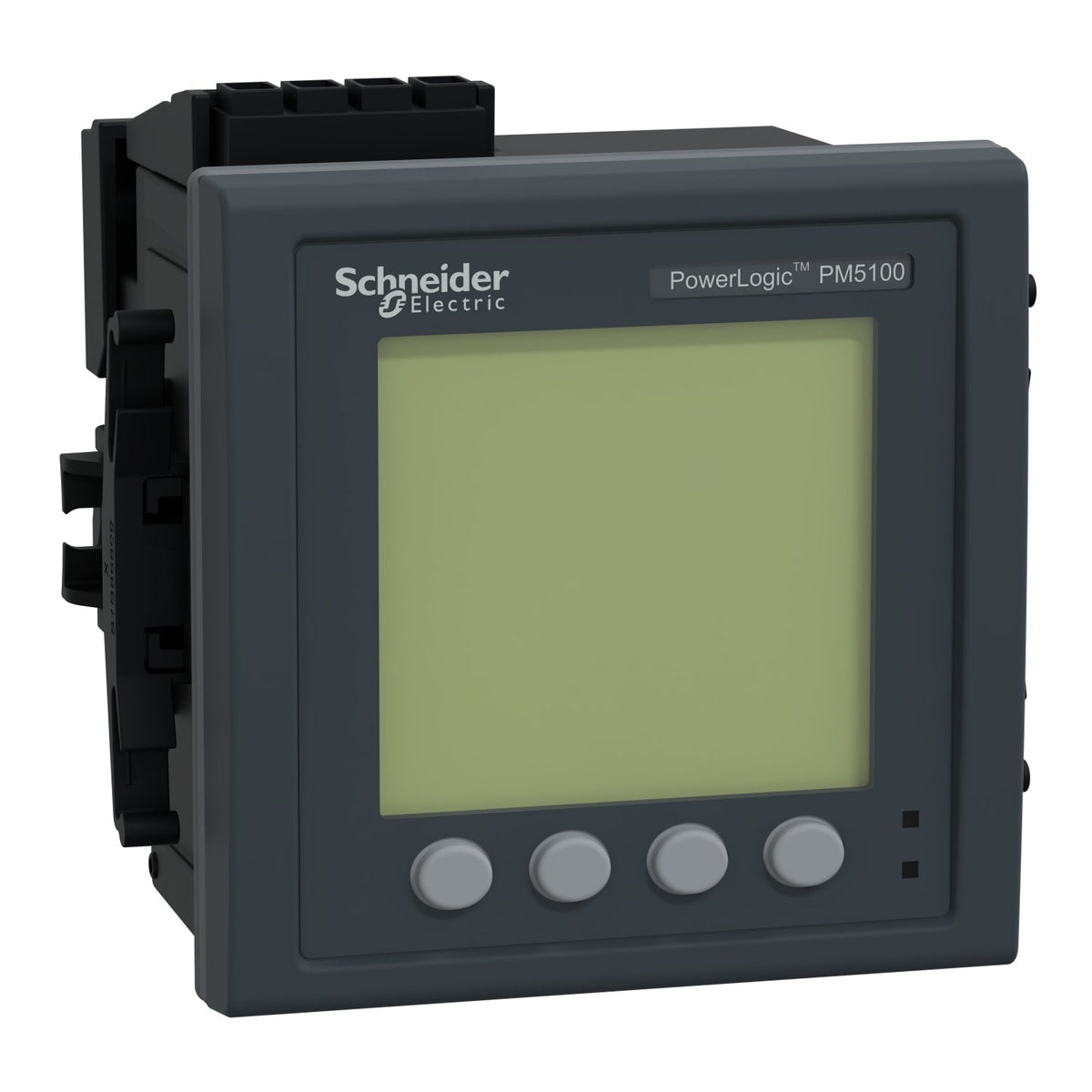

The Schneider Electric METSEPM5110 is a PowerLogic PM5110 flush-mount power meter, measuring energy, active and reactive power, voltage, current, frequency, power factor, and harmonics up to the 15th order with Class 0.5S accuracy to IEC 62053-22. It reads out on a 96 x 96 mm monochrome graphic LCD, communicates over RS485 using Modbus RTU and ASCII, and provides one digital output with 33 configurable alarms.
Certifications & Standards
- CE
- cULus
- IEC 61010-1
- EN 50470-1
- IEC 62053-22
Selection Notes
The METSEPM5110 adds RS485 Modbus and a digital output to the no-comm PM5100, making it the pick whenever readings need to reach a BMS or be alarmed remotely. Against the PM5310, it stays at the 15th-harmonic, 1-digital-output level, so a project needing deeper harmonic analysis, two-way digital I/O, or on-meter memory should move up to the PM5310 instead.
Specification
Full specification
Main 4
| Range | PowerLogic |
|---|---|
| Product name | PowerLogic PM5000 |
| Product or Component Type | Power meter |
| Device short name | PM5110 |
Complementary 32
| Power quality analysis | up to the 15th harmonic |
|---|---|
| Device Application | Power monitoring |
| Type of measurement | Current, Voltage, Frequency, Power factor, Energy, Active and reactive power |
| [Us] rated supply voltage | 90...450 V AC 45...65 Hz, 100...300 V DC |
| Network Frequency | 50 Hz, 60 Hz |
| Line Rated Current | 1 A, 5 A |
| type of network | 1P + N, 3P + N, 3P |
| Maximum power consumption in VA | 11 VA 415 V |
| Ride-through time | 80 ms 120 V AC typical, 100 ms 230 V AC typical, 100 ms 415 V AC typical, 50 ms 125 V DC typical |
| Display Type | Monochrome graphic LCD |
| Display Resolution | 128 x 128 pixels |
| Sampling rate | 64 samples/cycle |
| Measurement current | 50…8500 mA |
| Analogue input type | Voltage (impedance 5 MOhm), Current (impedance <= 0.3 mOhm) |
| Measurement voltage | 35…760 V AC 45...65 Hz between phases, 20…440 V AC 45...65 Hz between phase and neutral |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 0 |
| Measurement accuracy | Active energy +/- 0.5 %, Reactive energy +/- 2 %, Active power +/- 0.5 %, Apparent power +/- 0.5 %, Frequency +/- 0.05 %, Power factor +/- 0.5, Current +/- 0.5 %, Voltage +/- 0.5 %, Apparent energy +/- 0.5 %, Reactive power +/- 2 % |
| Accuracy class | Class 0.5S active energy IEC 62053-22 |
| Number of Outputs | 1 digital |
| Communication port protocol | Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V, JBUS |
| Communication port support | RS485 |
| Data recording | Time stamping, Min/max of instantaneous values |
| Connections - terminals | Voltage circuit screw terminal block4, Control circuit screw terminal block2, Current transformer screw terminal block6, Input/output circuit screw terminal block6, RS485 link screw terminal block4 |
| Mounting Mode | Flush-mounted |
| Mounting support | Framework |
| Standards | UL 61010-1, EN 50470-3, EN 50470-1, IEC 62053-22:2020, IEC 60529, IEC 62053-24, IEC 61557-12:2015, IEC 62053-23:2020, IEC 62052-11:2020, IEC 62052-31:2015 |
| Product certifications | CE conforming to IEC 61010-1, CULus conforming to UL 61010-1 |
| Width | 3.8 in (96 mm) |
| Depth | 2.8 in (72 mm) |
| Height | 3.8 in (96 mm) |
| Net Weight | 13.4 oz (380 g) |
Environment 7
| Electromagnetic compatibility | Voltage dips and interruptions immunity test class A conforming to IEC 61000-4-11, Limits for harmonic current emissions class A conforming to IEC 61000-3-2, Electrostatic discharge level 4 conforming to IEC 61000-4-2, Conducted RF disturbances level 3 conforming to IEC 61000-4-6, Magnetic field at power frequency level 4 conforming to IEC 61000-4-8, Conducted and radiated emissions - test level: 150 kHz...80 MHz class B conforming to EN 55022, Immunity to conducted disturbances - test level: 150 kHz...80 MHz conforming to IEC 61000-4-6, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Surge immunity test class B conforming to IEC 61000-4-5, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
|---|---|
| IP degree of protection | IP54 display: conforming to IEC 60529, IP30 rear: conforming to IEC 60529 |
| Relative humidity | 5…95 % 122 °F (50 °C) non-condensing |
| Pollution degree | 2 |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) meter, -4…158 °F (-20…70 °C) display, -13…-4 °F (-25…-20 °C) with reduced performance) display |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 6561.68 ft (2000 m) CAT III |
Show all 57 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | METSEPM5110 |
|---|---|
| Type designation | PM5110 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480613982 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | IN |
|---|---|
| Shipping weight | 0.38 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
