- Part number
- METSEPM5100
- Model no
- PM5100
Description
About the PM5100
About the PM5100

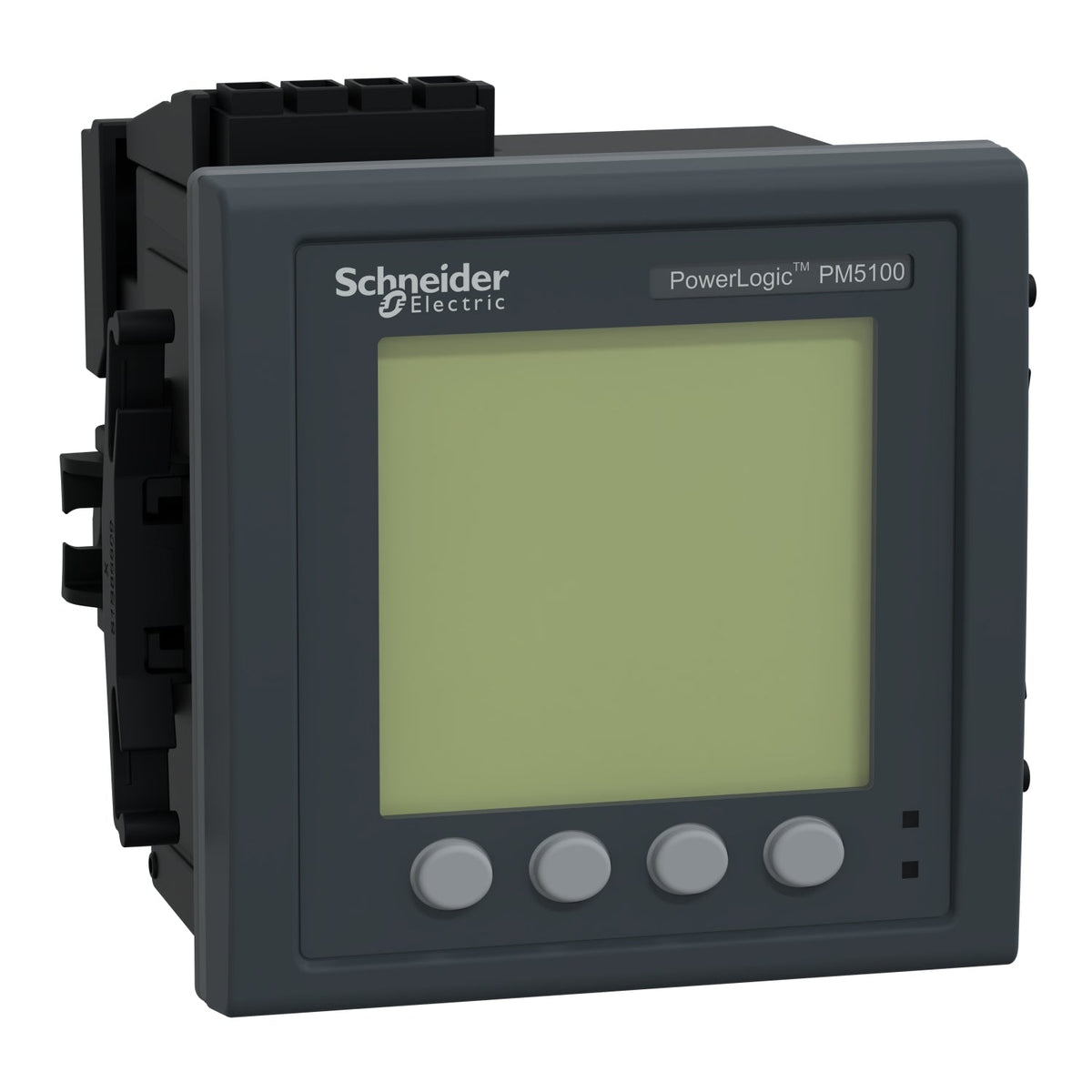

The Schneider Electric METSEPM5100 is a PowerLogic PM5100 flush-mount power meter, measuring energy, active and reactive power, voltage, current, frequency, power factor, and harmonics up to the 15th order with Class 0.5S accuracy to IEC 62053-22. It reads out on a 96 x 96 mm monochrome graphic LCD, provides one pulse output and 33 configurable alarms, and has no communication port.
Certifications & Standards
- CE
- cULus
- IEC 61010-1
- EN 50470-1
- IEC 62053-22
Selection Notes
The METSEPM5100 is the no-communication entry point of the PM5000 flush-mount line, giving Class 0.5S accuracy and 33 alarms with only a pulse output for remote counting. It fits a panel where the reading is checked locally; once the installation needs to poll the meter over Modbus, the METSEPM5110 adds RS485 in the identical body and display.
Specification
Full specification
Main 4
| Range | PowerLogic |
|---|---|
| Product name | PowerLogic PM5000 |
| Product or component type | Power meter |
| Device short name | PM5100 |
Complementary 32
| Power quality analysis | up to the 15th harmonic |
|---|---|
| Device application | Power monitoring |
| Type of measurement | Current, Voltage, Frequency, Power factor, Energy, Active and reactive power |
| [Us] rated supply voltage | 90...450 V AC 45...65 Hz, 100...300 V DC |
| Network frequency | 60 Hz, 50 Hz |
| [In] rated current | 5 A, 1 A |
| type of network | 3P + N, 1P + N, 3P |
| Maximum power consumption in VA | 11 VA at 415 V |
| Ride-through time | 80 ms 120 V AC typical, 100 ms 230 V AC typical, 100 ms 415 V AC typical, 50 ms 125 V DC typical |
| Display type | Monochrome graphic LCD |
| Display resolution | 128 x 128 pixels |
| Sampling rate | 64 samples/cycle |
| Measurement current | 50…8500 mA |
| Analogue input type | Voltage (impedance 5 MOhm), Current (impedance <= 0.3 mOhm) |
| Measurement voltage | 35…760 V AC 45...65 Hz between phases, 20…400 V AC 45...65 Hz between phase and neutral |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 0 |
| Measurement accuracy | Active energy +/- 0.5 %, Reactive energy +/- 2 %, Active power +/- 0.5 %, Apparent power +/- 0.5 %, Frequency +/- 0.05 %, Power factor +/- 0.5, Current +/- 0.5 %, Voltage +/- 0.5 %, Apparent energy +/- 0.5 %, Reactive power +/- 2 % |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 |
| Number of outputs | 1 pulse (energy) |
| Communication port protocol | - |
| Communication port support | - |
| Data recording | Min/max of instantaneous values, Time stamping |
| Connections - terminals | Voltage circuit: screw terminal block4, Control circuit: screw terminal block2, Current transformer: screw terminal block6, Input/output circuit: screw terminal block6, RS485 link: screw terminal block4 |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Standards | EN 50470-1, IEC 62053-22:2020, UL 61010-1, IEC 62053-24, IEC 61557-12:2015, EN 50470-3, IEC 60529, IEC 62053-23:2020, IEC 62052-11:2020, IEC 62052-31:2015 |
| Product certifications | CE conforming to IEC 61010-1, CULus conforming to UL 61010-1 |
| Width | 96 mm |
| Depth | 72 mm |
| Height | 96 mm |
| Net weight | 380 g |
Environment 7
| Electromagnetic compatibility | Limits for harmonic current emissions class A conforming to IEC 61000-3-2, Electrostatic discharge level 4 conforming to IEC 61000-4-2, Conducted RF disturbances level 3 conforming to IEC 61000-4-6, Magnetic field at power frequency level 4 conforming to IEC 61000-4-8, Conducted and radiated emissions class B conforming to EN 55022, Immunity to conducted disturbances - test level: 150 kHz...80 MHz conforming to IEC 61000-4-6, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Surge immunity test conforming to IEC 61000-4-5, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
|---|---|
| IP degree of protection | IP54 display: conforming to IEC 60529, IP30 rear: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C non-condensing |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25…70 °C meter, -20…70 °C display, -25…-20 °C (with reduced performance) display |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 2000 m CAT III |
Show all 73 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | METSEPM5100 |
|---|---|
| Type designation | PM5100 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 13.000 cm |
| Package 1 Length | 13.000 cm |
| Package 1 Weight | 477.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.331 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 61.436 kg |
| Shipping weight | 0.38 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
