Part number
METSEPM3255
Model no
PM3255
$197.34 On request Dispatch — · From TürkiyeGet a Quote

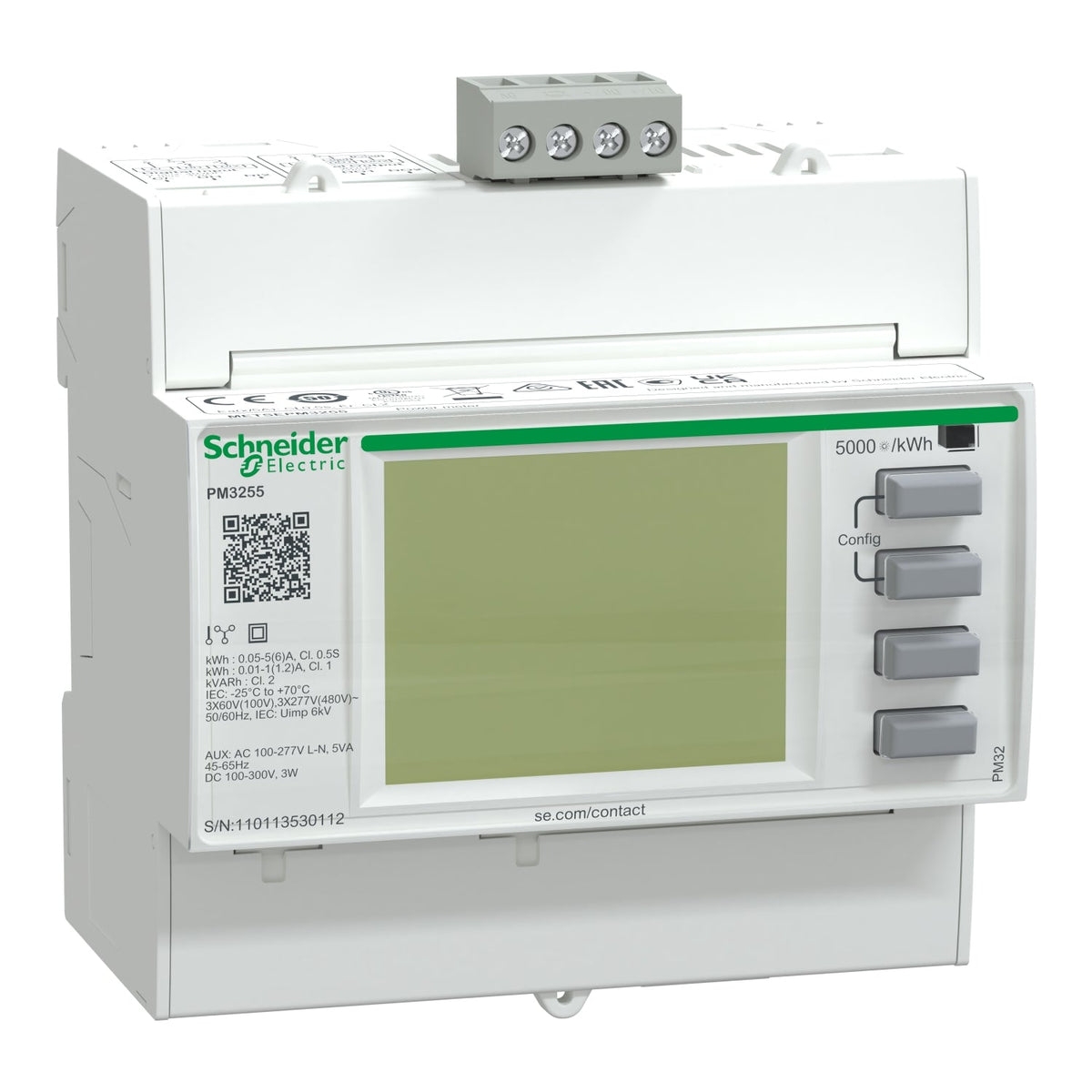

Schneider Electric METSEPM3255 PowerLogic PM3255 Power Meter Class 0.5S DIN Mount 2DI 2DO RS485 Power Meter

PowerLogic PM3255 DIN-mount power meter, Class 0.5S IEC 62053-22, 2 digital I/O, RS485 Modbus, 512 kB memory.

Rated current
5 A
Rated operational voltage
570 V AC
Communication
Modbus RTU/ASCII RS485
Display
Backlit LCD, 128 x 96 pixels
EAN
3606480481611
Description

About the PM3255

The Schneider Electric METSEPM3255 is a PowerLogic PM3255 DIN-rail power meter, measuring energy, active and reactive power, voltage, current, frequency, power factor, and harmonics up to the 15th order with Class 0.5S accuracy to IEC 62053-22. It reads out on a backlit 128 x 96 pixel LCD, communicates over RS485 Modbus, and adds 2 digital inputs plus 2 static digital outputs with 512 kB of onboard logging.

Certifications & Standards

  • CE
  • UKCA
  • CULus
  • EAC
  • RCM
  • IEC 61557-12
  • IEC 62053-21
  • IEC 62053-22

Selection Notes

The METSEPM3255 is the fullest DIN-rail PM3000 variant in this batch, adding 2 digital inputs, 2 digital outputs, and 512 kB of onboard power and energy logging to the RS485 link the PM3250 already has. Choose it over the PM3250 whenever the installation needs to capture a breaker status or trip signal locally alongside remote Modbus polling, or needs the extra memory for on-meter trend logs.

Specification

Full specification

61 values · Last verified 30 Oct 2026

Main 5

Range PowerLogic
Product name PowerLogic PM3000
Product or Component Type Power meter
Device short name PM3255
Market segment Buildings small building cost management: billing: sub feeder, Buildings medium building cost management: billing: sub feeder, Buildings large building cost management: billing: sub feeder, Buildings multi-site cost management: billing: sub feeder, Data center cost management: billing: sub feeder, Healthcare cost management: billing: sub feeder, Industry cost management: billing: sub feeder, Buildings small building cost management: cost allocation: sub feeder, Buildings medium building cost management: cost allocation: sub feeder, Buildings large building cost management: cost allocation: sub feeder, Buildings multi-site cost management: cost allocation: sub feeder, Data center cost management: cost allocation: sub feeder, Healthcare cost management: cost allocation: sub feeder, Industry cost management: cost allocation: sub feeder

Complementary 33

Power quality analysis up to the 15th harmonic
Device Application Multi-tariff, Power monitoring, Sub billing
Type of measurement Active and reactive power, Apparent power, Current, Voltage, Energy, Power factor, Frequency, Total current harmonic distortion THD (I), Total voltage harmonic distortion THD (U)
supply voltage 100...277 V AC 45...65 Hz, 173...480 V AC 45...65 Hz, 100...300 V DC
Network Frequency 60 Hz, 50 Hz
Line Rated Current 5 A, 1 A
type of network 3P, 3P + N, 1P + N
Power Consumption in VA 5 VA
Display Type Backlit LCD
Display Resolution 128 x 96 pixels
Sampling rate 32 samples/cycle
Measurement current 0.02…1.2 A, 0.05…6 A
Analogue input type Current 0...5 A, Current 0...1 A
Measurement voltage 50…330 V AC 45...65 Hz direct, 50…330 V AC 45...65 Hz phase to neutral, 80…570 V AC 45...65 Hz direct, 80…570 V AC 45...65 Hz phase to phase, 570…999000 V AC 45...65 Hz with external VT
Frequency measurement range 45…65 Hz
Number of inputs 2 digital 0...4 mA 11...40 V DC
Measurement accuracy Current 0.3 % 0.5...6 A, Current 0.5 % 0.1...1.2 A, Voltage 0.3 % 50...330 V, Voltage 0.3 % 80...570 V
Accuracy class Class 0.5S active energy IEC 62053-22, Class 1 active energy IEC 62053-21, Class 2 reactive energy IEC 62053-23, Class C active energy EN 50470-3
Number of Outputs 2 digital (static)
Information displayed Tariff 4)
Communication port protocol Modbus 9.6...38.4 kbauds
Communication port support RS485
Data recording Energy consumption logs, 15 alarms, Power logs, Time stamping, Min/max of instantaneous values
Memory capacity 512 KB
Mounting Mode Clip-on
Mounting support DIN rail
Standards BS EN 61557-12, IEC 61557-12, EN 61557-12, BS EN 61326-1, IEC 61326-1, EN 61326-1, BS EN 62052-11, IEC 62052-11, EN 62052-11, BS EN 62053-21, IEC 62053-21, EN 62053-21, BS EN 62053-22, IEC 62053-22, EN 62052-22, BS EN 62053-23, IEC 62053-23, EN 62052-23, BS EN 61010-1, EN 61010-1, IEC 61010-1, UL 61010-1, BS EN 61010-2-30, IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, ANSI C12.20
Product certifications CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), CULus EN 61010-1 safety), CULus UL 61010-1 safety), EAC sub-meter), RCM
Width 3.5 in (90 mm)
Depth 2.8 in (70 mm)
Height 3.7 in (95 mm)
Net Weight 0.57 lb(US) (0.26 kg)
Market Segment Small commercial, Residential

Environment 9

Electromagnetic compatibility Electrostatic discharge level 4 conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, Surge immunity test level 4 conforming to IEC 61000-4-5, Conducted RF disturbances level 3 conforming to IEC 61000-4-6, Magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8, Conducted and radiated emissions class B conforming to EN 55022
Overvoltage category III
IP degree of protection IP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529
Relative humidity 5…95 % 122 °F (50 °C)
Pollution degree 2
Ambient air temperature for operation -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Operating altitude < 9842.52 ft (3000 m)
Compatibility code PM3255
Show all 61 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number METSEPM3255
Type designation PM3255
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480481611

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 0.26 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSEPM3255

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CE
  • UKCA
  • EAC
  • BS EN 61557-12
  • IEC 61557-12
  • EN 61557-12
  • BS EN 61326-1
  • IEC 61326-1
  • EN 61326-1
  • BS EN 62052-11
  • IEC 62052-11
  • EN 62052-11
  • BS EN 62053-21
  • IEC 62053-21
  • EN 62053-21
Quick answers

Questions about the PM3255

What is the rated current of PM3255?

The rated current of PM3255 is 5 A.

Which supply voltage is PM3255 rated for?

The rated operational voltage of PM3255 is 570 V AC.

What is the HS code of PM3255 for customs?

The tariff (HS) code on file for PM3255 is 902830.

What is the EAN of PM3255?

The EAN (GTIN) of PM3255 is 3606480481611.

Where does PM3255 ship from, and how fast?

PM3255 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
