Part number
METSEPM3250
Model no
PM3250
$191.02 On request Dispatch — · From TürkiyeGet a Quote

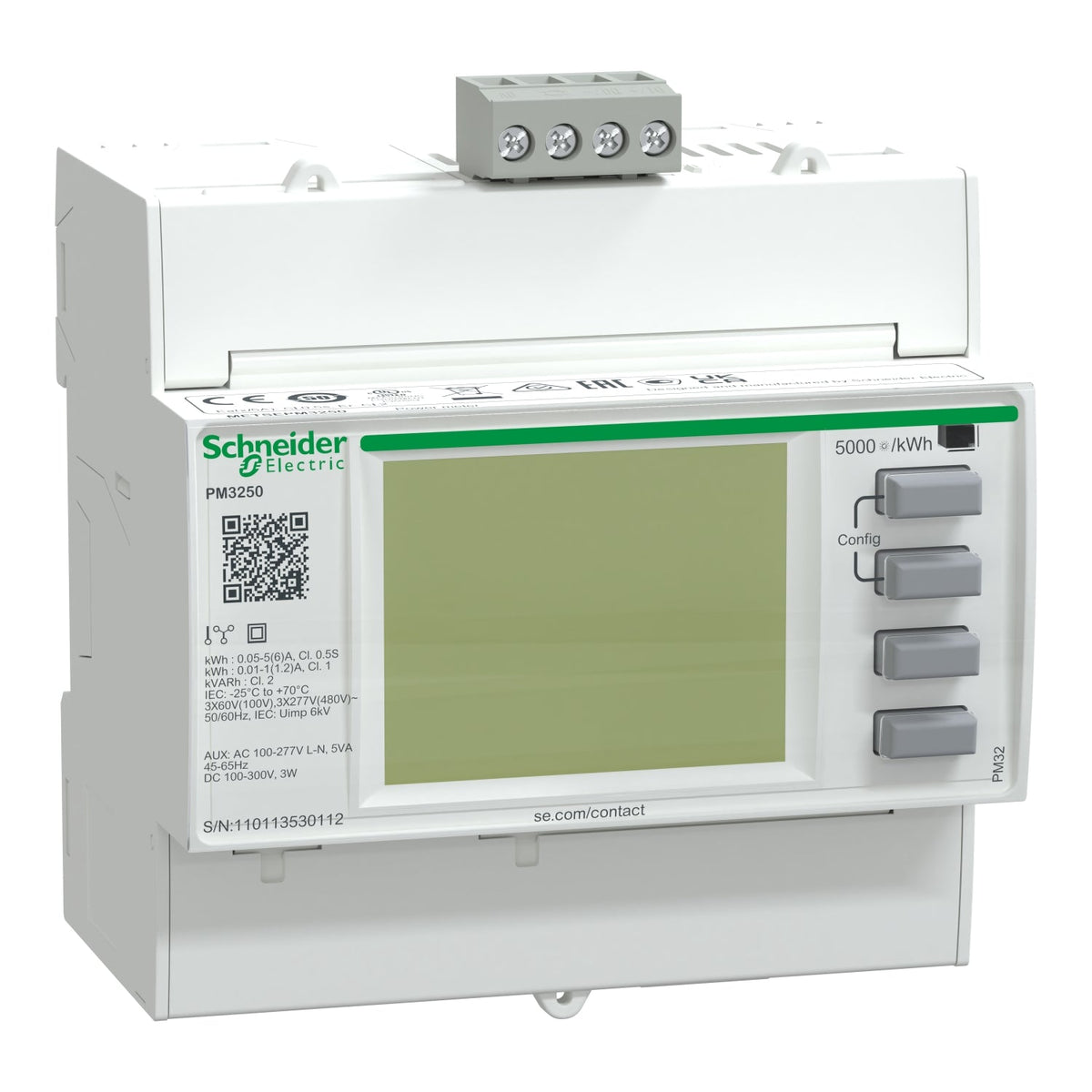

Schneider Electric METSEPM3250 PowerLogic PM3250 Power Meter Class 0.5S DIN Mount RS485 Modbus Power Meter

PowerLogic PM3250 DIN-mount power meter, Class 0.5S IEC 62053-22, 15th harmonic, RS485 Modbus.

Rated current
5 A
Rated operational voltage
570 V AC
Communication
Modbus RTU/ASCII RS485
Display
Backlit LCD, 128 x 96 pixels
EAN
3606480481604
Description

About the PM3250

The Schneider Electric METSEPM3250 is a PowerLogic PM3250 DIN-rail power meter, measuring energy, active and reactive power, voltage, current, frequency, power factor, and harmonics up to the 15th order with Class 0.5S accuracy to IEC 62053-22. It reads out on a backlit 128 x 96 pixel LCD and communicates over RS485 using Modbus RTU and ASCII, with up to 5 configurable alarms.

Certifications & Standards

  • CE
  • UKCA
  • CULus
  • EAC
  • RCM
  • IEC 61557-12
  • IEC 62053-21
  • IEC 62053-22

Selection Notes

The METSEPM3250 is the RS485 Modbus counterpart to the PM3210, trading the local digital output for a communication link to a BMS or data logger. Use it when readings need to be polled remotely; if the application also needs digital status inputs and outputs on top of Modbus, the METSEPM3255 covers that in the same DIN-rail body.

Specification

Full specification

60 values · Last verified 30 Oct 2026

Main 5

Range PowerLogic
Product name PowerLogic PM3000
Product or Component Type Power meter
Device short name PM3250
Market segment Buildings small building cost management: billing: sub feeder, Buildings medium building cost management: billing: sub feeder, Buildings large building cost management: billing: sub feeder, Buildings multi-site cost management: billing: sub feeder, Data center cost management: billing: sub feeder, Healthcare cost management: billing: sub feeder, Industry cost management: billing: sub feeder, Buildings small building cost management: cost allocation: sub feeder, Buildings medium building cost management: cost allocation: sub feeder, Buildings large building cost management: cost allocation: sub feeder, Buildings multi-site cost management: cost allocation: sub feeder, Data center cost management: cost allocation: sub feeder, Healthcare cost management: cost allocation: sub feeder, Industry cost management: cost allocation: sub feeder

Complementary 32

Power quality analysis up to the 15th harmonic
Device Application Multi-tariff, Power monitoring, Sub billing
Type of measurement Active and reactive power, Apparent power, Current, Voltage, Energy, Power factor, Frequency, Total current harmonic distortion THD (I), Total voltage harmonic distortion THD (U)
supply voltage 100...277 V AC 45...65 Hz, 173...480 V AC 45...65 Hz, 100...300 V DC
Network Frequency 60 Hz, 50 Hz
Line Rated Current 5 A, 1 A
type of network 1P + N, 3P, 3P + N
Power Consumption in VA 5 VA
Display Type Backlit LCD
Display Resolution 128 x 96 pixels
Sampling rate 32 samples/cycle
Measurement current 0.02…1.2 A, 0.05…6 A
Analogue input type Current 0...5 A, Current 0...1 A
Measurement voltage 50…330 V AC 45...65 Hz direct, 50…330 V AC 45...65 Hz phase to neutral, 80…570 V AC 45...65 Hz direct, 80…570 V AC 45...65 Hz phase to phase, 570…999000 V AC 45...65 Hz with external VT
Frequency measurement range 45…65 Hz
Number of inputs 0
Measurement accuracy Current 0.3 % 0.5...6 A, Current 0.5 % 0.1...1.2 A, Voltage 0.3 % 50...330 V, Voltage 0.3 % 80...570 V
Accuracy class Class 0.5S active energy IEC 62053-22, Class 1 active energy IEC 62053-21, Class 2 reactive energy IEC 62053-23, Class C active energy EN 50470-3
Number of Outputs 0
Information displayed Tariff 4)
Communication port protocol Modbus 9.6...38.4 kbauds
Communication port support RS485
Data recording Time stamping, Min/max of instantaneous values, 5 alarms
Mounting Mode Clip-on
Mounting support DIN rail
Standards BS EN 61557-12, IEC 61557-12, EN 61557-12, BS EN 61326-1, IEC 61326-1, EN 61326-1, BS EN 62052-11, IEC 62052-11, EN 62052-11, BS EN 62053-21, IEC 62053-21, EN 62053-21, BS EN 62053-22, IEC 62053-22, EN 62052-22, BS EN 62053-23, IEC 62053-23, EN 62052-23, BS EN 61010-1, EN 61010-1, IEC 61010-1, UL 61010-1, BS EN 61010-2-30, IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, ANSI C12.20
Product certifications CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), CULus EN 61010-1 safety), CULus UL 61010-1 safety), EAC sub-meter), RCM
Width 3.5 in (90 mm)
Depth 2.8 in (70 mm)
Height 3.7 in (95 mm)
Net Weight 0.57 lb(US) (0.26 kg)
Market Segment Residential, Small commercial

Environment 9

Electromagnetic compatibility Electrostatic discharge level 4 conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, Surge immunity test level 4 conforming to IEC 61000-4-5, Conducted RF disturbances level 3 conforming to IEC 61000-4-6, Magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8, Conducted and radiated emissions class B conforming to EN 55022
Overvoltage category III
IP degree of protection IP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529
Relative humidity 5…95 % 122 °F (50 °C)
Pollution degree 2
Ambient air temperature for operation -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Operating altitude < 9842.52 ft (3000 m)
Compatibility code PM3250
Show all 60 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number METSEPM3250
Type designation PM3250
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480481604

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 0.26 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSEPM3250

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CE
  • UKCA
  • EAC
  • BS EN 61557-12
  • IEC 61557-12
  • EN 61557-12
  • BS EN 61326-1
  • IEC 61326-1
  • EN 61326-1
  • BS EN 62052-11
  • IEC 62052-11
  • EN 62052-11
  • BS EN 62053-21
  • IEC 62053-21
  • EN 62053-21
Quick answers

Questions about the PM3250

What is the rated current of PM3250?

The rated current of PM3250 is 5 A.

Which supply voltage is PM3250 rated for?

The rated operational voltage of PM3250 is 570 V AC.

What is the HS code of PM3250 for customs?

The tariff (HS) code on file for PM3250 is 902830.

What is the EAN of PM3250?

The EAN (GTIN) of PM3250 is 3606480481604.

Where does PM3250 ship from, and how fast?

PM3250 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
