- Part number
- METSEPM3210
- Model no
- PM3210
Description
About the PM3210
About the PM3210

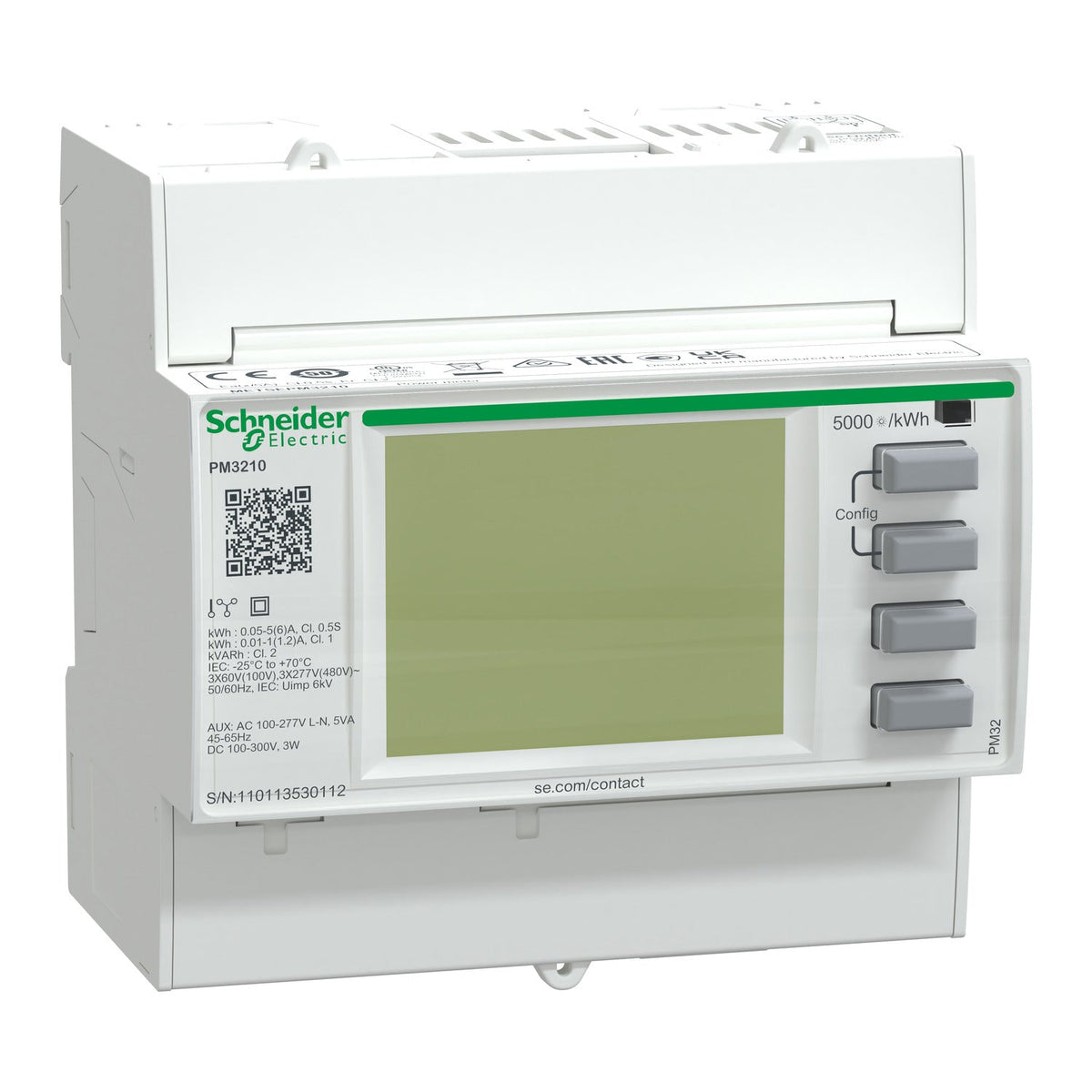

The Schneider Electric METSEPM3210 is a PowerLogic PM3210 DIN-rail power meter, measuring energy, active and reactive power, voltage, current, frequency, power factor, and harmonics up to the 15th order with Class 0.5S accuracy to IEC 62053-22. It reads out on a backlit 128 x 96 pixel LCD and provides one digital pulse output, with up to 5 configurable alarms, but no communication port.
Certifications & Standards
- CE
- UKCA
- CULus
- EAC
- RCM
- IEC 61557-12
- IEC 62053-21
- IEC 62053-22
Selection Notes
The METSEPM3210 adds a digital pulse output and 5-alarm logging to the base PM3200, so it is the pick when the meter needs to drive a pulse counter or local alarm relay without a full Modbus link. If remote polling over RS485 is required instead of a local output, the METSEPM3250 is the equivalent communicating variant.
Specification
Full specification
Main 5
| Range | PowerLogic |
|---|---|
| Product name | PowerLogic PM3000 |
| Product or Component Type | Power meter |
| Device short name | PM3210 |
| Market segment | Buildings small building cost management: billing: sub feeder, Buildings medium building cost management: billing: sub feeder, Buildings large building cost management: billing: sub feeder, Buildings multi-site cost management: billing: sub feeder, Data center cost management: billing: sub feeder, Healthcare cost management: billing: sub feeder, Industry cost management: billing: sub feeder, Buildings small building cost management: cost allocation: sub feeder, Buildings medium building cost management: cost allocation: sub feeder, Buildings large building cost management: cost allocation: sub feeder, Buildings multi-site cost management: cost allocation: sub feeder, Data center cost management: cost allocation: sub feeder, Healthcare cost management: cost allocation: sub feeder, Industry cost management: cost allocation: sub feeder |
Complementary 32
| Power quality analysis | up to the 15th harmonic |
|---|---|
| Device Application | Power monitoring, Multi-tariff, Sub billing |
| Type of measurement | Active and reactive power, Apparent power, Current, Voltage, Energy, Power factor, Frequency, Total current harmonic distortion THD (I), Total voltage harmonic distortion THD (U) |
| supply voltage | 100...277 V AC 45...65 Hz, 173...480 V AC 45...65 Hz, 100...300 V DC |
| Network Frequency | 50 Hz, 60 Hz |
| Line Rated Current | 1 A, 5 A |
| type of network | 3P, 3P + N, 1P + N |
| Power Consumption in VA | 5 VA |
| Display Type | Backlit LCD |
| Display Resolution | 128 x 96 pixels |
| Sampling rate | 32 samples/cycle |
| Measurement current | 0.05…6 A, 0.02…1.2 A |
| Analogue input type | Current 0...5 A, Current 0...1 A |
| Measurement voltage | 50…330 V AC 45...65 Hz direct, 50…330 V AC 45...65 Hz phase to neutral, 80…570 V AC 45...65 Hz direct, 80…570 V AC 45...65 Hz phase to phase, 570…999000 V AC 45...65 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 0 |
| Measurement accuracy | Current 0.3 % 0.5...6 A, Current 0.5 % 0.1...1.2 A, Voltage 0.3 % 50...330 V, Voltage 0.3 % 80...570 V |
| Accuracy class | Class 0.5S active energy IEC 62053-22, Class 1 active energy IEC 62053-21, Class 2 reactive energy IEC 62053-23, Class C active energy EN 50470-3 |
| Number of Outputs | 1 pulse |
| Information displayed | Tariff 4) |
| Communication port protocol | - |
| Communication port support | - |
| Data recording | Time stamping, 5 alarms, Min/max of instantaneous values |
| Mounting Mode | Clip-on |
| Mounting support | DIN rail |
| Standards | BS EN 61557-12, IEC 61557-12, EN 61557-12, BS EN 61326-1, IEC 61326-1, EN 61326-1, BS EN 62052-11, IEC 62052-11, EN 62052-11, BS EN 62053-21, IEC 62053-21, EN 62053-21, BS EN 62053-22, IEC 62053-22, EN 62052-22, BS EN 62053-23, IEC 62053-23, EN 62052-23, BS EN 61010-1, EN 61010-1, IEC 61010-1, UL 61010-1, BS EN 61010-2-30, IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, ANSI C12.20 |
| Product certifications | CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), CULus EN 61010-1 safety), CULus UL 61010-1 safety), EAC sub-meter), RCM |
| Width | 3.5 in (90 mm) |
| Depth | 2.8 in (70 mm) |
| Height | 3.7 in (95 mm) |
| Net Weight | 0.57 lb(US) (0.26 kg) |
| Market Segment | Residential, Small commercial |
Environment 9
| Electromagnetic compatibility | Electrostatic discharge level 4 conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, Surge immunity test level 4 conforming to IEC 61000-4-5, Conducted RF disturbances level 3 conforming to IEC 61000-4-6, Magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8, Conducted and radiated emissions class B conforming to EN 55022 |
|---|---|
| Overvoltage category | III |
| IP degree of protection | IP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529 |
| Relative humidity | 5…95 % 122 °F (50 °C) |
| Pollution degree | 2 |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | < 9842.52 ft (3000 m) |
| Compatibility code | PM3210 |
Show all 60 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | METSEPM3210 |
|---|---|
| Type designation | PM3210 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480481598 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.26 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for METSEPM3210
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CE
- UKCA
- EAC
- BS EN 61557-12
- IEC 61557-12
- EN 61557-12
- BS EN 61326-1
- IEC 61326-1
- EN 61326-1
- BS EN 62052-11
- IEC 62052-11
- EN 62052-11
- BS EN 62053-21
- IEC 62053-21
- EN 62053-21
Quick answers
Questions about the PM3210
What is the rated current of PM3210?
The rated current of PM3210 is 5 A.
Which supply voltage is PM3210 rated for?
The rated operational voltage of PM3210 is 570 V AC.
What is the HS code of PM3210 for customs?
The tariff (HS) code on file for PM3210 is 902830.
What is the EAN of PM3210?
The EAN (GTIN) of PM3210 is 3606480481598.
Where does PM3210 ship from, and how fast?
PM3210 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
