Part number
METSEPM3200
Model no
PM3200
$175.20 On request Dispatch — · From TürkiyeGet a Quote

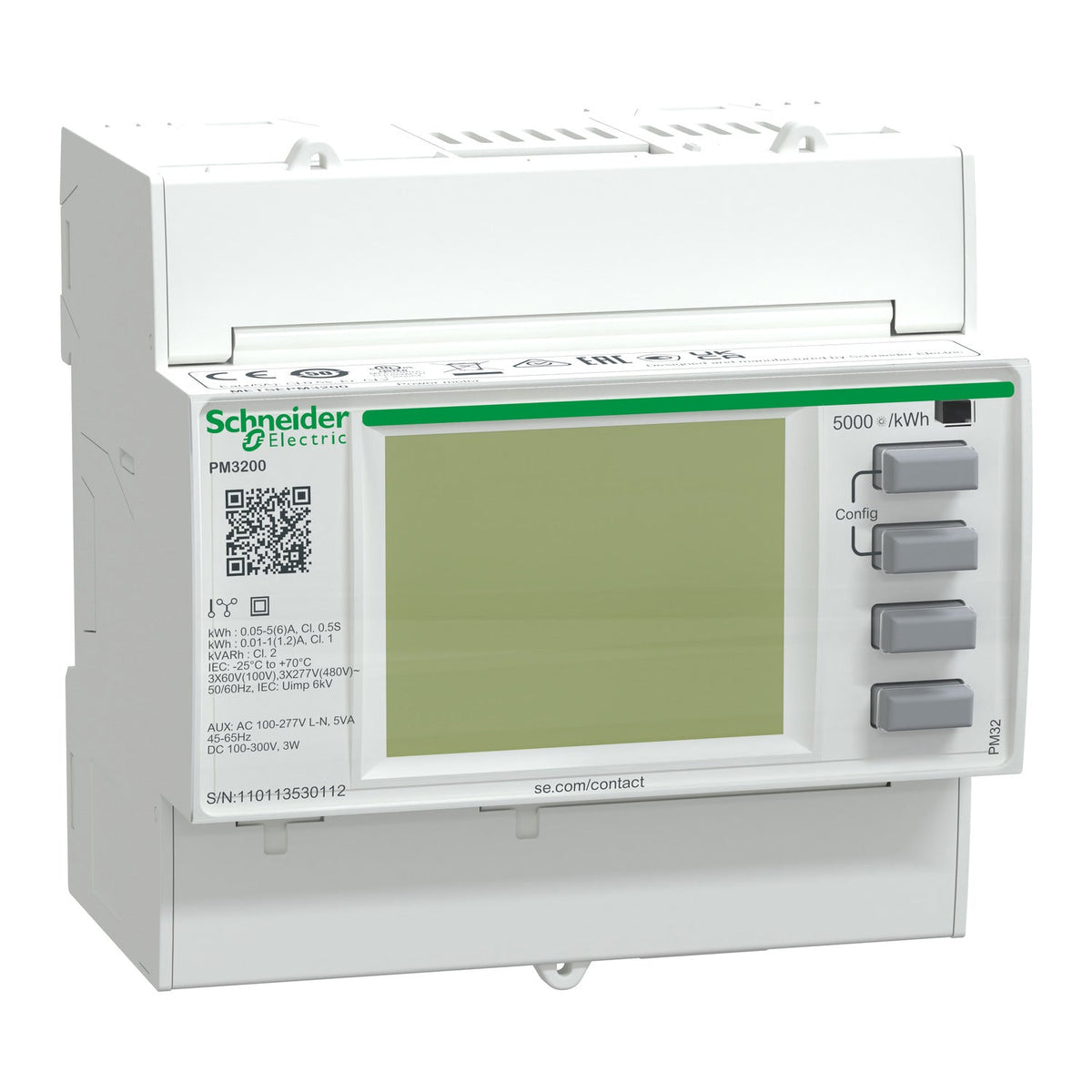

Schneider Electric METSEPM3200 PowerLogic PM3200 Power Meter Class 0.5S DIN Mount LCD Power Meter

PowerLogic PM3200 DIN-mount power meter, Class 0.5S IEC 62053-22, 15th harmonic, LCD, no comm/output.

Rated current
5 A
Rated operational voltage
570 V AC
Display
Backlit LCD, 128 x 96 pixels
EAN
3606480481581
Description

About the PM3200

The Schneider Electric METSEPM3200 is a PowerLogic PM3200 DIN-rail power meter, measuring energy, active and reactive power, voltage, current, frequency, power factor, and harmonics up to the 15th order with Class 0.5S accuracy to IEC 62053-22. It reads out on a backlit 128 x 96 pixel LCD and has no communication port or digital output.

Certifications & Standards

  • CE
  • UKCA
  • CULus
  • EAC
  • RCM
  • IEC 61557-12
  • IEC 62053-21
  • IEC 62053-22

Selection Notes

The METSEPM3200 is the base DIN-rail unit of the PM3000 line, giving Class 0.5S metering on the LCD with no output or communication, so it fits a panel where the reading is checked locally. If the installation needs to trigger an alarm or count a pulse, the METSEPM3210 adds one digital output in the same DIN-rail body; if it needs to report to a BMS, the METSEPM3250 adds RS485 instead.

Specification

Full specification

60 values · Last verified 30 Oct 2026

Main 5

Range PowerLogic
Product name PowerLogic PM3000
Product or Component Type Power meter
Device short name PM3200
Market segment Buildings small building cost management: billing: sub feeder, Buildings medium building cost management: billing: sub feeder, Buildings large building cost management: billing: sub feeder, Buildings multi-site cost management: billing: sub feeder, Data center cost management: billing: sub feeder, Healthcare cost management: billing: sub feeder, Industry cost management: billing: sub feeder, Buildings small building cost management: cost allocation: sub feeder, Buildings medium building cost management: cost allocation: sub feeder, Buildings large building cost management: cost allocation: sub feeder, Buildings multi-site cost management: cost allocation: sub feeder, Data center cost management: cost allocation: sub feeder, Healthcare cost management: cost allocation: sub feeder, Industry cost management: cost allocation: sub feeder

Complementary 32

Power quality analysis up to the 15th harmonic
Device Application Multi-tariff, Sub billing, Power monitoring
Type of measurement Active and reactive power, Apparent power, Current, Voltage, Energy, Power factor, Frequency
supply voltage 100...277 V AC 45...65 Hz, 173...480 V AC 45...65 Hz, 100...300 V DC
Network Frequency 50 Hz, 60 Hz
Line Rated Current 5 A, 1 A
type of network 3P + N, 3P, 1P + N
Power Consumption in VA 5 VA
Display Type Backlit LCD
Display Resolution 128 x 96 pixels
Sampling rate 32 samples/cycle
Measurement current 0.05…6 A, 0.02…1.2 A
Analogue input type Current 0...5 A, Current 0...1 A
Measurement voltage 50…330 V AC 45...65 Hz direct, 50…330 V AC 45...65 Hz phase to neutral, 80…570 V AC 45...65 Hz direct, 80…570 V AC 45...65 Hz phase to phase, 570…999000 V AC 45...65 Hz with external VT
Frequency measurement range 45…65 Hz
Number of inputs 0
Measurement accuracy Current 0.3 % 0.5...6 A, Current 0.5 % 0.1...1.2 A, Voltage 0.3 % 50...330 V, Voltage 0.3 % 80...570 V
Accuracy class Class 0.5S active energy IEC 62053-22, Class 1 active energy IEC 62053-21, Class 2 reactive energy IEC 62053-23, Class C active energy EN 50470-3
Number of Outputs 0
Information displayed Tariff 4)
Communication port protocol -
Communication port support -
Data recording Min/max of instantaneous values
Mounting Mode Clip-on
Mounting support DIN rail
Standards BS EN 61557-12, IEC 61557-12, EN 61557-12, BS EN 61326-1, IEC 61326-1, EN 61326-1, BS EN 62052-11, IEC 62052-11, EN 62052-11, BS EN 62053-21, IEC 62053-21, EN 62053-21, BS EN 62053-22, IEC 62053-22, EN 62052-22, BS EN 62053-23, IEC 62053-23, EN 62052-23, BS EN 61010-1, EN 61010-1, IEC 61010-1, UL 61010-1, BS EN 61010-2-30, IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, ANSI C12.20
Product certifications CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), CULus EN 61010-1 safety), CULus UL 61010-1 safety), EAC sub-meter), RCM
Width 3.5 in (90 mm)
Depth 2.8 in (70 mm)
Height 3.7 in (95 mm)
Net Weight 0.57 lb(US) (0.26 kg)
Market Segment Residential, Small commercial

Environment 9

Electromagnetic compatibility Electrostatic discharge level 4 conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, Surge immunity test level 4 conforming to IEC 61000-4-5, Conducted RF disturbances level 3 conforming to IEC 61000-4-6, Magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8, Conducted and radiated emissions class B conforming to EN 55022
Overvoltage category III
IP degree of protection IP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529
Relative humidity 5…95 % 122 °F (50 °C)
Pollution degree 2
Ambient air temperature for operation -13…158 °F (-25…70 °C)
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Operating altitude < 9842.52 ft (3000 m)
Compatibility code PM3200
Show all 60 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number METSEPM3200
Type designation PM3200
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480481581

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin CN
Shipping weight 0.26 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSEPM3200

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CE
  • UKCA
  • EAC
  • BS EN 61557-12
  • IEC 61557-12
  • EN 61557-12
  • BS EN 61326-1
  • IEC 61326-1
  • EN 61326-1
  • BS EN 62052-11
  • IEC 62052-11
  • EN 62052-11
  • BS EN 62053-21
  • IEC 62053-21
  • EN 62053-21
Quick answers

Questions about the PM3200

What is the rated current of PM3200?

The rated current of PM3200 is 5 A.

Which supply voltage is PM3200 rated for?

The rated operational voltage of PM3200 is 570 V AC.

What is the HS code of PM3200 for customs?

The tariff (HS) code on file for PM3200 is 902830.

What is the EAN of PM3200?

The EAN (GTIN) of PM3200 is 3606480481581.

Where does PM3200 ship from, and how fast?

PM3200 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
