Schneider Electric METSEPM2KDGTLIO22 EasyLogic PM2X30 Digital I/O Module 2 Inputs 2 Power Meter Accessory

% $-41.64

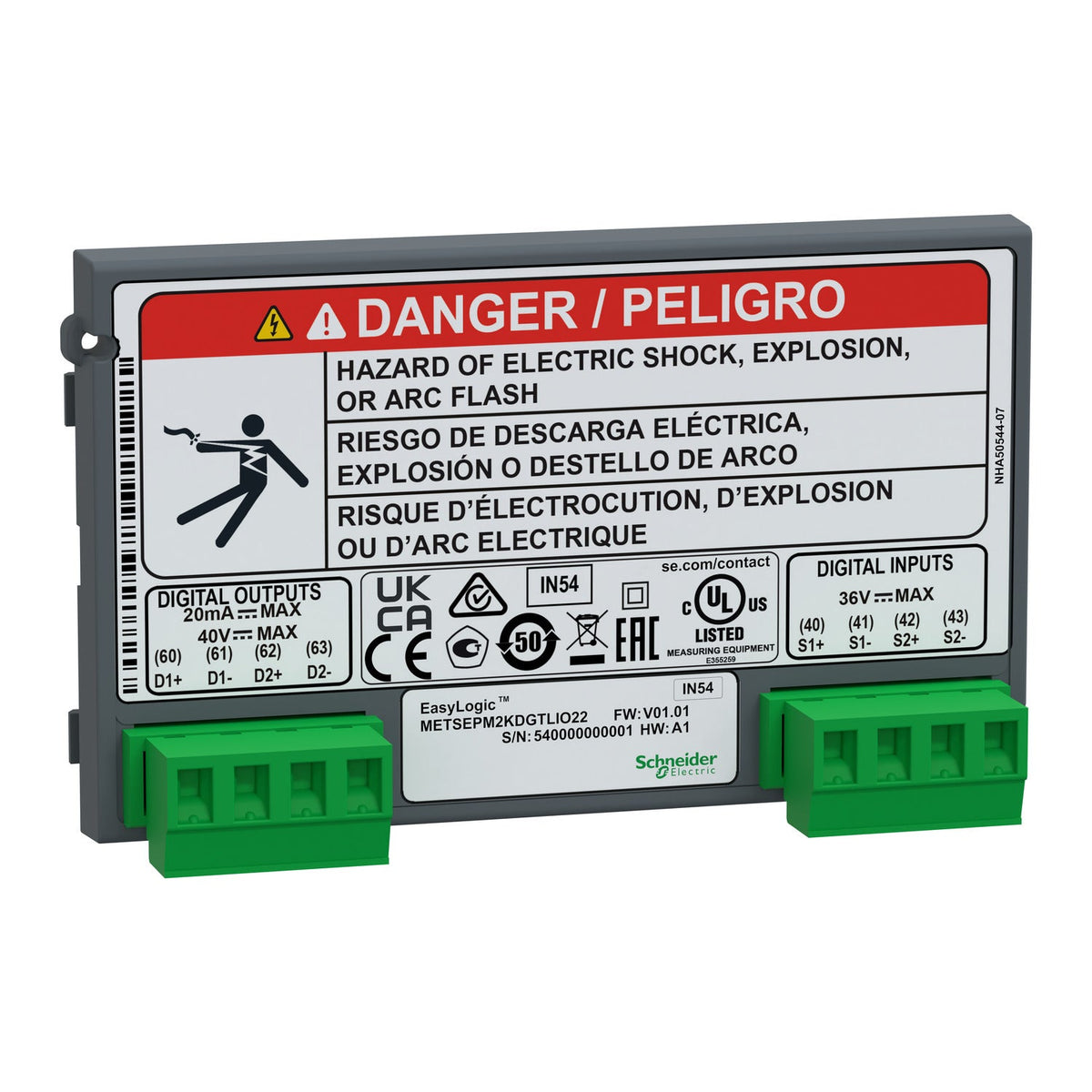

Schneider Electric METSEPM2KDGTLIO22 EasyLogic PM2X30 digital I/O module
Schneider Electric METSEPM2KDGTLIO22 EasyLogic PM2X30 digital I/O module

Schneider Electric METSEPM2KDGTLIO22 EasyLogic PM2X30 Digital I/O Module 2 Inputs 2 Power Meter Accessory

Brand: Schneider Electric
Reference No: METSEPM2KDGTLIO22
Catalog No: METSEPM2KDGTLIO22
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$41.64

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric METSEPM2KDGTLIO22 is an EasyLogic PM2X30 digital I/O expansion module, adding 2 digital status inputs and 2 configurable pulse outputs to a compatible PM2130 or PM2230 power meter. The inputs read a 30 V DC status signal and the outputs pulse energy or parameter values at up to 20 mA, 40 V DC.

Technical Specifications

Reference METSEPM2KDGTLIO22
Brand Schneider Electric
Range EasyLogic
Product type I/O module, optional expansion module
Compatible meters PM2130, PM2230
Number of inputs 2 digital
Voltage state 0 guaranteed 0...4 V DC
Voltage state 1 guaranteed 18.5...36 V DC
Input impedance 110 kOhm
Switching frequency 2 Hz, digital input
Number of outputs 2 configurable, <= 20 mA
Output voltage 40 V DC
Output impedance 50 Ohm
Rated insulation voltage (Ui) 2500 V
Dimensions (W x H x D) 90.5 x 53 x 14.6 mm
Net weight 50 g
Ambient operating temperature -10...60 C

Selection Notes

The METSEPM2KDGTLIO22 is the digital counterpart to the METSEPM2KANLGIO22, giving a PM2130 or PM2230 two status inputs and two configurable pulse outputs instead of 4-20 mA analog channels. Choose it when the application needs to read a breaker status or relay contact and pulse energy data out, rather than interfacing with an analog sensor or actuator.

Technical Details

Short Description
EasyLogic PM2X30 digital I/O module, 2 digital inputs + 2 configurable pulse outputs, for PM2130/PM2230.
Mounting Type
Clips to rear of PM2130/PM2230 meter
Catalog No
METSEPM2KDGTLIO22
Delivery Date (Days)
30 days
Model Number
PM2K2DIDO
Tariff Code
853890
