- Part number
- METSEPM2220
- Model no
- PM2220
Description
About the PM2220
About the PM2220

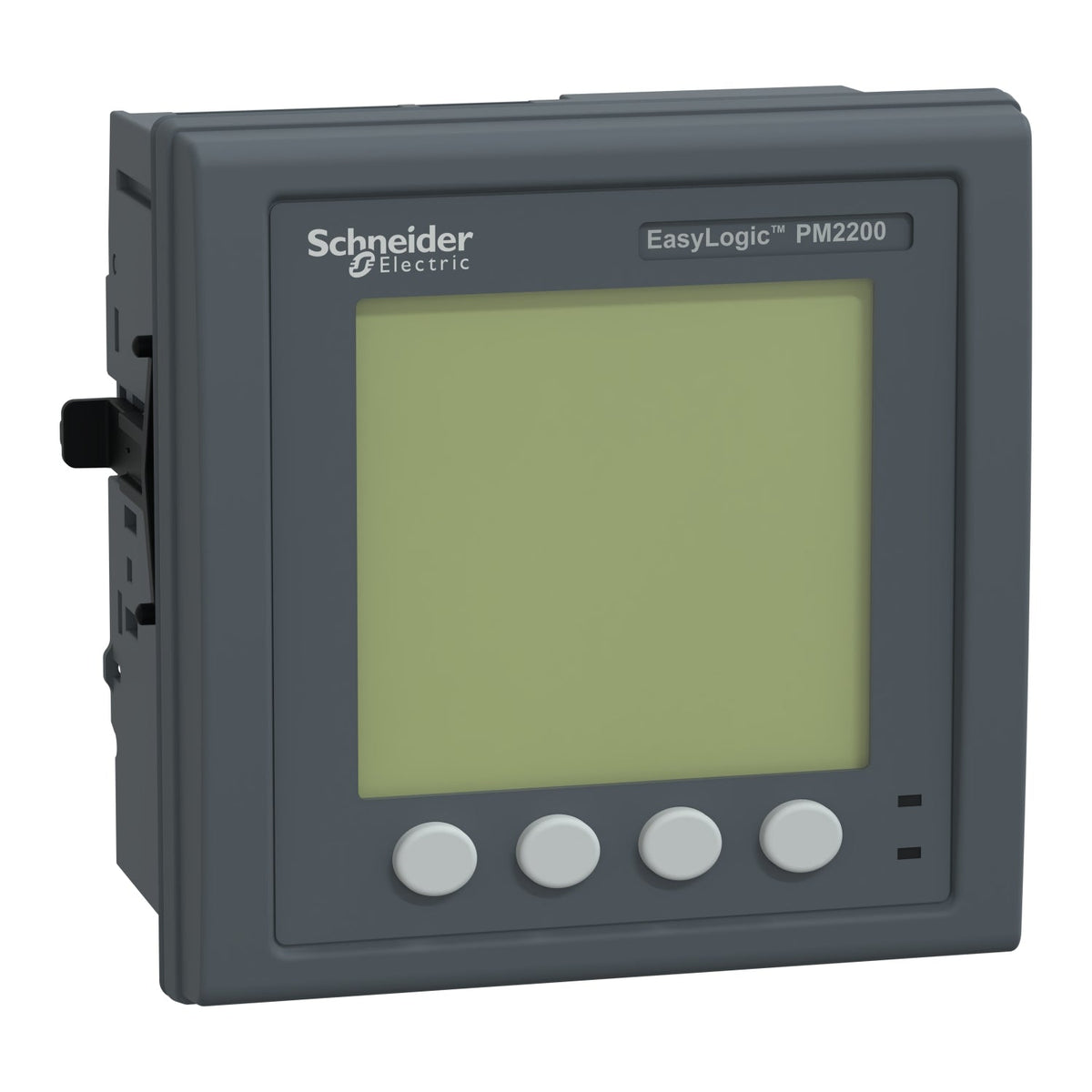

The Schneider Electric METSEPM2220 is an EasyLogic PM2220 power and energy meter, measuring active, reactive, and apparent power and energy with Class 1 accuracy to IEC 62053-21. It reads voltage, current, frequency, power factor, and total harmonic distortion up to the 15th harmonic on a 96 x 96 mm bezel with a backlit 128 x 128 pixel LCD, and communicates over RS485 Modbus RTU.
Certifications & Standards
- CE
- cULus
- RCM
- EAC
Selection Notes
The METSEPM2220 adds RS485 Modbus and 15th-harmonic readout to the LCD-equipped PM2200 body, making it the pick over the pulse-only PM2210 whenever the meter must report to a BMS or energy dashboard. Against the PM2230, it keeps Class 1 accuracy rather than Class 0.5S, enough for sub-billing but not revenue-grade metering.
Specification
Full specification
Main 4
| Range | EasyLogic |
|---|---|
| Product name | EasyLogic PM2200 |
| Product or Component Type | Power meter |
| Device short name | PM2220 |
Complementary 49
| Device Application | Power monitoring, Sub billing |
|---|---|
| Power quality analysis | total harmonic distortion, up to the 15th harmonic |
| Type of measurement | Apparent power min/max, total, Active and reactive power min/max, total, Current min/max, avg, Voltage min/max, avg, Frequency min/max, avg, Total current harmonic distortion THD (I) per phase, Total voltage harmonic distortion THD (U) per phase, Power factor min/max, avg, Apparent energy total, Active and reactive energy total |
| Metering type | Active, reactive, apparent energy (signed, four quadrant), Current I, I1, I2, I3, Peak demand currents, Peak demand power PM, QM, SM, Unbalance current, Active power P, P1, P2, P3, Reactive power Q, Q1, Q2, Q3, Demand power P, Q, S, Voltage U, U21, U32, U13, V, V1, V2, V3, Apparent power S, S1, S2, S3, Calculated neutral current |
| Accuracy class | Class 1 active energy IEC 62053-21, Class 1 reactive energy IEC 62053-24, Class 5 harmonic distortion (I THD & U THD) |
| Measurement accuracy | Apparent power +/- 1 %, Active energy +/- 1 %, Reactive energy +/- 1 %, Active power +/- 1 %, Voltage +/- 0.5 %, Power factor +/- 0.01, Current +/- 0.5 %, Frequency +/- 0.05 % |
| Measurement current | 5…6000 mA |
| Measurement voltage | 35…480 V AC 50/60 Hz between phases, 20…277 V AC 50/60 Hz between phase and neutral, 480…999000 V AC 50/60 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| [Us] rated supply voltage | 44...277 V AC 45...65 Hz +/- 10 %, 44...277 V DC +/- 10 % |
| Network Frequency | 50 Hz, 60 Hz |
| Ride-through time | 100 ms 120 V AC typical, 400 ms 230 V AC typical, 50 ms 125 V DC typical |
| Line Rated Current | 1 A, 5 A |
| Maximum power consumption in VA | 6 VA 277 V AC |
| Maximum power consumption in W | 3.3 W power lines (AC)), 2 W 277 V power lines (DC)) |
| input impedance | Current (impedance <= 0.3 mOhm), Voltage (impedance > 5 MOhm) |
| Tamperproof of settings | Protected by access code |
| Display Type | Backlit LCD |
| Display colour | Monochrome |
| Display Resolution | 128 x 128 pixels |
| Demand intervals | Configurable from 1 to 60 min |
| Information displayed | Demand current past value), Demand current present value), Demand power past value), Demand power present value), Voltage, Current, Frequency, Energy consumption, Harmonic distortion, Power factor, Active power, Apparent power, Reactive power, Unbalanced in %, Harmonic amplitude |
| Control type | 4 x button |
| Local signalling | Red LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh), Green LED module operation and integrated communication |
| Number of inputs | 0 |
| Number of Outputs | 0 |
| Communication port protocol | Modbus RTU 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires 2500 V |
| Communication port support | Screw terminal block RS485 |
| Data recording | Time stamping, Min/max for 8 parameters |
| Function Available | Real time clock |
| Sampling rate | 64 samples/cycle |
| Cybersecurity | Enable/disable communication ports |
| Communication Service | Remote monitoring |
| User Language | Spanish, French, English, Russian, Portuguese, German, Chinese |
| Product certifications | CE conforming to IEC 61010-1, CULus conforming to UL 61010-1, CULus conforming to CSA C22.2 No 61010-1, RCM, EAC, C-tick |
| Mounting Mode | Clip-on |
| Mounting position | Vertical |
| Mounting support | Framework |
| Provided equipment | 1 x Installation guide |
| Measurement category | Category III 480 V, Category II 480…600 V |
| Electrical Insulation Class | Double insulation, Class II |
| Flame retardance | V-0 conforming to UL 94 |
| Connections - terminals | Current transformer screw connection bottom) 6, Voltage inputs screw connection top) 4 |
| Material | Polycarbonate |
| Width | 3.8 in (96 mm) |
| Depth | Total : 3.00 in (76.09 mm), Embedded : 2.43 in (61.64 mm) |
| Height | 3.8 in (96 mm) |
| Net Weight | 10.6 oz (300 g) |
| Compatibility code | PM2220 |
Environment 9
| Service Life | 7 year(s) |
|---|---|
| IP degree of protection | IP54 front: conforming to IEC 60529, IP30 body: conforming to IEC 60529 |
| Relative humidity | 5…95 % 122 °F (50 °C) |
| Pollution degree | 2 |
| Ambient air temperature for operation | 14…140 °F (-10…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4, Surge immunity test conforming to IEC 61000-4-5, Conducted RF disturbances conforming to IEC 61000-4-6, Magnetic field at power frequency conforming to IEC 61000-4-8, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11, Emission tests conforming to FCC Part 15 class A |
| Overvoltage category | III |
Show all 76 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | METSEPM2220 |
|---|---|
| Type designation | PM2220 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480800177 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | IN |
|---|---|
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
