Part number
METSEPM2210
Model no
PM2210
$158.76 On request Dispatch — · From TürkiyeGet a Quote

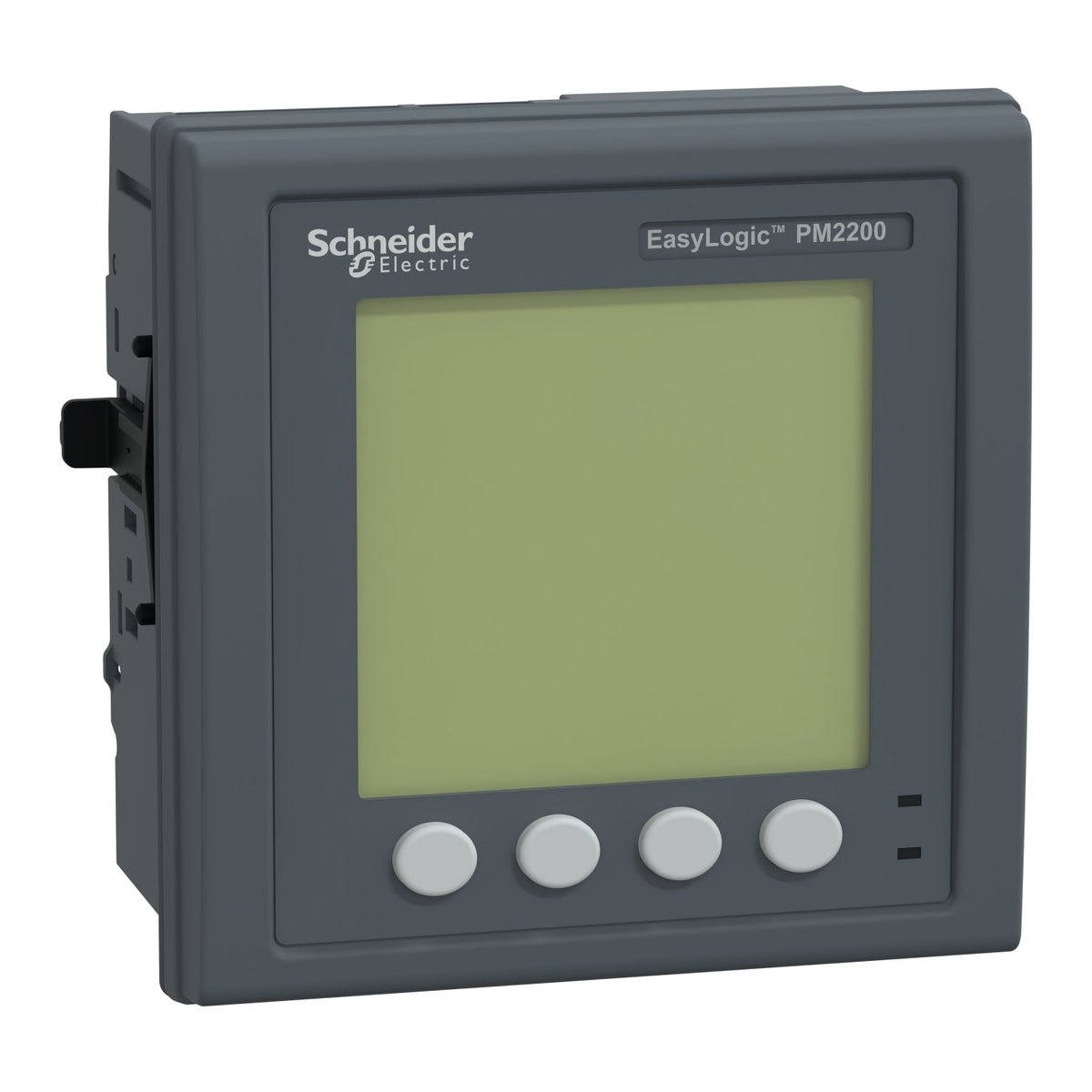

Schneider Electric METSEPM2210 EasyLogic PM2210 Power Meter Class 1 LCD Pulse Output Power Meter

EasyLogic PM2210 power meter, Class 1 IEC 62053-21, THD, LCD display, 1 pulse output, no comm.

Rated current
5 A
Rated operational voltage
480 V AC
Display
Backlit monochrome LCD, 128 x 128 pixels
EAN
3606480800160
Description

About the PM2210

The Schneider Electric METSEPM2210 is an EasyLogic PM2210 power and energy meter, measuring active, reactive, and apparent power and energy with Class 1 accuracy to IEC 62053-21. It reads voltage, current, frequency, power factor, and per-phase total harmonic distortion on a 96 x 96 mm bezel with a backlit 128 x 128 pixel LCD, and outputs one configurable energy pulse.

Certifications & Standards

  • CE
  • cULus
  • RCM
  • EAC

Selection Notes

The METSEPM2210 is the pulse-output, no-communication entry point of the LCD-equipped PM2200 line, giving a graphic display without the RS485 cost of the PM2220. It suits a panel where the reading is checked locally or counted via the pulse line; once a Modbus link is required, the PM2220 adds RS485 in the identical body and display.

Specification

Full specification

75 values · Last verified 30 Oct 2026

Main 4

Range EasyLogic
Product name EasyLogic PM2200
Product or Component Type Power meter
Device short name PM2210

Complementary 48

Device Application Sub billing, Power monitoring
Power quality analysis total harmonic distortion
Type of measurement Apparent power min/max, total, Active and reactive power min/max, total, Current min/max, avg, Voltage min/max, avg, Frequency min/max, avg, Total current harmonic distortion THD (I) per phase, Total voltage harmonic distortion THD (U) per phase, Power factor min/max, avg, Apparent energy total, Active and reactive energy total
Metering type Voltage U, U21, U32, U13, V, V1, V2, V3, Unbalance current, Calculated neutral current, Apparent power S, S1, S2, S3, Peak demand currents, Current I, I1, I2, I3, Active, reactive, apparent energy (signed, four quadrant), Active power P, P1, P2, P3, Reactive power Q, Q1, Q2, Q3, Peak demand power PM, QM, SM, Demand power P, Q, S
Accuracy class Class 1 active energy IEC 62053-21, Class 1 reactive energy IEC 62053-24
Measurement accuracy Apparent power +/- 1 %, Active energy +/- 1 %, Reactive energy +/- 1 %, Active power +/- 1 %, Voltage +/- 0.5 %, Power factor +/- 0.01, Current +/- 0.5 %, Frequency +/- 0.05 %
Measurement current 5…6000 mA
Measurement voltage 35…480 V AC 50/60 Hz between phases, 20…277 V AC 50/60 Hz between phase and neutral, 480…999000 V AC 50/60 Hz with external VT
Frequency measurement range 45…65 Hz
[Us] rated supply voltage 44...277 V AC 45...65 Hz +/- 10 %, 44...277 V DC +/- 10 %
Network Frequency 60 Hz, 50 Hz
Ride-through time 100 ms 120 V AC typical, 400 ms 230 V AC typical, 50 ms 125 V DC typical
Line Rated Current 1 A, 5 A
Maximum power consumption in VA 6 VA 277 V AC
Maximum power consumption in W 3.3 W power lines (AC)), 2 W 277 V power lines (DC))
input impedance Current (impedance <= 0.3 mOhm), Voltage (impedance > 5 MOhm)
Tamperproof of settings Protected by access code
Display Type Backlit LCD
Display colour Monochrome
Display Resolution 128 x 128 pixels
Demand intervals Configurable from 1 to 60 min
Information displayed Demand current past value), Demand current present value), Demand power past value), Demand power present value), Voltage, Current, Frequency, Energy consumption, Harmonic distortion, Power factor, Active power, Apparent power, Reactive power, Unbalanced in %, Harmonic amplitude
Control type 4 x button
Local signalling Red LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh), Green LED module operating (RUN)
Number of inputs 0
Number of Outputs 1 pulse
POP parameter 20 ms 5...40 V DC, 20 mA 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
Impulse duration 20 ms
Communication port protocol POP
Sampling rate 64 samples/cycle
Cybersecurity Enable/disable communication ports
Communication Service Remote monitoring
User Language German, English, Chinese, Russian, Spanish, Portuguese, French
Product certifications CE conforming to IEC 61010-1, CULus conforming to UL 61010-1, CULus conforming to CSA C22.2 No 61010-1, RCM, EAC, C-tick
Mounting Mode Clip-on
Mounting position Vertical
Mounting support Framework
Provided equipment 1 x Installation guide
Measurement category Category III 480 V, Category II 480…600 V
Electrical Insulation Class Class II, Double insulation
Flame retardance V-0 conforming to UL 94
Connections - terminals Current transformer screw connection bottom) 6, Voltage inputs screw connection top) 4
Material Polycarbonate
Width 3.8 in (96 mm)
Depth Total : 3.00 in (76.09 mm), Embedded : 2.43 in (61.64 mm)
Height 3.8 in (96 mm)
Net Weight 10.6 oz (300 g)
Compatibility code PM2210

Environment 9

Service Life 7 year(s)
IP degree of protection IP54 front: conforming to IEC 60529, IP30 body: conforming to IEC 60529
Relative humidity 5…95 % 122 °F (50 °C)
Pollution degree 2
Ambient air temperature for operation 14…140 °F (-10…60 °C)
Ambient Air Temperature for Storage -13…158 °F (-25…70 °C)
Operating altitude <= 6561.68 ft (2000 m)
Electromagnetic compatibility Electrostatic discharge conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4, Surge immunity test conforming to IEC 61000-4-5, Conducted RF disturbances conforming to IEC 61000-4-6, Magnetic field at power frequency conforming to IEC 61000-4-8, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11, Emission tests conforming to FCC Part 15 class A
Overvoltage category III
Show all 75 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number METSEPM2210
Type designation PM2210
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480800160

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IN
Shipping weight 0.3 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for METSEPM2210

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • EAC
Quick answers

Questions about the PM2210

What is the rated current of PM2210?

The rated current of PM2210 is 5 A.

Which supply voltage is PM2210 rated for?

The rated operational voltage of PM2210 is 480 V AC.

What is the HS code of PM2210 for customs?

The tariff (HS) code on file for PM2210 is 902830.

What is the EAN of PM2210?

The EAN (GTIN) of PM2210 is 3606480800160.

Where does PM2210 ship from, and how fast?

PM2210 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
