- Part number
- METSEPM2130
- Model no
- PM2130
Description
About the PM2130
About the PM2130

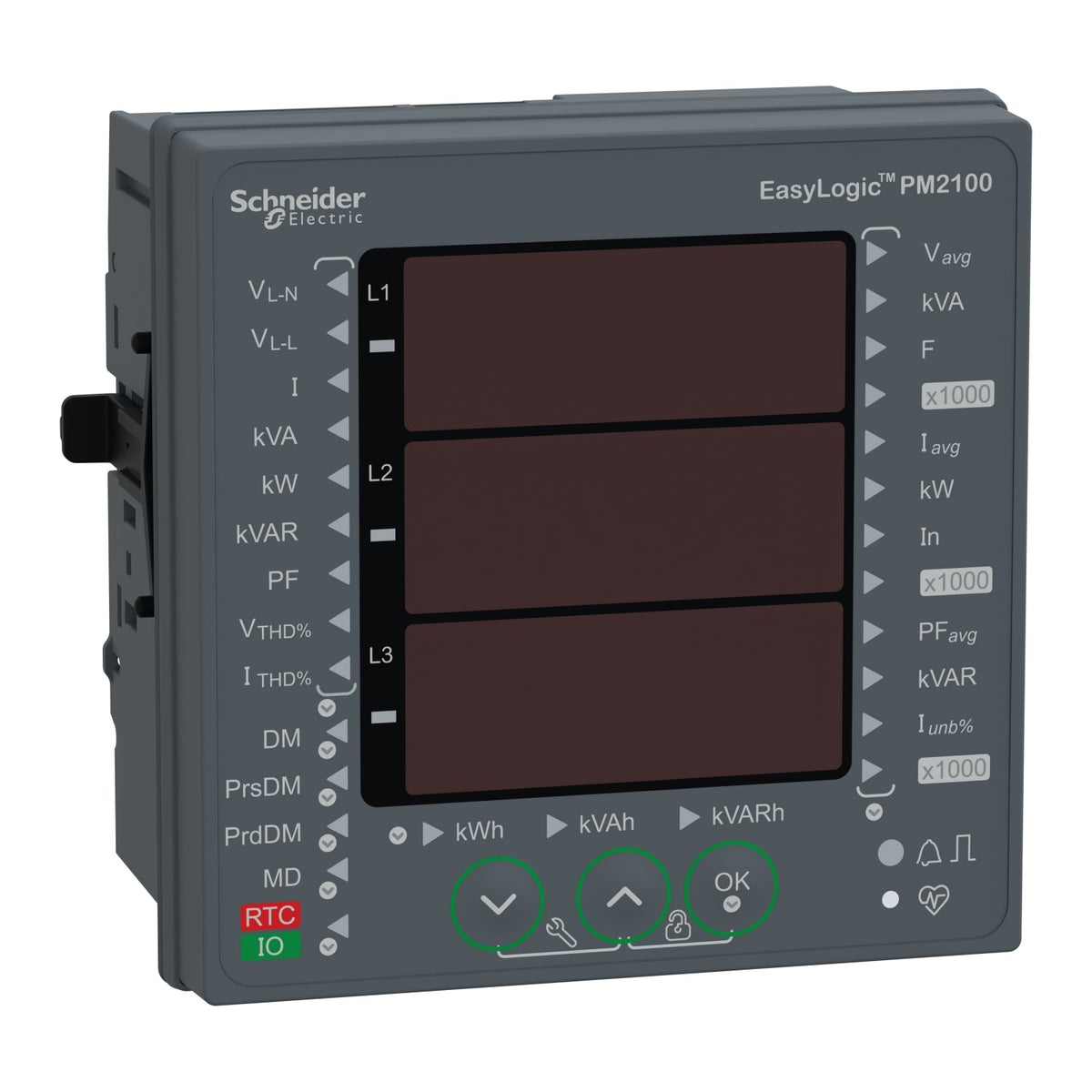

The Schneider Electric METSEPM2130 is an EasyLogic PM2130 power and energy meter, measuring active, reactive, and apparent power and energy with Class 0.5S accuracy to IEC 62053-22. It reads voltage, current, frequency, power factor, and total harmonic distortion up to the 31st harmonic on a 96 x 96 mm bezel with a 3-row red LED display, and communicates over RS485 Modbus RTU.
Certifications & Standards
- CE
- cULus
- RCM
- EAC
Selection Notes
The METSEPM2130 steps up to Class 0.5S active energy accuracy and 31st-harmonic analysis, and it is the only PM2100 variant that accepts the optional analog or digital I/O expansion module for WAGES monitoring. Pick it over the PM2120 when the application needs revenue-grade accuracy or an extra I/O point, not just RS485 connectivity.
Specification
Full specification
Main 4
| Range | EasyLogic |
|---|---|
| Product name | EasyLogic PM2100 |
| Product or Component Type | Power meter |
| Device short name | PM2130 |
Complementary 49
| Device Application | Sub billing, Power monitoring |
|---|---|
| Power quality analysis | total harmonic distortion, up to the 31st harmonic |
| Type of measurement | Apparent power min/max, total, Active and reactive power min/max, total, Current min/max, avg, Voltage min/max, avg, Frequency min/max, avg, Total current harmonic distortion THD (I) per phase, Total voltage harmonic distortion THD (U) per phase, Power factor min/max, avg, Apparent energy total, Active and reactive energy total |
| Metering type | Peak demand currents, Active power P, P1, P2, P3, Demand power P, Q, S, Reactive power Q, Q1, Q2, Q3, Apparent power S, S1, S2, S3, Active, reactive, apparent energy (signed, four quadrant), Voltage U, U21, U32, U13, V, V1, V2, V3, Current I, I1, I2, I3, Calculated neutral current, Unbalance current, Peak demand power PM, QM, SM |
| Accuracy class | Class 1 reactive energy IEC 62053-24, Class 0.5S active energy IEC 62053-22, Class 5 harmonic distortion (I THD & U THD) |
| Measurement accuracy | Apparent power +/- 0.5 %, Active energy +/- 0.5 %, Reactive energy +/- 1 %, Active power +/- 0.5 %, Voltage +/- 0.5 %, Power factor +/- 0.01, Current +/- 0.5 %, Frequency +/- 0.05 % |
| Measurement current | 5…6000 mA |
| Measurement voltage | 35…480 V AC 50/60 Hz between phases, 20…277 V AC 50/60 Hz between phase and neutral, 480…999000 V AC 50/60 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| [Us] rated supply voltage | 80...277 V AC 45...65 Hz +/- 10 %, 100...277 V DC +/- 10 % |
| Network Frequency | 50 Hz, 60 Hz |
| Ride-through time | 50 ms 120 V AC typical, 50 ms 230 V AC typical, 50 ms 125 V DC typical |
| Line Rated Current | 1 A, 5 A |
| Maximum power consumption in VA | 8 VA 277 V AC |
| Maximum power consumption in W | 3.3 W power lines (AC)), 3.3 W 277 V power lines (DC)) |
| input impedance | Current (impedance <= 0.3 mOhm), Voltage (impedance > 5 MOhm) |
| Tamperproof of settings | Protected by access code |
| Display Type | 7 segments LED |
| Display colour | Red |
| Messages display capacity | 3 fields of 4 characters |
| Display digits | 12 - 0.6 in (14.2 mm) |
| Demand intervals | Configurable from 1 to 60 min |
| Information displayed | Demand current past value), Demand current present value), Demand power past value), Demand power present value), Voltage, Current, Frequency, Energy consumption, Harmonic distortion, Power factor, Active power, Apparent power, Reactive power, Unbalanced in % |
| Control type | 3 x button |
| Local signalling | Red LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh), Green LED module operation and integrated communication |
| Number of inputs | 0 |
| Number of Outputs | 0 |
| Communication port protocol | Modbus RTU 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires 2500 V |
| Communication port support | Screw terminal block RS485 |
| Data recording | Power logs, Time stamping, Energy consumption logs, Min/max for 8 parameters |
| Function Available | Real time clock |
| Sampling rate | 64 samples/cycle |
| Cybersecurity | Enable/disable communication ports |
| Communication Service | Remote monitoring |
| Product certifications | CE conforming to IEC 61010-1, CULus conforming to UL 61010-1, CULus conforming to CSA C22.2 No 61010-1, RCM, EAC, C-tick |
| Mounting Mode | Clip-on |
| Mounting position | Vertical |
| Mounting support | Framework |
| Provided equipment | 1 x Installation guide |
| Measurement category | Category III 480 V, Category II 480…600 V |
| Electrical Insulation Class | Class II, Double insulation |
| Flame retardance | V-0 conforming to UL 94 |
| Connections - terminals | Current transformer screw connection bottom) 6, Voltage inputs screw connection top) 4 |
| Material | Polycarbonate |
| Width | 3.8 in (96 mm) |
| Depth | Total : 3.00 in (76.09 mm), Embedded : 2.43 in (61.64 mm) |
| Height | 3.8 in (96 mm) |
| Net Weight | 10.6 oz (300 g) |
| Compatibility code | PM2130 |
Environment 9
| Service Life | 7 year(s) |
|---|---|
| IP degree of protection | IP54 front: conforming to IEC 60529, IP30 body: conforming to IEC 60529 |
| Relative humidity | 5…95 % 122 °F (50 °C) |
| Pollution degree | 2 |
| Ambient air temperature for operation | 14…140 °F (-10…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4, Surge immunity test conforming to IEC 61000-4-5, Conducted RF disturbances conforming to IEC 61000-4-6, Magnetic field at power frequency conforming to IEC 61000-4-8, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11, Emission tests conforming to FCC Part 15 class A |
| Overvoltage category | III |
Show all 76 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | METSEPM2130 |
|---|---|
| Type designation | PM2130 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480800153 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | IN |
|---|---|
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for METSEPM2130
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
- EAC
Quick answers
Questions about the PM2130
What is the rated current of PM2130?
The rated current of PM2130 is 5 A.
Which supply voltage is PM2130 rated for?
The rated operational voltage of PM2130 is 480 V AC.
What is the HS code of PM2130 for customs?
The tariff (HS) code on file for PM2130 is 902830.
What is the EAN of PM2130?
The EAN (GTIN) of PM2130 is 3606480800153.
Where does PM2130 ship from, and how fast?
PM2130 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
