- Part number
- METSEPM2110
- Model no
- PM2110
Description
About the PM2110
About the PM2110

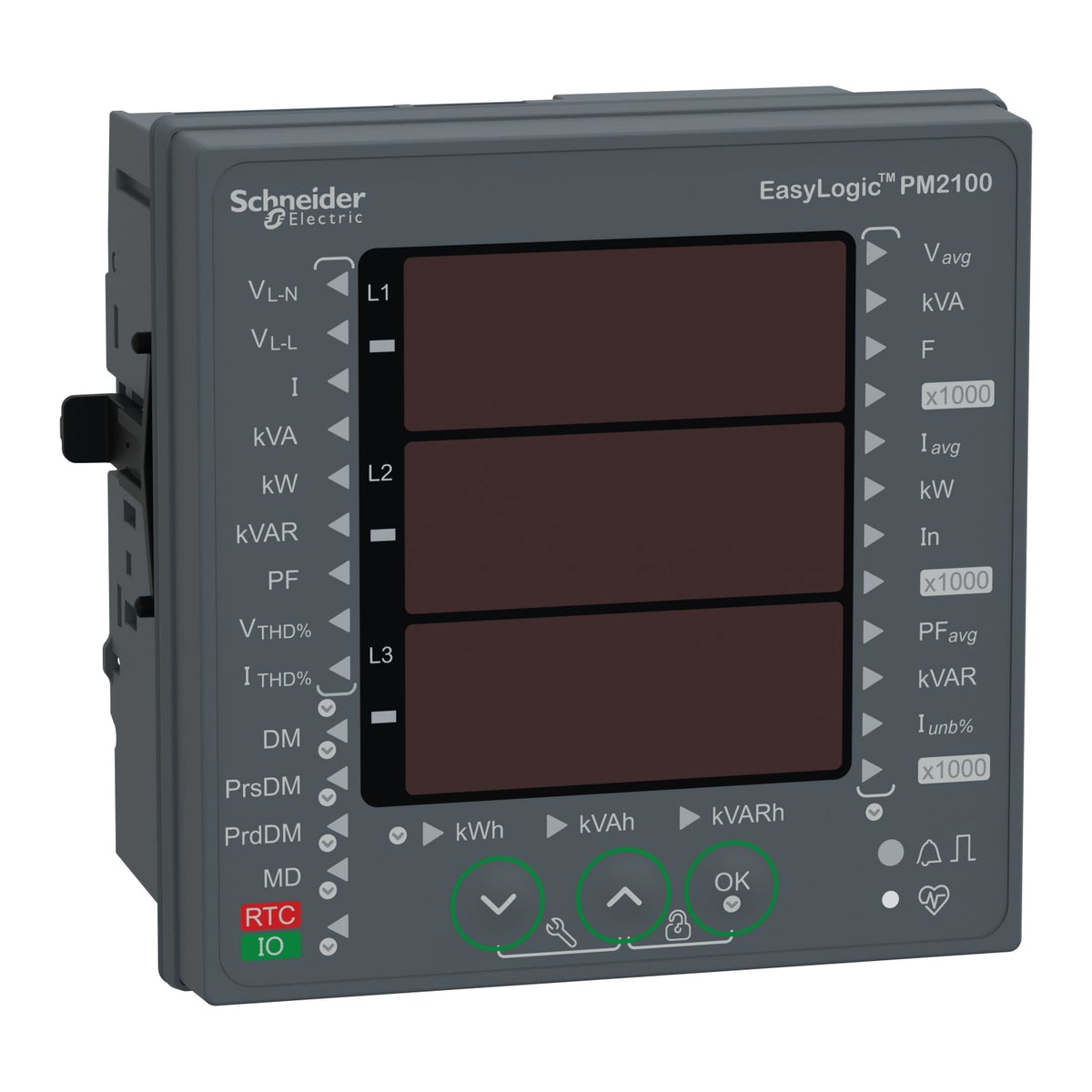

The Schneider Electric METSEPM2110 is an EasyLogic PM2110 power and energy meter, measuring active, reactive, and apparent power and energy with Class 1 accuracy to IEC 62053-21. It reads voltage, current, frequency, power factor, and per-phase total harmonic distortion on a 96 x 96 mm bezel with a 3-row red LED display, and outputs one configurable energy pulse.
Certifications & Standards
- CE
- cULus
- RCM
- EAC
Selection Notes
The METSEPM2110 is the entry point of the PM2100 line, giving Class 1 metering with a pulse output but no communication port, so it fits a local sub-metering point that will be read manually or counted through the pulse line. Once a Modbus link to a BMS or SCADA system is needed, the METSEPM2120 adds RS485 in the same body without changing the accuracy class.
Specification
Full specification
Main 4
| Range | EasyLogic |
|---|---|
| Product name | EasyLogic PM2100 |
| Product or Component Type | Power meter |
| Device short name | PM2110 |
Complementary 48
| Device Application | Power monitoring, Sub billing |
|---|---|
| Power quality analysis | total harmonic distortion |
| Type of measurement | Total current harmonic distortion THD (I) per phase, Total voltage harmonic distortion THD (U) per phase, Apparent energy total, Active and reactive energy total, Apparent power total, Active and reactive power total, Current average, Voltage average, Frequency average, Power factor average |
| Metering type | Peak demand power PM, QM, SM, Apparent power S, S1, S2, S3, Current I, I1, I2, I3, Reactive power Q, Q1, Q2, Q3, Calculated neutral current, Voltage U, U21, U32, U13, V, V1, V2, V3, Peak demand currents, Unbalance current, Demand power P, Q, S, Active power P, P1, P2, P3, Active, reactive, apparent energy (signed, four quadrant) |
| Accuracy class | Class 1 active energy IEC 62053-21, Class 1 reactive energy IEC 62053-24 |
| Measurement accuracy | Apparent power +/- 1 %, Active energy +/- 1 %, Reactive energy +/- 1 %, Active power +/- 1 %, Voltage +/- 0.5 %, Power factor +/- 0.01, Current +/- 0.5 %, Frequency +/- 0.05 % |
| Measurement current | 5…6000 mA |
| Measurement voltage | 35…480 V AC 50/60 Hz between phases, 20…277 V AC 50/60 Hz between phase and neutral, 480…999000 V AC 50/60 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| [Us] rated supply voltage | 44...277 V AC 45...65 Hz +/- 10 %, 44...277 V DC +/- 10 % |
| Network Frequency | 60 Hz, 50 Hz |
| Ride-through time | 100 ms 120 V AC typical, 400 ms 230 V AC typical, 50 ms 125 V DC typical |
| Line Rated Current | 5 A, 1 A |
| Maximum power consumption in VA | 6 VA 277 V AC |
| Maximum power consumption in W | 3.3 W power lines (AC)), 2 W 277 V power lines (DC)) |
| input impedance | Current (impedance <= 0.3 mOhm), Voltage (impedance > 5 MOhm) |
| Tamperproof of settings | Protected by access code |
| Display Type | 7 segments LED |
| Display colour | Red |
| Messages display capacity | 3 fields of 4 characters |
| Display digits | 12 - 0.6 in (14.2 mm) |
| Demand intervals | Configurable from 1 to 60 min |
| Information displayed | Demand current past value), Demand current present value), Demand power past value), Demand power present value), Voltage, Current, Frequency, Energy consumption, Harmonic distortion, Power factor, Active power, Apparent power, Reactive power, Unbalanced in % |
| Control type | 3 x button |
| Local signalling | Red LED output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh), Green LED module operating (RUN) |
| Number of inputs | 0 |
| Number of Outputs | 1 pulse |
| POP parameter | 20 ms 5...40 V DC, 20 mA 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) |
| Impulse duration | 20 ms |
| Communication port protocol | POP |
| Sampling rate | 64 samples/cycle |
| Cybersecurity | Enable/disable communication ports |
| Communication Service | Remote monitoring |
| Product certifications | CE conforming to IEC 61010-1, CULus conforming to UL 61010-1, CULus conforming to CSA C22.2 No 61010-1, RCM, EAC, C-tick |
| Mounting Mode | Clip-on |
| Mounting position | Vertical |
| Mounting support | Framework |
| Provided equipment | 1 x Installation guide |
| Measurement category | Category III 480 V, Category II 480…600 V |
| Electrical Insulation Class | Double insulation, Class II |
| Flame retardance | V-0 conforming to UL 94 |
| Connections - terminals | Current transformer screw connection bottom) 6, Voltage inputs screw connection top) 4 |
| Material | Polycarbonate |
| Width | 3.8 in (96 mm) |
| Depth | Total : 3.00 in (76.09 mm), Embedded : 2.43 in (61.64 mm) |
| Height | 3.8 in (96 mm) |
| Net Weight | 10.6 oz (300 g) |
| Compatibility code | PM2110 |
Environment 9
| Service Life | 7 year(s) |
|---|---|
| IP degree of protection | IP54 front: conforming to IEC 60529, IP30 body: conforming to IEC 60529 |
| Relative humidity | 5…95 % 122 °F (50 °C) |
| Pollution degree | 2 |
| Ambient air temperature for operation | 14…140 °F (-10…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4, Surge immunity test conforming to IEC 61000-4-5, Conducted RF disturbances conforming to IEC 61000-4-6, Magnetic field at power frequency conforming to IEC 61000-4-8, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11, Emission tests conforming to FCC Part 15 class A |
| Overvoltage category | III |
Show all 75 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | METSEPM2110 |
|---|---|
| Type designation | PM2110 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480800139 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | IN |
|---|---|
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for METSEPM2110
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
- EAC
Quick answers
Questions about the PM2110
What is the rated current of PM2110?
The rated current of PM2110 is 5 A.
Which supply voltage is PM2110 rated for?
The rated operational voltage of PM2110 is 480 V AC.
What is the HS code of PM2110 for customs?
The tariff (HS) code on file for PM2110 is 902830.
What is the EAN of PM2110?
The EAN (GTIN) of PM2110 is 3606480800139.
Where does PM2110 ship from, and how fast?
PM2110 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
