- Part number
- METSEDM6200HCL10RS
- Model no
- DM6200H
Description
About the DM6200H
About the DM6200H

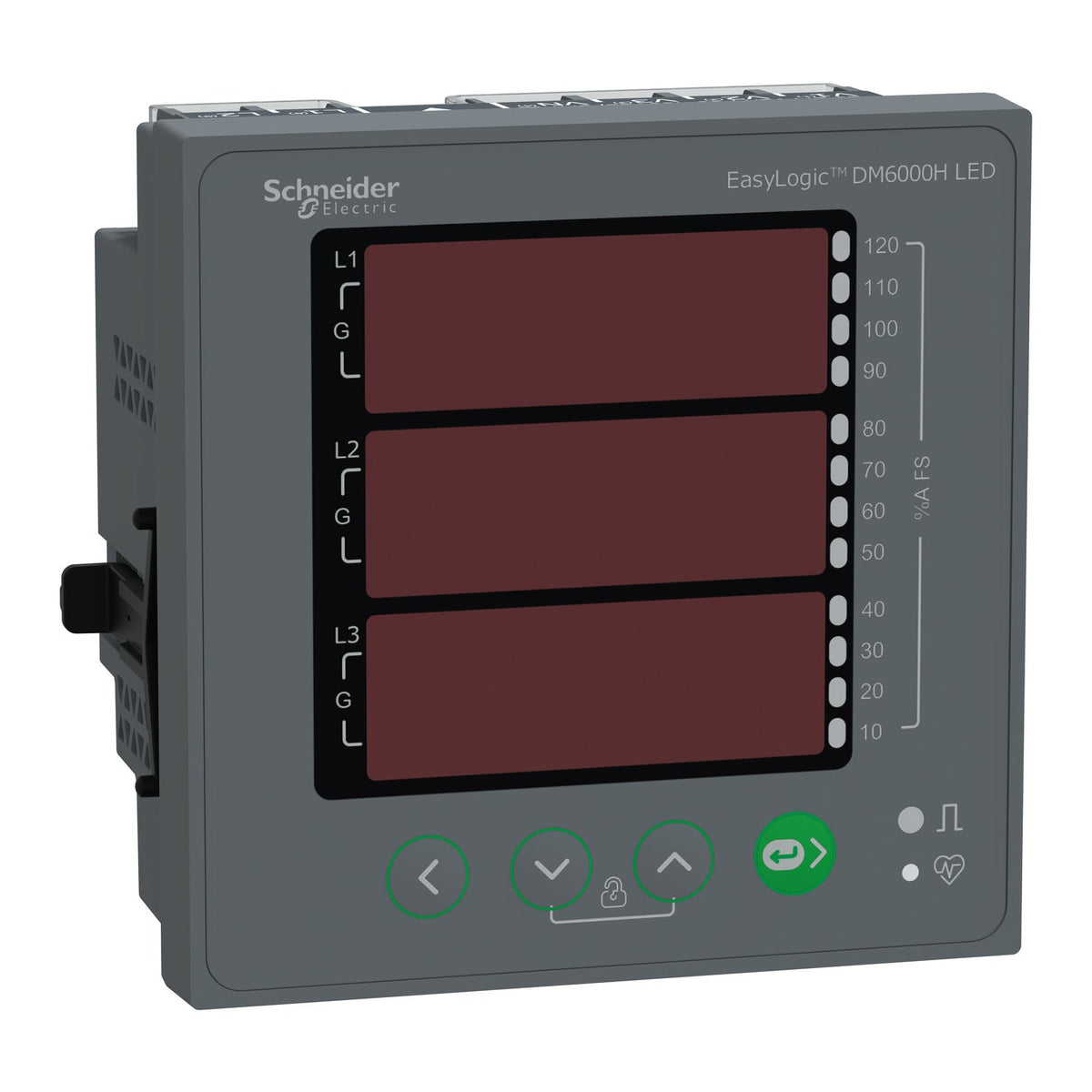

The Schneider Electric METSEDM6200HCL10RS is an EasyLogic DM6200H digital panel meter that measures voltage, current, frequency, and power factor with Class 1 active energy accuracy to IEC 62053-21. It adds an RS485 port running Modbus to the DM6X00H body, reading locally on a 96 x 96 mm bezel with an 8-segment red LED display and a tricolour load-burden bar.
Certifications & Standards
- CE
- cULus
- IEC 61010-1
- UL 61010-1
Selection Notes
The METSEDM6200HCL10RS is the communicating variant of the DM6X00H panel meter, with an RS485 Modbus port that the no-communication METSEDM6000HCL10NC does not have. Choose it whenever the reading needs to reach a SCADA or BMS point rather than only the local LED display; the measurement range, accuracy class, and mechanical footprint are otherwise identical to the NC version.
Specification
Full specification
Main 4
| Range | EasyLogic |
|---|---|
| Product name | EasyLogic DM6X00H RS |
| Device short name | DM6200H |
| Product or component type | VAF PF meter |
Complementary 45
| Device application | Remote monitoring |
|---|---|
| Type of measurement | Current, Voltage, Frequency, RPM |
| Metering type | Unbalance current, Rotation speed, Average current Iavg, Average voltage Vavg, Unbalance voltage, Phase currents, Frequency, Calculated neutral current, Voltage U21, U32, U13, V1, V2, V3 |
| Counter functions | ON hour counting, Power interruption |
| [Us] rated supply voltage | 48...277 V AC 45...65 Hz, 48...277 V DC |
| Network frequency | 60 Hz, 50 Hz |
| [In] rated current | 1 A, 5 A |
| type of network | 3P + N, 3P, 1P + N, 2P + N, 2P |
| Maximum power consumption in VA | 4 VA at 240 V between phase and neutral |
| Maximum power consumption in W | 2 W at 240 V |
| Display type | 8 segments LED |
| Display colour | Red |
| Messages display capacity | 3 fields of 4 characters |
| Display digits | 12 digit(s) - 14.2 mm in height |
| Communication of data | Instantaneous and demand values, Revolution speed, All counters, Reading of measurements |
| Tamperproof of settings | Protected by access code |
| Sampling rate | 32 samples/cycle |
| Measurement current | 5…6000 mA |
| Signal | Current 0.005...10 A (impedance 0.3 MOhm)6 x |
| Measurement voltage | 46…277 V AC 50...60 Hz between phase and neutral, 80…480 V AC 50...60 Hz between phases, 277…999000 V AC 50...60 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 2 |
| Measurement accuracy | Frequency +/- 0.05 %, Power factor +/- 0.01, Current +/- 1 %, Voltage +/- 1 % |
| Accuracy class | Class 1 |
| Demand intervals | 1 s |
| Local signalling | Green LED: activity, Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) |
| Communication port protocol | Modbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2-wire, insulation 2500 V |
| Communication port support | Screw terminal block: RS485 |
| Material | Polycarbonate |
| Flame retardance | V-0 conforming to UL 94 |
| Mounting mode | Flush-mounted |
| Mounting support | Framework |
| Installation category | III |
| Type of installation | Indoor installation |
| Measurement category | Category III 480 V |
| Electrical insulation class | Class II |
| Connections - terminals | Current circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s), Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s), Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s), Communication: screw clamp terminals (bottom) 0.33…3.31 mm² cable(s) |
| Tightening torque | Current circuit: 0.9…1 N.m Philips No 2 screwdriver, Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver, Control circuit: 0.9…1 N.m Philips No 2 screwdriver, Communication: 0.5…0.6 N.m Philips no 1 screwdriver |
| Wire stripping length | Current circuit: 3.68 mm, Voltage circuit: 7 mm, Control circuit: 7 mm, Communication: 7 mm |
| Standards | IEC 61010-1:ed. 3, UL 61010-1:ed. 3 |
| Product certifications | CE conforming to IEC 61010-1, CULus conforming to UL 61010-1, CULus conforming to CSA C22.2 No 61010-1, C-Tick |
| Width | 96 mm |
| Depth | Outside : 13 mm, Panel : 49 mm |
| Height | 96 mm |
| Net weight | 300 g |
Environment 9
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test conforming to IEC 61000-4-4, Surge immunity test conforming to IEC 61000-4-5, Conducted RF disturbances conforming to IEC 61000-4-6, Magnetic field at power frequency conforming to IEC 61000-4-8, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11, Emission tests conforming to FCC part 15 class A, Emission tests conforming to FCC part 15 Subpart C, Emission tests conforming to FCC part 15 Subpart E |
|---|---|
| Overvoltage category | III |
| IP degree of protection | IP51 front: conforming to IEC 60529, IP30 body: conforming to IEC 60529 |
| Relative humidity | 5…95 % at 50 °C |
| Pollution degree | 2 |
| Ambient air temperature for operation | -10…60 °C |
| Ambient air temperature for storage | -20…70 °C |
| Operating altitude | <= 2000 m |
| service life | 7 year(s) |
Show all 82 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | METSEDM6200HCL10RS |
|---|---|
| Type designation | DM6200H |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.600 cm |
| Package 1 Width | 8.700 cm |
| Package 1 Length | 10.200 cm |
| Package 1 Weight | 347.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.871 kg |
| Shipping weight | 0.3 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
