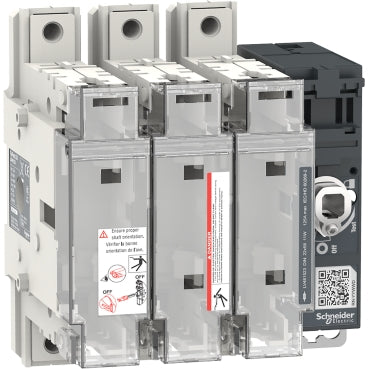

Schneider Electric LV481523 FuPacT GSC125 3P 125 A NFC 22x58mm Fuse Switch Disconnector

The Schneider Electric LV481523 FuPacT GSC125 is a 3-pole switch disconnector fuse rated 125 A at up to 690 V AC, built for front or right-side handle control. It takes NFC cylindrical fuse links sized 22 x 58 mm and protects distribution circuits in buildings, infrastructure and industrial plants against short-circuits and overloads, with an 80 kA breaking capacity with fuses at 415 V.

Technical Specifications

Certifications & Standards

• CE
• CCC
• EAC
• EN/IEC 60947-1
• EN/IEC 60947-3

Selection Notes

The GSC125 shares the GSD125's 125 A rating, 148 x 162 x 116 mm housing and handle options but is built for NFC cylindrical 22 x 58 mm fuse links rather than DIN NH00 blade fuses; pick the GSC125 where the installation standardises on cylindrical fuses, and the GSD125 where DIN blade fuses are the local stock item. Its breaking capacity with fuses is 80 kA at 415 V, rising to 100 kA at 690 V, the reverse pattern of the DIN-fuse GSD125, which reflects the different fuse link's interrupting characteristic.
