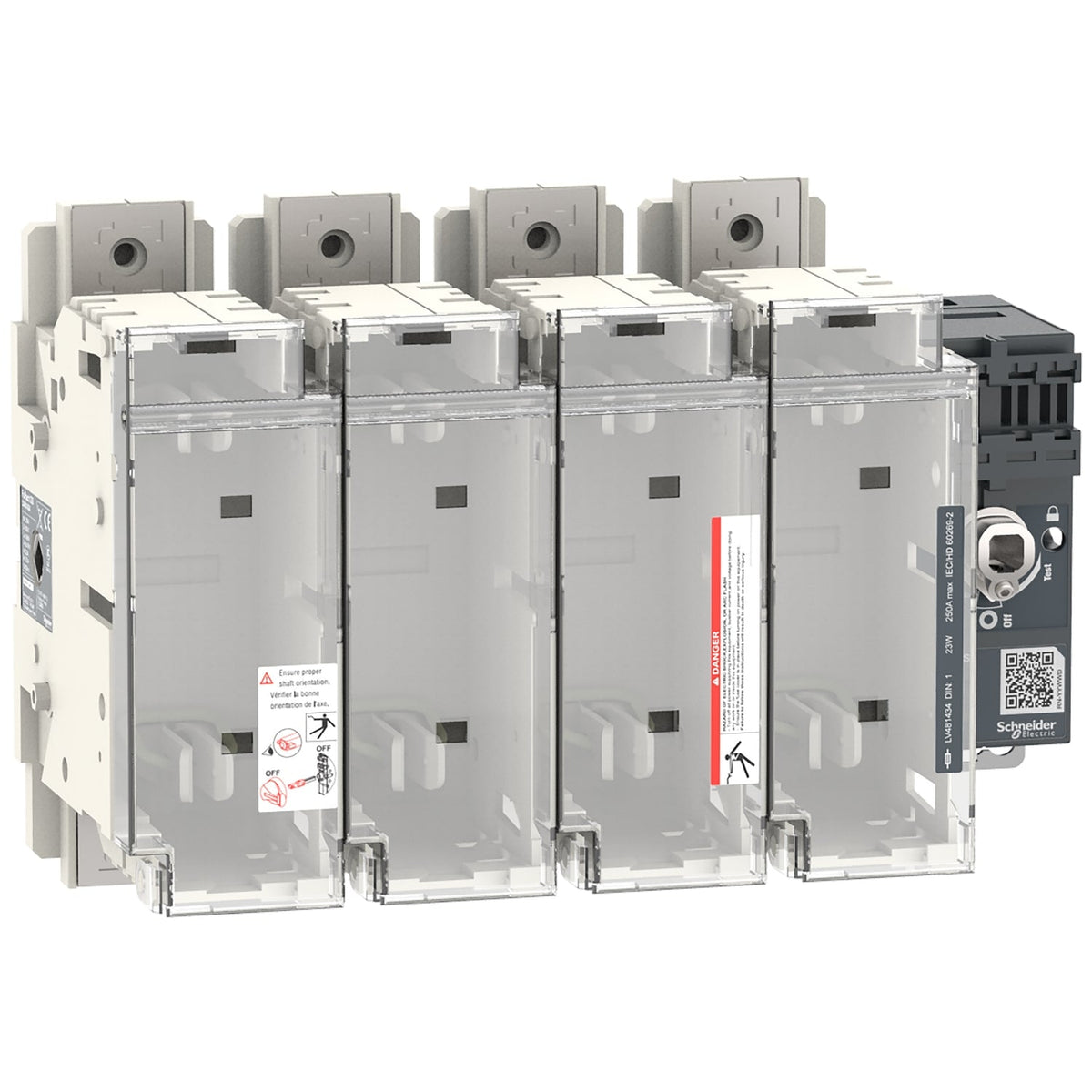

Schneider Electric LV481434 FuPacT GSD250 4P 250 A NH1 Fuse Switch Disconnector

FuPacT GSD250 switch disconnector fuse, 4P, 250 A, 690 V AC, DIN NH1.

Rated current
250 A
Rated operational voltage
690 V AC
Description

About the GSD250

The Schneider Electric LV481434 FuPacT GSD250 is a 4-pole switch disconnector fuse rated 250 A at up to 690 V AC, built for front or right-side handle control. It takes DIN NH1 fuses and protects distribution circuits in buildings, infrastructure and industrial plants against short-circuits and overloads, with an 80 kA breaking capacity with fuses at 415 V.

Certifications & Standards

  • CE
  • CCC
  • EAC
  • EN/IEC 60947-1
  • EN/IEC 60947-3

Selection Notes

The GSD250 4P adds a fourth switched pole and internal neutral links to the 3-pole GSD250, for circuits needing a switched rather than solid neutral; it shares the 3-pole version's 250 A rating, NH1 fuse size and 80 kA/415 V breaking capacity, in a 294 mm wide housing. Choose the 3-pole variant where the neutral does not need to be switched. The front or external right-side handle options carry over unchanged from the 3-pole frame.

Specification

Full specification

68 values · Last verified 30 Oct 2026

Main 19

Range FuPacT
Product name FuPacT GS
Device short name GSD250
Product or component type Switch-disconnector-fuse
Device application Equipment protection, monitoring and control, Distribution
Poles description 4P
Number of fuse carriers 4
Fuse type DIN
Fuse size NH1
Suitability for isolation Yes conforming to EN/IEC 60947-3
Visible break No
Contact position indicator Yes
[Ith] conventional free air thermal current 250 A ( 35 °C ) power dissipation per fuse: 23 W
[Ithe] conventional enclosed thermal current 250 A at 35 °C, Power dissipation per fuse: 23 W
Maximum power dissipation per pole 19 W
[Ue] rated operational voltage 690 V AC 50/60 Hz, 800 V AC 50/60 Hz AC-20
[Ui] rated insulation voltage 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 8 kV
[Ie] rated operational current AC-22A: 250 A at 220/240 V AC 50/60 Hz, AC-23A: 250 A at 220/240 V AC 50/60 Hz, AC-22B: 250 A at 220/240 V AC 50/60 Hz, AC-23B: 250 A at 220/240 V AC 50/60 Hz, AC-22A: 250 A at 380/415 V AC 50/60 Hz, AC-23A: 250 A at 380/415 V AC 50/60 Hz, AC-22B: 250 A at 380/415 V AC 50/60 Hz, AC-23B: 250 A at 380/415 V AC 50/60 Hz, AC-22A: 250 A at 660/690 V AC 50/60 Hz, AC-23A: 250 A at 660/690 V AC 50/60 Hz, AC-22B: 250 A at 660/690 V AC 50/60 Hz, AC-23B: 250 A at 660/690 V AC 50/60 Hz

Complementary 18

[Iq] Breaking capacity with fuses (kA RMS) 80 kA at 415 V (AC), 50 kA at 690 V (AC)
Rated operational power in W 132 kW at 380/400 V, 220 kW at 660/690 V
Contacts type and composition 4 NO
Type of operating handle Direct frontal, External frontal, External right side
Provision for padlocking 3 padlocks
Mounting position Vertical
Mounting mode Fixed
Mounting support Backplate
Mechanical durability 10000 cycles
Electrical durability AC-22A: 1000 cycles 415 V AC 50/60 Hz, AC-23A: 1000 cycles 415 V AC 50/60 Hz, AC-22A: 1000 cycles 690 V AC 50/60 Hz, AC-23A: 1000 cycles 690 V AC 50/60 Hz
Connections - terminals Power circuit: bare cable connectors 32 mm², Power circuit: lugs-ring terminals 95…240 mm²
Tightening torque Power circuit: 25 N.m
Width 294 mm
Height 195 mm
Depth 146 mm
Net weight 4.2 kg
Standards EN/IEC 60947-1, EN/IEC 60947-3
Product certifications CE, CCC, EAC

Environment 7

Electrical shock protection class Class II front face
IP degree of protection IP20 conforming to IEC 60529 (with terminal cover)
IK degree of protection IK07 conforming to EN 50102
Pollution degree 3 conforming to IEC 60947
Ambient air temperature for operation -20…70 °C
Ambient air temperature for storage -40…80 °C
Flame resistance 850 °C fuse cover conforming to IEC 60695-2-1, 960 °C body conforming to IEC 60695-2-1
Show all 68 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number LV481434
Type designation GSD250
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 20.000 cm
Package 1 Width 21.000 cm
Package 1 Length 34.000 cm
Package 1 Weight 4.552 kg
Unit Type of Package 2 S06
Number of Units in Package 2 10
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 55.390 kg
Shipping weight 4.2 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
