Schneider Electric GS2AH550 TeSys GS External Rotary Handle 630-800 A IP65 Fuse Switch Disconnector

Name: Schneider Electric GS2AH550 TeSys GS External Rotary Handle 630-800 A IP65 Fuse Switch Disconnector
Brand: Schneider Electric
SKU: GS2AH550
Price: 136.33 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: GS2AH550

Catalog No: GS2AH550

Series: TeSys

Tariff Code (HS): 853610

Rated Current: 630-800 A

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$136.33

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

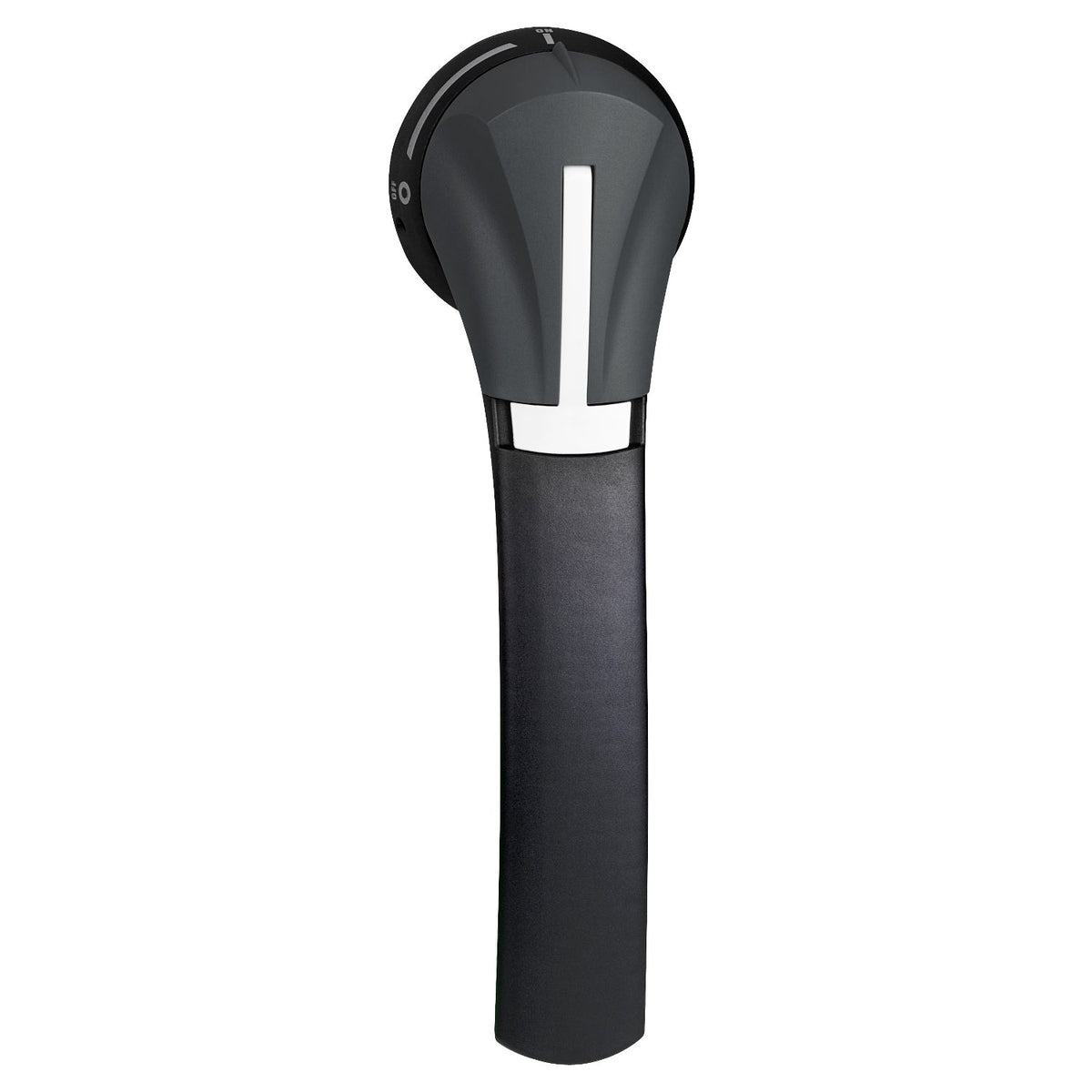

The Schneider Electric GS2AH550 is an external rotary operating handle for TeSys GS fuse switch-disconnectors rated 630-800 A, built for front-door mounting on 630-800 A IEC devices such as GS2S, GS2SB, GS2T and GS2TB. The black handle sits on a grey front plate, gives IP65 protection to the enclosure, and offers 2-position (O-I) padlockable operation. A separately ordered GS2AE shaft connects the handle to the switch.

Technical Specifications

Reference	GS2AH550
Brand	Schneider Electric
Range	TeSys GS
Device Short Name	GS2AH
Product or Component Type	Rotary handle
Range Compatibility	TeSys GS GS2S, GS2T; FuPact GS GSB630, GSD630, GSB800, GSD800
Type of Operating Handle	External frontal
Handle Colour	Black
Handle Front Plate Colour	Grey
Handle Positions	O-I
Padlocking	Padlockable
Switch Rated Current	630 A \| 800 A
IP Degree of Protection	IP65
Net Weight	0.28 kg
Units per Package	1 (inner) / 10 (outer)

Certifications & Standards

Selection Notes

Choose the GS2AH550 for the 630-800 A frame; a longer-shaft version of this same handle serves the 1250 A frame, and a variant with an added Test position covers the 100-400 A frame for off-load circuit testing. Order the GS2AE connecting shaft separately to match the enclosure depth.

Technical Details

Short Description

External rotary handle for TeSys GS 630-800 A fuse switch-disconnectors, IP65

Rated Current (Ampere)

630-800 A

Mounting Type

Door/front mounting

Protection Type

IP65

Catalog No

GS2AH550

Delivery Date (Days)

30 days

Model Number

GS2AH550

Tariff Code

853610
