- Part number
- GS2AH570
- Model no
- GS2AH
Description
About the GS2AH
About the GS2AH

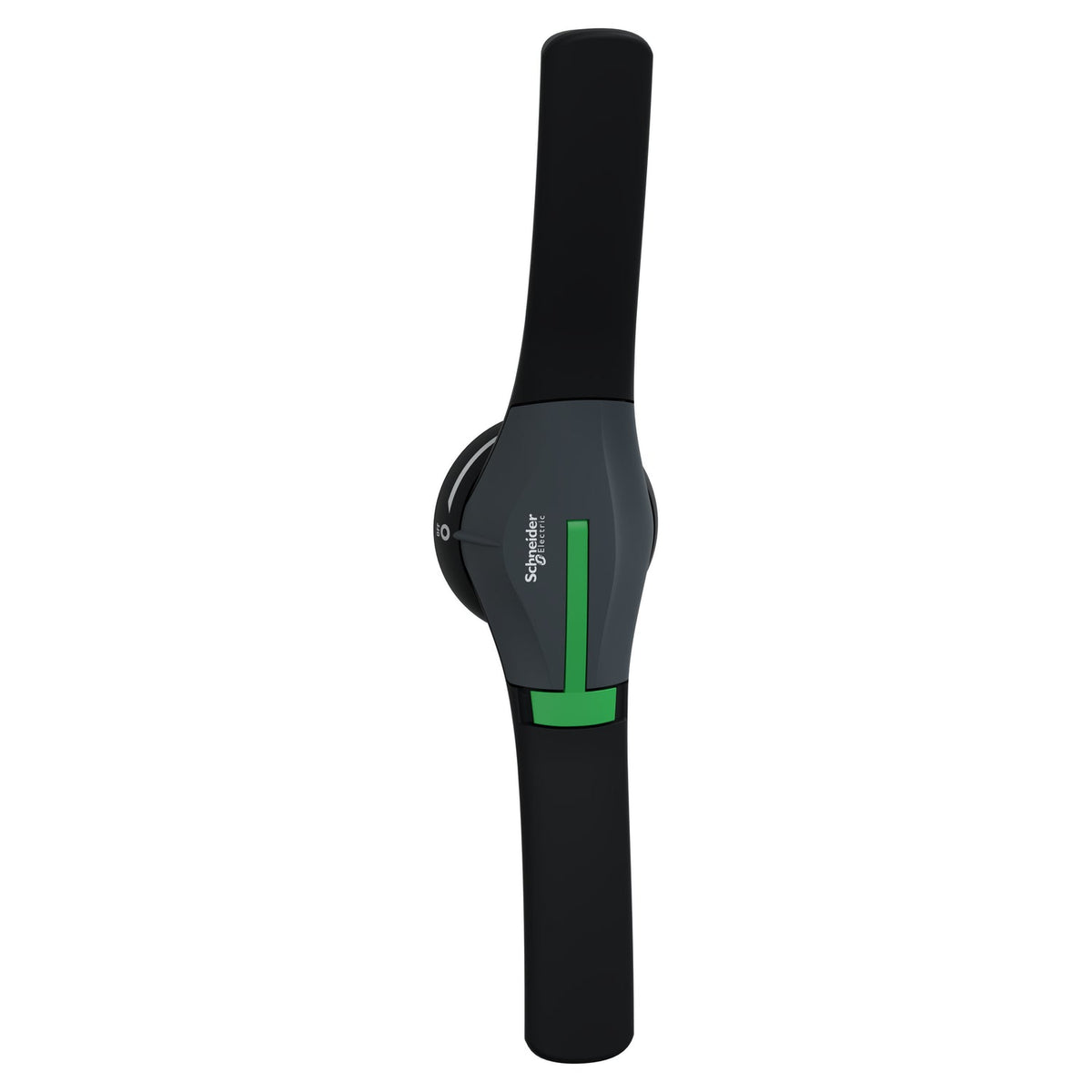

The Schneider Electric GS2AH570 is an external rotary operating handle for TeSys GS fuse switch-disconnectors rated 1250 A, sized for 3-pole and 4-pole GS2V and GS2VB devices. The black handle sits on a grey front plate, gives IP65 protection on the enclosure door, and offers 2-position (O-I) padlockable operation for front-side control. A separately ordered GS2AE shaft connects the handle to the switch body.
Certifications & Standards
- IEC
Selection Notes
Choose the GS2AH570 for the 1250 A frame; the equivalent handle for the 630-800 A frame uses a shorter shaft, and frames down to 100-400 A take a variant with an added Test position for off-load circuit testing. Order the GS2AE connecting shaft separately to match the enclosure depth.
Specification
Full specification
Main 8
| Range of product | TeSys |
|---|---|
| Range | TeSys |
| Device short name | GS2AH |
| Product or component type | Rotary handle |
| Range compatibility | TeSys TeSys GS GS2V fuse-switch disconnector, FuPact FuPacT GS GSB1250, FuPact FuPacT GS GSD1250 |
| Type of operating handle | External frontal |
| Handle colour | Black |
| Handle front plate colour | Grey |
Complementary 5
| Handle positions | O-I |
|---|---|
| Rotary handle padlocking | With |
| Switch rated current | 1250 A |
| Standards | IEC |
| Net weight | 0.39 kg |
Environment 1
| IP degree of protection | IP65 |
|---|
Show all 38 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | GS2AH570 |
|---|---|
| Type designation | GS2AH |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.000 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 38.000 cm |
| Package 1 Weight | 343.900 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.578 kg |
| Shipping weight | 0.39 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
